Haier HLP0001AXW Installation Instructions Manual

Dryer stack stand kit
Hide thumbs

Advertisement

Quick Links

Installation Instructions
FR)Installation Instructions
SP)Installation Instructions
HLP0001AXW

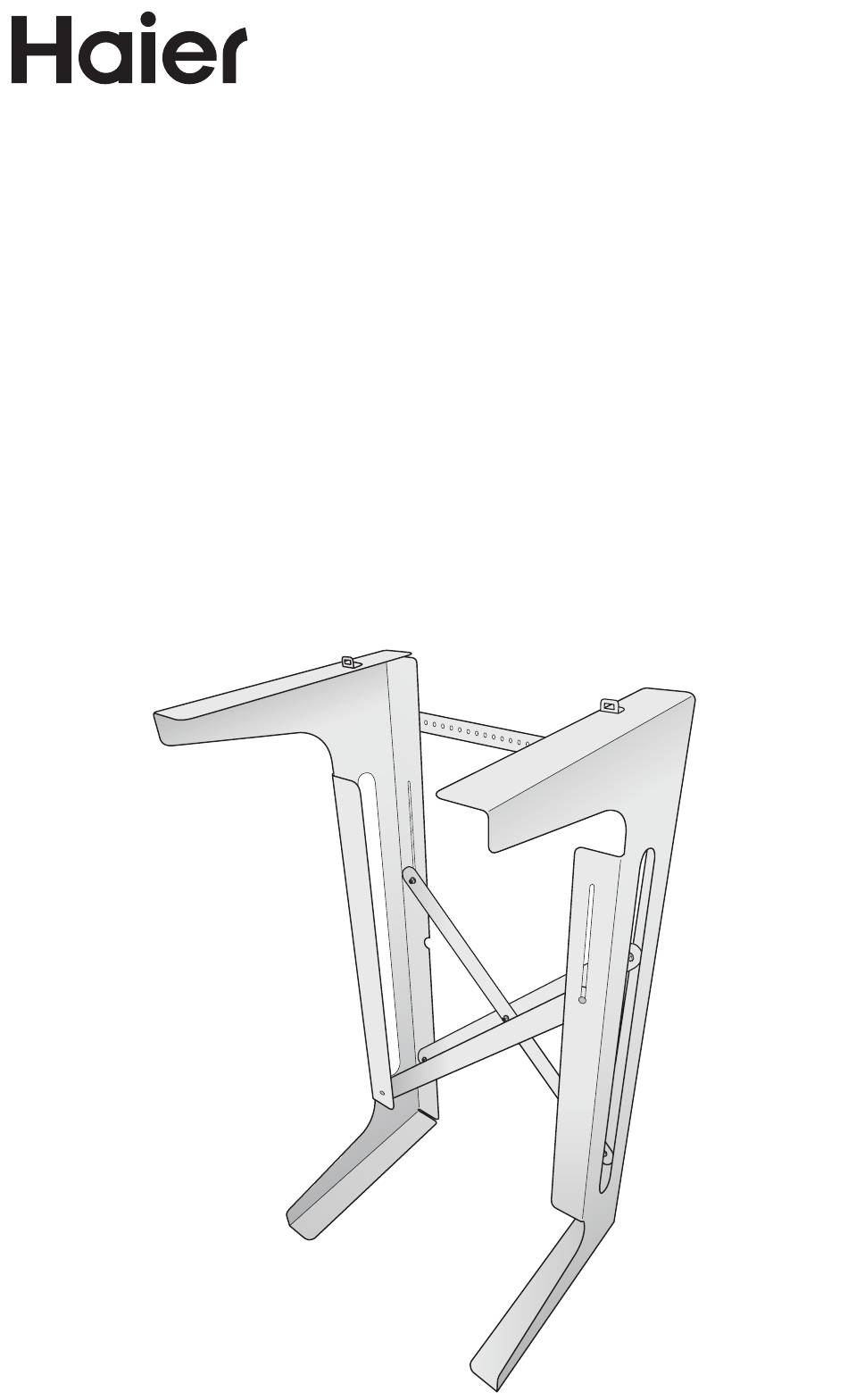

Dryer Stack Stand Kit
For use with compact models:
HLP141E Dryer, HLP28E Washer, HLP21 Washer
FR)Dryer Stack Stand Kit
FR)For use with compact models:
HLP141E Dryer, HLP28E Washer, HLP21 Washer
SP)Dryer Stack Stand Kit
SP)For use with compact models:
HLP141E Dryer, HLP28E Washer, HLP21 Washer
