Summary of Contents for Tricity Bendix SB 200
-

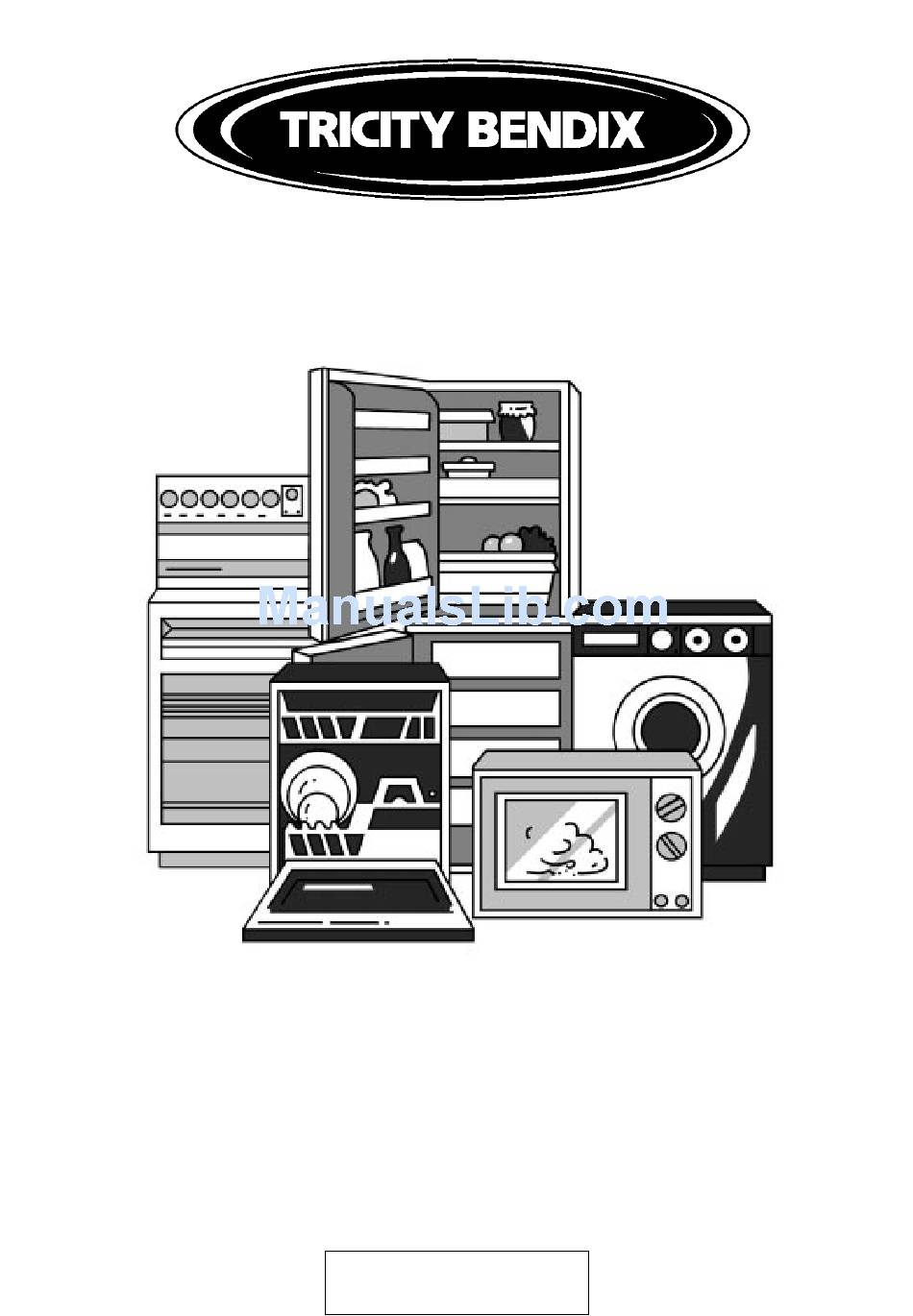

Page 1: Operating And Installation Instructions
OPERATING AND INSTALLATION INSTRUCTIONS MODEL NO. SB 200... -
Page 2: Technical Details
TECHNICAL DETAILS MODEL NO. SB 200 Voltage: 230/240 Volts AC 50Hz Wattage: 9.8/10.7kW Height: 1240mm Width: 460mm Depth: 585mm Weight: 51.4kg This appliance complies with: European Council Directive 73/23/EEC. EMC Directive 89/336/EEC. CE Marking Directive 93/68/EEC. -
Page 3: Table Of Contents
CONTENTS Technical Details ................. 2 Contents . -
Page 4: Preface
They have been approved by BEAB (British Electrotechnical Approvals Board) and are covered by a 12 month parts and labour guarantee. To get the best from your new Tricity Bendix cooker, we ask that you PLEASE READ THESE INSTRUCTIONS CAREFULLY. Particular attention should be made to cooking times and temperatures which may differ from your previous cooker. -
Page 5: Safety
SAFETY THESE WARNINGS ARE PROVIDED IN THE INTERESTS OF YOUR SAFETY. ENSURE THAT THEM ALL BEFORE INSTALLING OR USING THE COOKER. PLEASE READ CAREFULLY BEFORE INSTALLATION This cooker is heavy and care must be taken when moving it. Ensure that all packaging, both inside and outside the cooker has been removed before the cooker is used. -
Page 6: After Use
Take care to follow the recommendations given for tending the food when grilling. Do not leave the grill pan handle in position when grilling as it will become hot. Always use oven gloves to withdraw the grill pan, when grilling. Follow the recommendations on page 12. -
Page 7: Introduction
INTRODUCTION WARNING: THIS COOKER MUST BE EARTHED RATING PLATE Record the model, product and serial numbers on the back cover of this instruction book from the rating plate. This is situated on the lower front frame of the cooker and can be seen upon opening the oven door. -
Page 8: Reversible Oven Door
REVERSIBLE OVEN DOOR If you require the oven door to be hinged on the opposite side, you will need to contact a qualified Service Engineer. See page 21 for your nearest Service Centre. PLEASE NOTE that a charge will be made. -
Page 9: Getting To Know Your Cooker
GETTING TO KNOW YOUR COOKER THE CONTROL PANEL FEATURES Hotplate Controls Grill Control Oven Indicator Neon Oven Temperature Control... -
Page 10: The Radiant Hob
THE RADIANT HOB USING THE HOB To operate the hotplates, turn the control knobs clockwise from the OFF position to the required setting. The highest number represents the hottest setting and the lowest number the coolest setting. Choose a setting appropriate to the quantity and type of food to be cooked. -
Page 11: Preserving
1. Preparing the food. Seal the food by coating with flour, egg and breadcrumbs or batter. Do not use a basket with batter coated foods as they will stick. 2. Amount of oil. For safety purposes fill the pan only one-third full of oil. -
Page 12: The Grill
THE GRILL CAUTION - ACCESSIBLE PARTS MAY BECOME HOT WHEN THE GRILL IS IN USE. CHILDREN SHOULD BE KEPT AWAY. To operate the grill, turn the grill control clockwise from the 'OFF' position to the required setting. The highest number represents the hottest setting and the lowest the coolest setting. -
Page 13: Grilling Chart
Adjust the height of the grilling grid and grill pan runner position to allow for different foods. When toasting bread use the top runner position. Adjust the grill pan grid to suit. Accompaniments such mushrooms may be placed underneath the grid when grilling meats. -
Page 14: The Oven
THE OVEN To operate the oven turn the oven temperature control to the required temperature. THINGS TO NOTE The oven indicator neon will glow until the oven has reached the required temperature and then go out. It will cycle ON and OFF periodically during cooking showing that the temperature is being maintained. -
Page 15: Oven Cooking Chart
OVEN COOKING CHART The oven temperatures are intended as a guide only. It may be necessary to increase or decrease the temperature by 10°C to suit individual preferences and requirements. Shelf positions are counted from the bottom of the oven. FOOD Biscuits Flapjacks... -
Page 16: Roasting Chart
ROASTING CHART The oven temperatures are intended as a guide only. It may be necessary to increase or decrease the temperatures by 10° C to suit individual preferences and requirements. MEAT Beef Beef, boned Mutton and Lamb Pork and veal Chicken Turkey and goose Duck... -
Page 17: Care And Cleaning
CARE AND CLEANING ALWAYS SWITCH OFF THE SUPPLY BEFORE CLEANING CLEANING MATERIALS Before using any cleaning materials on your cooker, check that they are suitable and that their use is recommended by the manufacturer. CLEANING THE OUTSIDE OF THE COOKER DO NOT use abrasive cleaning materials, or scourers on the outside of the cooker as some of the finishes are painted and damage may occur. -
Page 18: Hints And Tips
HINTS AND TIPS Manual cleaning of the Stayclean linings is not recommended. Damage will occur if abrasives or aerosol sprays of any kind are used. Slight discolouration Stayclean surfaces may occur in time. This does not affect the Stayclean properties in any way. A good time to allow the oven to run on is after the weekly roast. -
Page 19: Something Not Working
SOMETHING NOT WORKING? We strongly recommend that you carry out the following checks on your cooker before calling a Service Engineer. It may be that the problem is a simple one which you can solve yourself without the expense of a Service call. If our Service Engineer finds that the problem is listed below you will be charged for the call whether or not the cooker is under guarantee. -
Page 20: Service And Spare Parts
Dublin 12 Telephone: 01 4090752 CUSTOMER CARE DEPARTMENT For general enquiries concerning your Tricity Bendix appliance, or further information on Tricity Bendix products, you are invited to contact our Customer Care Department by letter or telephone as follows: Customer Care Department... -
Page 21: Tricity Bendix Service Force
TRICITY BENDIX SERVICE FORCE 0870 5 929929 To contact your local Tricity Bendix Service Centre telephone CHANNEL ISLANDS NORTH EAST SCOTLAND NORTHERN IRELAND NORTH WEST WALES... - Page 22 TRICITY BENDIX SERVICE FORCE 0870 5 929929 To contact your local Tricity Bendix Service Centre telephone MIDLANDS LONDON & EAST ANGLIA SOUTH EAST SOUTH WEST & SB 200 - 311286209...
-
Page 23: Guarantee Conditions
Standard guarantee conditions We, Tricity Bendix, undertake that if within 12 months of the date of the purchase this Tricity Bendix appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that: The appliance has been correctly installed and used only on the electricity supply stated on the rating plate. -
Page 24: Date Of Purchase
This handbook is accurate at the date of printing, but will be superseded and should be disregarded if specifications or appearance are changed. TRICITY BENDIX,55 - 77 HIGH STREET, SLOUGH, BERKSHIRE, SL1 1DZ TELEPHONE 0870 5 950950 MODEL NO.
