GSS SID 160 Assembly Instruction Manual

Advertisement

Quick Links

SID 160

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SID 160 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for GSS SID 160

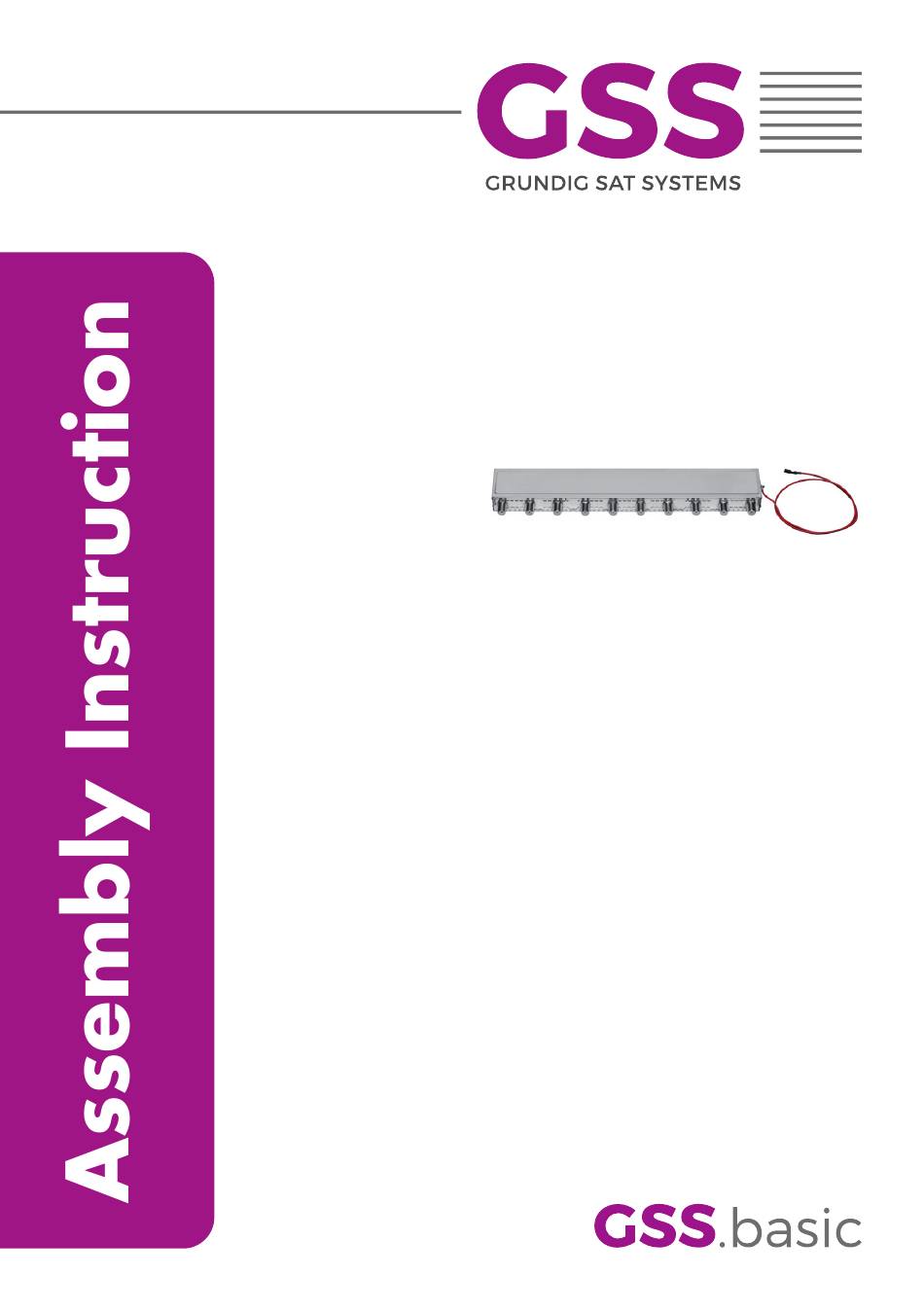

  • Page 1 SID 160...
  • Page 2 n h a l t S v e r z e i c h n i S 1 Safety regulations ....................2 2 General information ..................3 Scope of delivery ................3 Meaning of the symbols used ............... 3 Technical data..................3 Description ..................
  • Page 3 The SAT IF input distributor SID 160 is equipped with one SAT IF input and 9 SAT IF outputs. It is intended for distributing SAT IF signals in the head-end sta- tion.
  • Page 4 v e r v i e w Power connection SAT IF input SAT IF outputs Sat if n S t a l l i n g t h e i n p u t d i S t r i b u t o r Before installing or changing a module or accessory, switch off the head- end station or unplug the power cable from the mains power socket.
  • Page 5 • Fasten the outer sockets of each SAT IF input distributor with two nuts each and lock washers put under (example with 2 SAT IF input distributors). Tighten the nuts until the teeth on the lock washers have penetrated the exte- rior coating and a good connection is made between the housing and the SAT IF input distributor. • For LNB power supply connect plug of the cable to one of the con- tacts “LNB power supply”...
  • Page 6 CE - Declaration of Conformity GSS Grundig SAT Systems GmbH • Beuthener Straße 43 • D-90471 Nuremberg Phone: +49 (0) 911 / 703 8877 • Fax: +49 (0) 911 / 703 9210 www.gss.de/en • info@gss.de Service: Phone: +49 (0) 911/703 2221; Fax: +49 (0) 911/703 2326; service@gss.de Alterations reserved.
