- Page 1 FES LCD Display Version 1.11 LZ design d.o.o., • Brod 3D, 1370 Logatec, Slovenia • tel +386 59 948 898 • info@lzdesign.si www.front-electric-sustainer.com...
- Page 2 FES LCD Display manual, Version 1.11 September 2019 Table of Content 1. Important notices ..................... 3 1.1 Limited Warranty ....................3 2. Packing list ......................4 3. General ........................4 4. System description ....................5 5. Connections ......................8 6. Repair and service ....................8 7.
- Page 3 LZ design retains the exclusive right to repair or replace the unit or software, or to offer a full refund of the purchase price, at its sole discretion. SUCH REMEDY SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY FOR ANY BREACH OF WARRANTY.

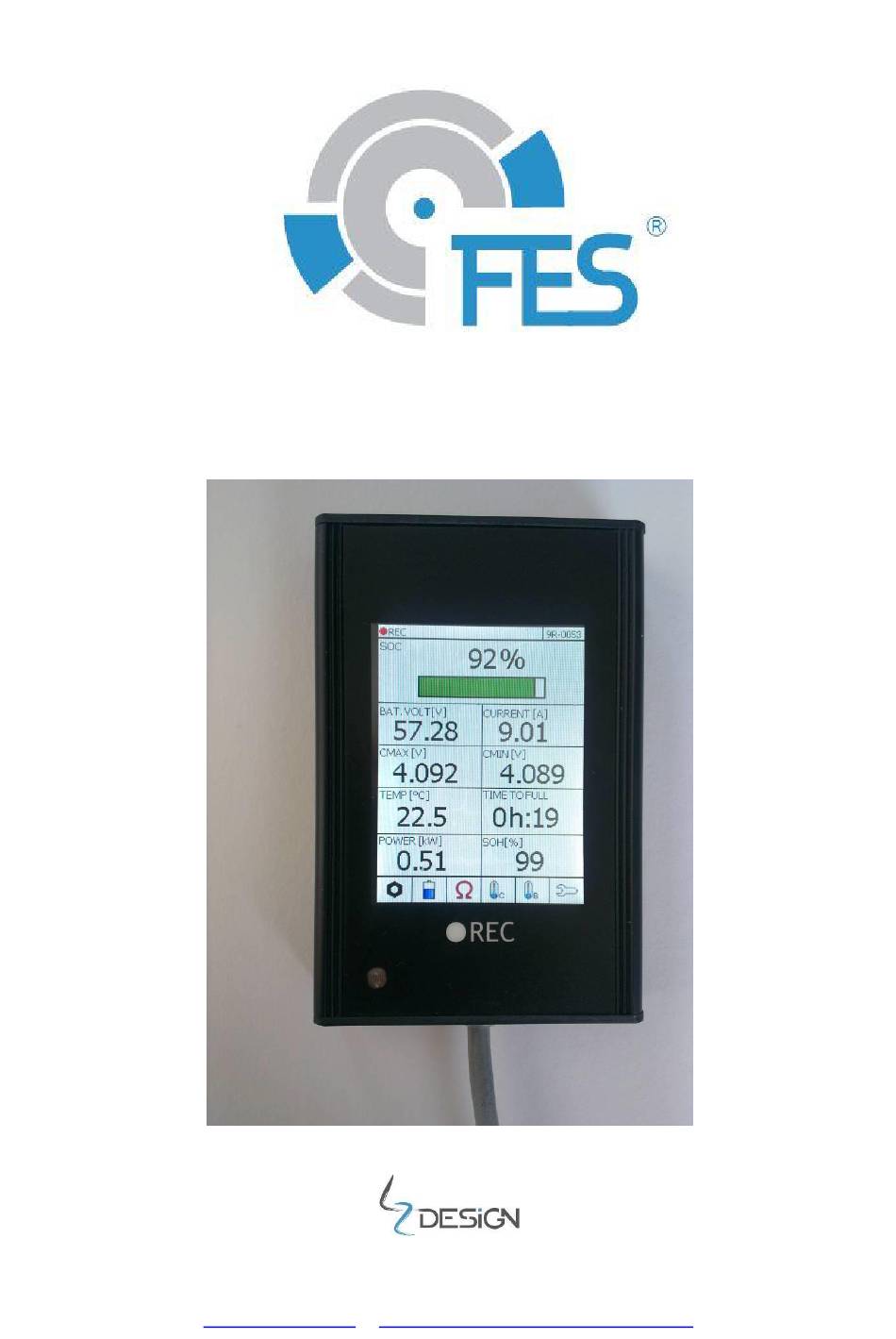

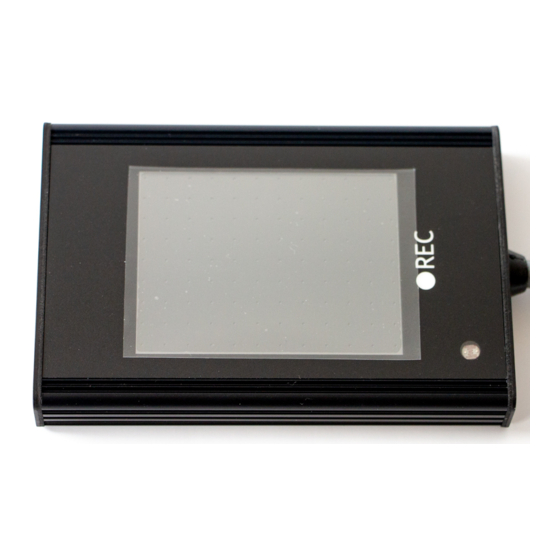

- Page 4 FES LCD Display overview. 3. General FES LCD Display screen shows all the parameters of the FES battery pack. It was developed in cooperation with company REC d.o.o., as more user-friendly solution compared to standard FES BMS Control software, which require PC with Windows operation system.
- Page 5 FES LCD Display manual, Version 1.11 September 2019 4. System description Main parameters overview: Window Description State of charge of the battery pack BAT. VOLT [V] Battery pack total voltage CURRENT [A] Battery pack current (when charging) TIME TO FULL/EMPTY...
- Page 6 FES LCD Display manual, Version 1.11 September 2019 Second tab – cell’s voltages. Third tab – cell’s DC impedance. Fourth tab – cell’s temperatures. Fifth tab – BMS temperatures. Page 6 of 8...
- Page 7 FES LCD Display manual, Version 1.11 September 2019 FES LCD settings. FES LCD display settings buttons description: Icon Description Show/Hide SOC from the main parameters’ tab BAT. VOLT Show/Hide battery pack voltage from the main parameters’ tab CURRENT Show/Hide battery pack current from the main parameters’ tab TIME TO…...
- Page 8 5. If charging is required, connect round connector to charger. 6. Plug in charger supply cable to 220V/50Hz AC wall outlet. 6. Repair and service In case of troubles please contact LZ design d.o.o. 7. Revision history May 2014 Initial release of the manual, Version 1.0 October 2017 Minor updates, Version 1.1...
