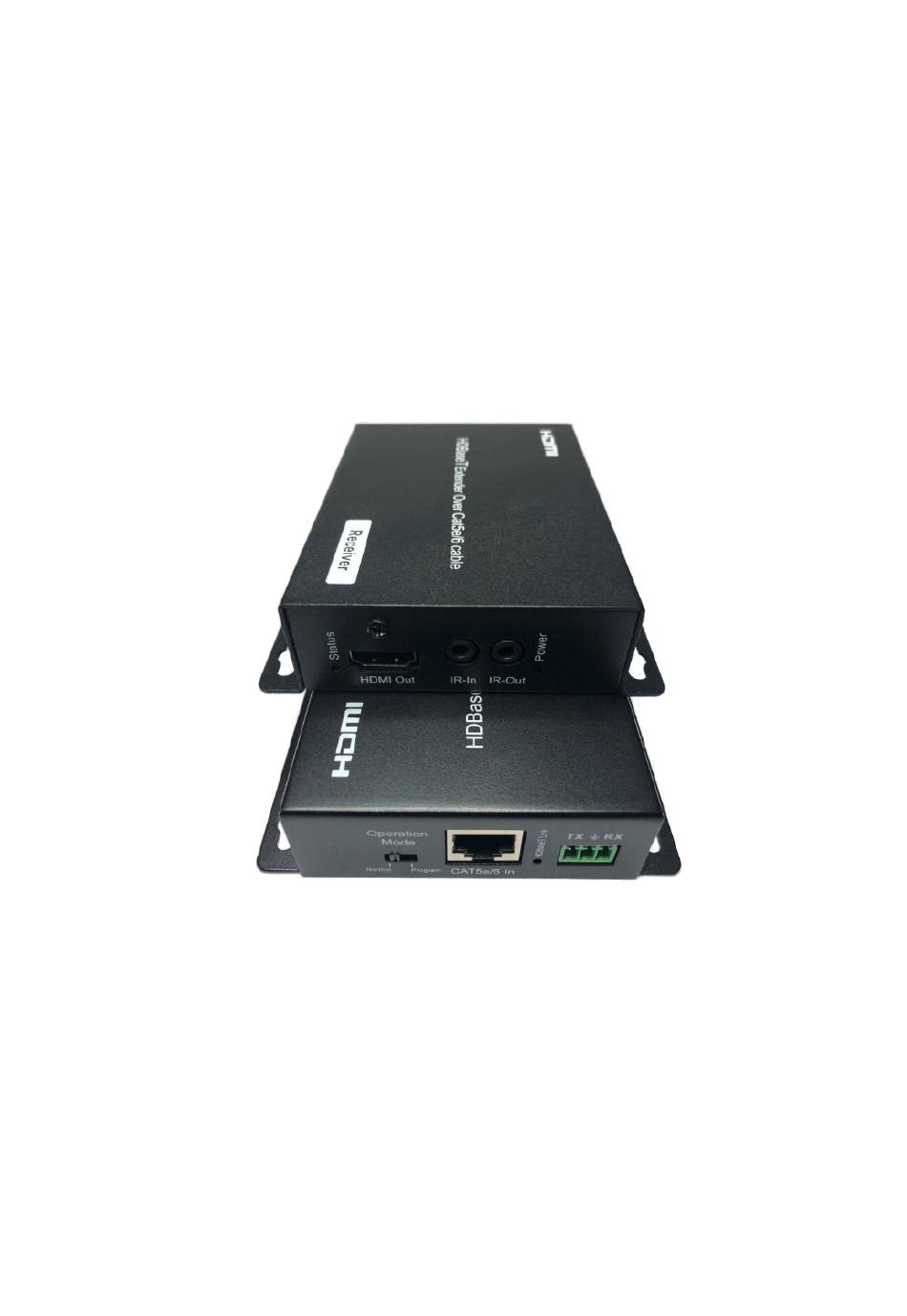

- Page 1 SCION SC05.3100 HDMI (HDBaseT) Extender, 100m 4K/60Hz. 4:4:4 User Manual Version 1.0...
-
Page 2: Table Of Contents
Scion Tech SC05.3100 User Manual Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction
CAT5e/6 cable lengths. Bi-Directional Infra-Red provides control for both the source and screen. The extenders use HDBaseT Class A technology to achieve Ultra HD 4K@60Hz. The SC05.3100 is supplied as a pair and contains Tx/Rx infra-red cables and PSU . These units are ideal for home, office and general retail display screens. -
Page 4: Specifications
Scion Tech SC05.3100 User Manual 4. Specifications TRANSMITTER RECEIVER Connectivity Connectivity Signal input: 1 x HDMI Type A, 19-Pin Female Signal input: 1 x RJ45 Data Socket Signal output: 1 x RJ45 Data Socket Signal output: 1 x HDMI Type A, 19-Pin Female Infra-Red: 2 x 3.5mm Jack Socket... -
Page 5: Panel Description
Scion Tech SC05.3100 User Manual 8. Panel Description Transmitter Rear Panel Transmitter Front Panel SC05.3100 Transmitter TX GND RX Operation IR-In IR-Out Normal Program CAT5e/6 RS232 HDMI In DC 12V 1. Status LED for HDMI Input 6. Power DC 12V Input 2. -
Page 6: Connecting
Scion Tech SC05.3100 User Manual 6. Connecting Important: These extenders are designed to work over a point to point connection using Category 5e or greater twisted pair cable, under no circumstances should they be used with third party equipment including network switches, modems or another manufacturers similar product. -
Page 7: Application Drawing
Scion Tech SC05.3100 User Manual 8. Application Drawing Blu-Ray Player RS232 Controller SC05.3100 Transmitter IR-In IR-Out HDMI In DC 12V Audio Amp Remote TX GND RX Operation Normal Program CAT5e/6 RS232 RS232 CAT5e (max 100m) RS232 TX GND RX Operation... -
Page 8: Maintenance
Scion Tech SC05.3100 User Manual 9. Maintenance Clean this unit with a soft, dry cloth. Never use alcohol, pint thinner of benzene to clean these devices. 9.1 Servicing Damage requiring service: This product should be serviced by a qualified service engineer if: ●... -
Page 9: Warranty Limits And Exclusions
PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY. This returns policy does not affect your legal rights. Details of your legal rights are available from Trading Standards or Citizens Advice Consumer Service. Scion Tech Limited Thatcham, Berkshire, United Kingdom Page 8 www.scion-tech.co.uk...
