FULVIA
TAUT CANVAS PERGOLA - 1 Module
ASSEMBLY INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Saxun FULVIA and is the answer not in the manual?

Questions and answers

Related Manuals for Gimenez Ganga Saxun FULVIA

Summary of Contents for Gimenez Ganga Saxun FULVIA

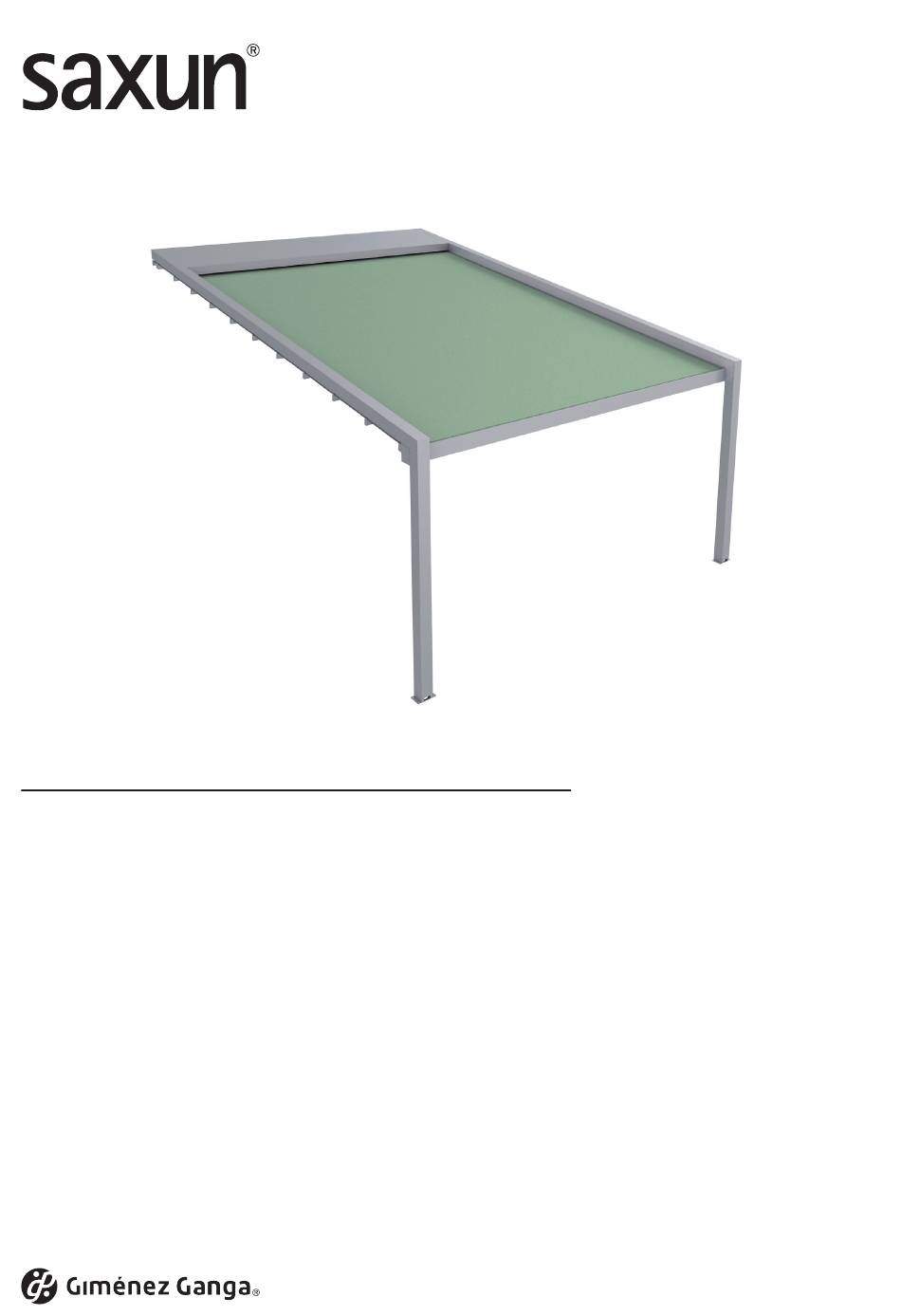

  • Page 1 FULVIA TAUT CANVAS PERGOLA - 1 Module ASSEMBLY INSTRUCTIONS...
  • Page 2 It is important to read these instructions carefully before installing, operating, repairing or first using the product, to protect the safety of users and the integrity of the product.

  • Page 3: Table Of Contents

    INDEX 1. GENERAL RECOMMENDATIONS REGARDING SAFETY, USE AND RESTRICTIONS 1.1 COMPONENTS 2. ASSEMBLY AND INSTALLATION 2.1 STRUCTURE LAYOUT PLANS 2.2 INSTALLATION OF SURFACE S BRACKET AND ADJUSTABLE WALL-CEILING SUP- PORT 2.3 ASSEMBLY OF COLLECTOR GUTTER WITH COLUMNS A AND B 2.4 ASSEMBLY OF LATERAL BEAMS ON THE WALL AND ON COLUMNS A AND B 2.5 ASSEMBLY OF THE AXLE WITH THE MOTOR AND FLANGES 2.6 ASSEMBLY OF THE POLES...

  • Page 5: General Recommendations Regarding Safety, Use And Restrictions

    TAUT CANVAS PERGOLA ASSEMBLY INSTRUCTIONS - 1 Module GENERAL RECOMMENDATIONS REGARDING SAFETY, USE AND RESTRICTIONS. COMPONENTS In order to ensure the safe assembly, use and maintenance of this product, a number of precautionary measures must be taken. Please observe the following warnings and instructions, for the safety of all concerned. Please contact your distributor with any queries.

  • Page 6: Components

    1. COMPONENTS 050266 024274 050273 P-150x150x2.5mm mechanised column 125x125 mm guide beam Fixed collector gutter 82.50 050275 050276 507314 Simple canvas crossbar Final canvas crossbar 70x1.5 mm axle 050301 050302 050201 PLT simple canvas pole end plate PLT final pole end plate Surface S bracket 024167 024324...
  • Page 7 TAUT CANVAS PERGOLA ASSEMBLY INSTRUCTIONS - 1 Module 050299 051107 050294 Wall-ceiling adjustable support 4.2x22 A2 bracket screw 120x24.5x3 mm joining plate 005591 051306 051103 ISO 7380 M6x16 A2 screw ISO 7380 M6x12 A2 screw ULS (ISO - Washer) A2 M6x16 screw 050366 2x1000 PLT panel (Optional Roof) 506094...

  • Page 8: Assembly And Installation

    2. ASSEMBLY AND INSTALLATION Make sure that the surface where the product is to be in- stalled has sufficient load capacity. Each product comes with documentation and a detailed description of all the system’s components. Only these components can be used for the operation of this product. Our desire to simplify installation systems allows us to supply the most compact and simplified product assembly possible.
  • Page 9 TAUT CANVAS PERGOLA ASSEMBLY INSTRUCTIONS - 1 Module T (Dependiente de L) L Máx. 5000 mm S Máx 6500 mm...

  • Page 10: Installation Of Surface S Bracket And Adjustable Wall-Ceiling Support

    2.2 INSTALLATION OF SURFACE S BRACKET AND ADJUSTABLE WALL-CEILING SUPPORT Install the surface S brackets (code 050201) and the adjustable wall-ceiling support (code 050299) using M10 screws (not included), at least of AISI 304 (stainless steel) quality, leaving all the bases and supports correctly aligned according to the measurements of the structure and the irregularities of the sill.
  • Page 11 TAUT CANVAS PERGOLA ASSEMBLY INSTRUCTIONS - 1 Module MEASUREMENT OF SURFACE S BRACKET SURFACE S BRACKET PLAN...
  • Page 12 ADJUSTABLE WALL-CEILING SUPPORT ANCHOR The wall-ceiling support (code 050299) is adjustable by 15° for installation on the ceiling or the wall. WALL CEILING ANCHOR ANCHOR POSITION POSITION ADJUSTABLE WALL-CEILING SUPPORT PLAN The following reductions will be applied to the total measurements of the structure for installing the adjustable wall-ceiling support (code 050299).

  • Page 13: Assembly Of Collector Gutter With Columns A And B

    TAUT CANVAS PERGOLA ASSEMBLY INSTRUCTIONS - 1 Module 2.3 ASSEMBLY OF COLLECTOR GUTTER WITH COLUMNS A AND B Install the P-1 25x125 perforated columns (code 050266) A and B on the ends of the FIXED COLLECTOR GUTTER (code 050273). Insert the 120x26.5x3 mm joining plate (code 050296) into the groove on the gutter and the gutter joining plate (code 024324) into the column.

  • Page 14: Assembly Of Lateral Beams On The Wall And On Columns A And B

    2.4 ASSEMBLY OF LATERAL BEAMS ON THE WALL AND ON COLUMNS A AND B By default, the pergolas are manufactured with Mini Roof. If the product has a complete Roof, consult (ANNEXE I) to install it. Attach the 125x1 25 mm RIGHT LATERAL GUIDE BEAM (code 050274) to the adjustable wall-ceiling support (code 050299) along with the double roof support (code 050297).
  • Page 15 TAUT CANVAS PERGOLA ASSEMBLY INSTRUCTIONS - 1 Module Finally install the 125x1 25 mm LEFT LATERAL GUIDE BEAM (code 050274), inserting it into the 100x40 TUBE, attaching it to the wall and to COLUMN B, just as with the RIGHT LATERAL GUIDE BEAM and tighten the screws of the columns..

  • Page 16: Assembly Of The Axle With The Motor And Flanges

    2.5 ASSEMBLY OF THE AXLE WITH THE MOTOR AND FLANGES Take care with the cap pivot when taking out the fastener, to avoid it inserting itself into the installation’s cap. 70 1,5 mm OCTOGONAL AXLE CODE 507314 Attach the axle, with the motor and flanges already installed, to the structure using the motor support.
  • Page 17 TAUT CANVAS PERGOLA ASSEMBLY INSTRUCTIONS - 1 Module Attach the axle, with the flanges already installed, to the structure using the cap pivot to the U support. Leave the straps in the interior part of the flanges. ISO 7380 M6x12 A2 SCREW CODE 051306 U REINFORCED SUPPORT SQUARE 16-10 + ZF B100GA SCREW CODE 507183...

  • Page 18: Assembly Of The Poles

    2.6 ASSEMBLY OF THE POLES Before inserting the ball bearings into the guides, check that they are correctly posi- tioned, i.e. attached with the screw as shown in the image. The ball bearing screws will come pre-installed. Turn the straps until the ball bearings are left in the central part.
  • Page 19 TAUT CANVAS PERGOLA ASSEMBLY INSTRUCTIONS - 1 Module Attach the final fixed crossbar to the beams using the bracket support. M8 DIN 125 A2 Inox WASHER CODE 022839 DIN 7976 A2 8x50 SCREW CODE 050198 FINAL CROSSBAR FIXER BRACKET CODE 050298 Install the final mobile crossbar in the mobile ball bearings.
  • Page 20 Turn the toothed straps until the canvas is completely extended. Affix the final mobile crossbar to the columns using two clamps. Clamps Insert the toothed straps into the flanges of the 70 mm axle, then check that the flanges are aligned and centred. Once the straps are inserted into the flanges, remove the clamps that are tightening the final mobile crossbar.

  • Page 21: Motor And Leds Electrical Connection

    TAUT CANVAS PERGOLA ASSEMBLY INSTRUCTIONS - 1 Module Tighten the straps using the interior screws in the mini flanges, using the slots in the columns to ensure correct function. Tighten the straps equally, counting the number of rotations of each screw. The tightened straps must not extend out of the lower part of the guide, nor should they be tightened excessively.

  • Page 22: Assembly Of The Final Pole

    2.8 ASSEMBLY OF THE FINAL POLE Attach the final simple crossbar using the double roof support (code 050297). 2.9 ASSEMBLY OF THE POLE END PLATES Attach the end plates to the simple and final crossbars. If the product has LEDs, DO NOT COMPRESS THE CABLES with the profiles.

  • Page 23: Assembly Of The 65X40 Tube

    TAUT CANVAS PERGOLA ASSEMBLY INSTRUCTIONS - 1 Module 2.10 ASSEMBLY OF THE 65x40 mm TUBE Attach the 65x40 mm tube (code 051302) to the double roof support (code 050297). 2.11 ASSEMBLY OF THE SMALL ROOF If the product has a Roof consult (ANNEXE I). Apply a layer of sealant and attach the small roof (code 506094) using the DIN 7504 NH 4.8x16 mm A2 screws (code 51168).

  • Page 24: Maintenance

    3. MAINTENANCE For best use and extended durability of your pergola, it is To clean the canvas, we recommend removing the dust recommended to carry out regular maintenance and ser- that has accumulated without using water, to enable you to vices at least once a year, or even more often depending on remove all the surface particles by vacuuming, air blowing, the wind fatigue at the installation site.

  • Page 25: Annexe I. Optional Complete Roof

    TAUT CANVAS PERGOLA ASSEMBLY INSTRUCTIONS - 1 Module ANNEX I ROOF STRUCTURE INSTALLATION Attach the 125x1 25 mm RIGHT LATERAL GUIDE BEAM (code 050274) to the adjustable wall-ceiling support (code 050299) along with the double roof support (code 050297). Then insert the frontal 98.53° square (code 050290) into P-125x1 25 perforated COLUMN A (code 050266).

  • Page 26: Annex Ii. Motor Configuration

    ANNEX II TABLE OF CONTENTS INTRODUCTION OPERATION 6.1 Standard operation SAFETY 2.1 Safety and responsibility 6.2 Operating with a Somfy io sensor 2.2 Specific safety advice 6.3 Feedback INSTALLATION ADDITIONAL SETTINGS 3.1 Motor preparation 7.1 Favourite position ("My") 7.2 Adding/Deleting Somfy io control points 3.2 Tube preparation and io sensors 3.3 Motor/tube assembly...

  • Page 27: Safety

    TAUT CANVAS PERGOLA ASSEMBLY INSTRUCTIONS - 1 Module 2. SAFETY 2.1 SAFETY AND RESPONSIBILITY Before installing and using this product, please read this guide carefully. This Somfy product must be installed by a professional motorisation and home automation installer, for whom this guide is intended. Moreover, the installer must comply with current standards and legislation in the country in which the product is being installed, and inform his customers of the operating and maintenance conditions for the product.

  • Page 28: Motor/Tube Assembly

    3.3 MOTOR/TUBE ASSEMBLY 1 Slide the motor into the roller tube. For smooth roller tubes, position the notch previously cut on the crown. 2 For safety reasons, fix the roller tube to the drive wheel whit 4 x Ø5 mm self-tapping screws or 4 x Ø4.8 mm steel rivets located: - At least 5 mm from the outer rim of the drive wheel: L1 - 5.

  • Page 29: Commissioning

    TAUT CANVAS PERGOLA ASSEMBLY INSTRUCTIONS - 1 Module 5. COMMISSIONING The guide only describes the commissioning process with a Situo io type Somfy io local control point. For commissioning using any other io control point, refer the corresponding guide. 5.1 IDENTIFYING SETTING STEPS ALREADY COMPLETED Only one motor should be powered at a time.

  • Page 30: Setting The End Limits

    5.4 SETTING THE END LIMITS The end limit setting depends on the type of awning. 5.4.1 Automatically setting the end limits for tensioned Pergola awnings The upper and lower end limits are set automatically. 1 Press the Up and Down buttons simultaneously: the awning moves briefly..

  • Page 31: Programming The Firs Somfy Io Local Control Point

    TAUT CANVAS PERGOLA ASSEMBLY INSTRUCTIONS - 1 Module Setting the lower end limit 1 Put the awning in the lower end limit position. Press and hold the Down button for < 2 seconds to lower the awning in one continuous movement. 2 Stop the awning at the desired point.

  • Page 32: Operating With A Somfy Io Sensor

    6.1.3 Favourite position “my” Definition Besides the upper and lower positions, an intermediate position know as the (favourite position “my”) may be programmed in the motor. To program, modify or delete the favourite position “my”, see the section “Additional Settings”. To use the favourite position “my”: - Briefly press the “my”...

  • Page 33: Advanced Functions

    TAUT CANVAS PERGOLA ASSEMBLY INSTRUCTIONS - 1 Module 7.3.2 Modification for untensioned Pergola awnings The upper and lower end limits can be modified for untensioned Pergola awnings. Readjusting he upper end limit 1 Position the awning at the upper end limit. 2 Press the Up and Down buttons simultaneously until the awning moves briefly: the motor is in setting mode.

  • Page 34: Annex Iii. Leds Electrical Connection Diagram

    8. TIPS AND RECOMMENDATIONS 8.1 QUESTION ABOUT THE PERGOLA io Observations Possible causes Solutions The awning does The wiring is incorrect Check the wiring and modify it if necessary not operate The motor is hot Wait until the motor cools down An incorrect cable has been used Check the cable and ensure it has 3 strands Check whether the battery is weak and replace it if...

  • Page 35: Annex V. Disassembly And Disposal Of Packaging And

    TAUT CANVAS PERGOLA ASSEMBLY INSTRUCTIONS - 1 Module ANNEX III LED SYSTEM CONNECTION POWER FUENTE 230V 24 Vdc SOURCE ALIMENTACIÓN OPTION OPCIÓN LEDS LEDS 24 Vdc TUBE LEDS MANGUERA DE LEDS ROJO WHITE STRIPE RAYA BLANCA WHITE LED BLACK NEGRO TRANSPARENTE TRANSPARENT RECEIVER io...
  • Page 36 ANNEX IV DISMANTLING AND DISPOSING OF PRODUCT PACKAGING AND COMPONENTS AT THE END OF THEIR USEFUL LIFE DISPOSING OF PACKAGING IMPORTANT: packaging should be recycled by the qualified professional who installed the product.. We recommend that the product packaging should be recycled in a responsible manner: •...
  • Page 37 TAUT CANVAS PERGOLA ASSEMBLY INSTRUCTIONS - 1 Module IMPORTANT! Always act with great caution. Please only use suitable tools that are in perfect condition. STEP 1 Dismantle the small or complete roof by loosening the screws and removing the sealant. For this we will need a screwdriver.
  • Page 38 COMPONENTS • Profiles • Screws • Washers • End caps • Surface brackets • Rubber seal • Cables and LED lines • Strap • Axle • • • • • Motor • • Switchboard • Flanges and small flanges • •...
  • Page 39 TAUT CANVAS PERGOLA ASSEMBLY INSTRUCTIONS - 1 Module THE MATERIALS THAT OUR PRODUCTS ARE MADE OF OFFER A GREAT VARIETY OF ENVIRONMEN- TAL ADVANTAGES GALVANISED STEEL Galvanised steel is a type of steel which undergoes a certain treatment, at the end of which it is coated with various layers of zinc which protect it, avoiding oxidation.
