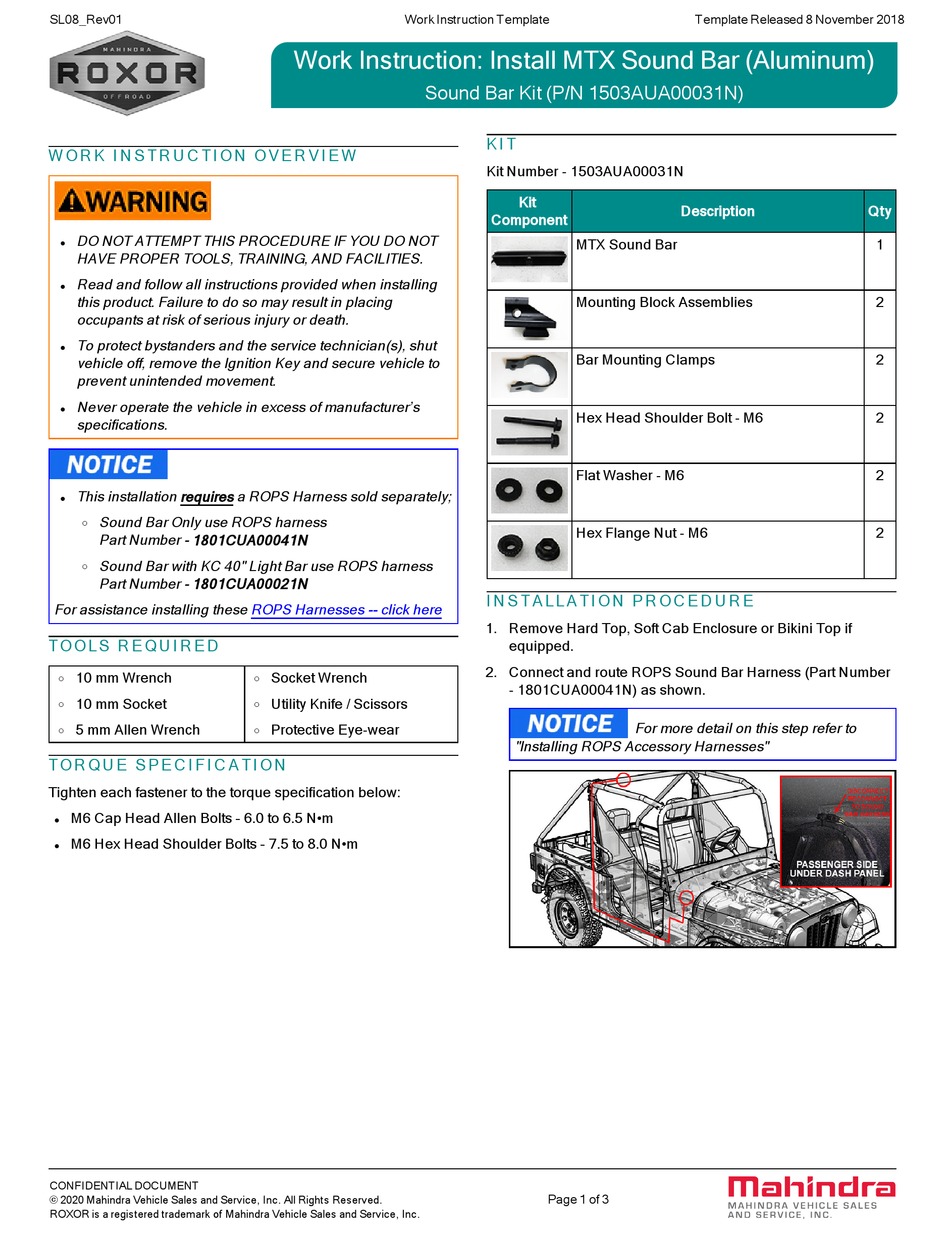

Roxor 1503AUA00031N Work Instructions

SL08_Rev01
W O R K I N S T R U C T I O N O V E R V I E W
DO NOT ATTEMPT THIS PROCEDURE IF YOU DO NOT
l
HAVE PROPER TOOLS, TRAINING, AND FACILITIES.
Read and follow all instructions provided when installing
l
this product. Failure to do so may result in placing
occupants at risk of serious injury or death.
To protect bystanders and the service technician(s), shut
l
vehicle off, remove the Ignition Key and secure vehicle to
prevent unintended movement.
Never operate the vehicle in excess of manufacturer's
l
specifications.
This installation requires a ROPS Harness sold separately;
l
Sound Bar Only use ROPS harness
o
Part Number - 1801CUA00041N
Sound Bar with KC 40" Light Bar use ROPS harness
o
Part Number - 1801CUA00021N
For assistance installing these
T O O L S R E Q U I R E D
10 mm Wrench
o
10 mm Socket
o
5 mm Allen Wrench
o
T O R Q U E S P E C I F I C A T I O N
Tighten each fastener to the torque specification below:
M6 Cap Head Allen Bolts – 6.0 to 6.5 N•m
l
M6 Hex Head Shoulder Bolts – 7.5 to 8.0 N•m
l
CONFIDENTIAL DOCUMENT
© 2020 Mahindra Vehicle Sales and Service, Inc. All Rights Reserved.
ROXOR is a registered trademark of Mahindra Vehicle Sales and Service, Inc.
Work Instruction Template
Work Instruction: Install MTX Sound Bar (Aluminum)
Sound Bar Kit (P/N 1503AUA00031N)
ROPS Harnesses -- click here
Socket Wrench
o
Utility Knife / Scissors
o
Protective Eye-wear
o
K I T
Kit Number - 1503AUA00031N
Kit
Component
MTX Sound Bar
Mounting Block Assemblies
Bar Mounting Clamps
Hex Head Shoulder Bolt - M6
Flat Washer - M6
Hex Flange Nut - M6
I N S T A L L A T I O N P R O C E D U R E
1. Remove Hard Top, Soft Cab Enclosure or Bikini Top if
equipped.
2. Connect and route ROPS Sound Bar Harness (Part Number
- 1801CUA00041N) as shown.
For more detail on this step refer to
"Installing ROPS Accessory Harnesses"
Page 1 of 3
Template Released 8 November 2018
Description Qty
1
2
2
2
2
2
