LENSHOOKE X1 PRO User Manual

Semen quality analyzer
Hide thumbs Also See for X1 PRO:
Table of Contents

Advertisement

Quick Links

Semen Quality Analyzer
User Manual
X1 PRO
Rev.29-0X10801 20200302X1B005

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X1 PRO and is the answer not in the manual?

Questions and answers

Related Manuals for LENSHOOKE X1 PRO

Summary of Contents for LENSHOOKE X1 PRO

  • Page 1 Semen Quality Analyzer User Manual X1 PRO Rev.29-0X10801 20200302X1B005...
  • Page 2 Please read this user manual carefully first, to ensure proper use of the product. This user manual is also available at www.LENSHOOKE.com. Symbols The following icons may appear in the content of this user manual. Symbol for “The intended use of a prescription IVD product”...

  • Page 3: Table Of Contents

    Table of Contents ............................Introduction ............................Intended Use ..........................Product Overview III............................Consumables ........................... Major Functions ............................Accessories ............................. Getting Started VII........................Cleaning & Maintenance VIII............................Error Message ........................Analyzer Specifications ............................. Reference ............................Statement XII........................Warnings and Precautions XIII.

  • Page 4: Introduction

    I. Introduction LensHooke X1 PRO Semen Quality Analyzer is for in vitro diagnostic only. The user should read this User Manual first, to get familiar with the device and its proper operation procedure prior to use the analyzer. If you have any questions about the product or require any assistance, please feel free to contact Bonraybio by calling the Service Hotline (888-441-0263) or contact your local distributor.

  • Page 5: Product Overview

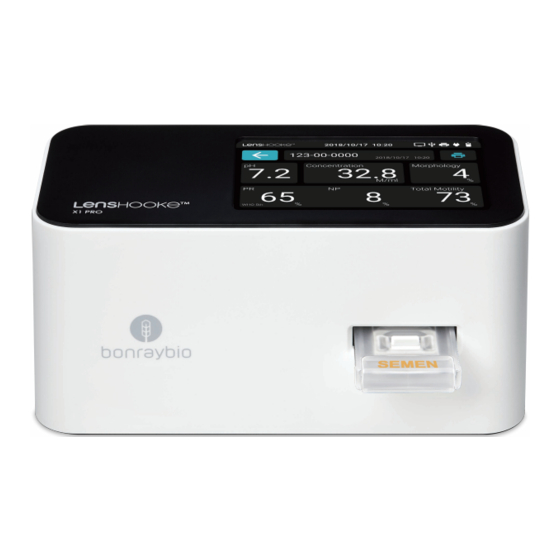

    III. Product Overview LensHooke X1 PRO Semen Quality Analyzer Top View 140.00mm Front View Rear View Touch Screen USB Port Test Cassette Insert Slot USB Port Power Button HDMI Port Reset Button Power Adaptor Port NOTE USB Port : USB 2.0 Reset Button : If the analyzer crashes, please use a pin to press the reset button.
  • Page 6 Touch Screen Icon 1 2 3 4 5 2019/11/01 21:42 Recent Utilities Test Tests Settings HDMI connection icon: This analyzer is connected to monitor by a HDMI port. USB connection icon: This analyzer is connected to a USB Drive. Thermal Receipt Printer connection icon: This analyzer is connected to a Thermal Receipt Printer. Power Adaptor connection icon: This analyzer is connected to a power adaptor.

  • Page 7: Consumables

    Cleaning Wipe LensHooke LensHooke X QC Beads (For Semen) X QC Reticle (For Semen) The result will be inaccurate, if you DO NOT use a LensHooke Semen Test Cassette. NOTE Product picture is for reference only. Actual product may vary. C-KUP Liquefaction Test Cup is for semen sample collection.

  • Page 8: Major Functions

    V. Major Function LensHooke X1 PRO Semen Quality Analyzer Turn on / off Turning on the analyzer: Push the power button down for 2 seconds to turn on the analyzer (as Image 1). When the touch screen lights up (as Image 2), the analyzer is ready to operate.
  • Page 9 3. Check battery status. If the battery is low, connect the power adaptor before testing. Semen sample collection 1. Refer to the C-KUP Liquefaction Test Cup user manual for details. 2. Refer to the LensHooke Semen Test Cassette user manual for details, but also following the indication on the screen.
  • Page 10 Test the Sample New Test Step 1. Select the “New Test” icon. Step 2. Please input the patient ID number and select the “ ” icon to go to the next step. 2019/11/01 21:42 2019/11/01 21:42 Recent Utilities 123-00-0000 Test Tests Settings 2019/3/16...
  • Page 11 Refer to the LensHooke Semen Test Cassette user manual for details, and following the indica- tion on the screen to do New Test. If you are familiar with the LensHooke Semen Test Cassette operation, please select “Skip” to do the next step.
  • Page 12 Utilities Test Tests Settings 2019/3/16 (2) Please input the LOT number on the label of the LensHooke X QC Beads (For Semen) or LensHooke X QC Reticle (For Semen). Please confirm the LOT number and then select “ ” to go to the next step.
  • Page 13 EXP. (12)240627 X QC (10)19062825081 CON. 25±3M/ml (4) Please follow up the instructions of LensHooke X QC Beads (For Semen) or LensHooke X QC Reticle (For Semen) to operate and then insert the cassette into the “Insert Slot”. 2019/11/01 21:42...
  • Page 14 X QC Reticle (For Semen), the analyzer will show the message as below to warn you, and vice versa. 2019/11/01 21:42 If N/A shows on the result screen, it means that the LensHooke X QC Beads (For Semen) or LensHooke X QC Reticle (For Semen) is expired.
  • Page 15 Backup All Records (1) Prepare a USB Drive in advance. (Capacity : 1GB or more) (2) Select “Utilities” and then select “Backup All Records”. 2019/11/01 21:42 2019/11/01 21:42 Recent Utilities Test Tests Settings 2019/3/16 (3) Insert the USB Drive. When the “Backup” icon turns blue, select it to backup the records. 2019/11/01 21:42 2019/11/01 21:42 2019.10.12 - 2019.11.01...
  • Page 16 System Update (1) Prepare the a USB Drive with system update software. (Capacity : 1GB or more) (Please contact with your local distributor for the system update software). (2) Select “Utilities” and then select the “System Update” icon. 2019/11/01 21:42 2019/11/01 21:42 Recent Utilities...
  • Page 17 NOTE If the ‘‘Update File is Corrupted’’ warning message appears on the screen, it means you did not download the complete file. Please download the system update file again to the USB Drive and redo the system update. If the ‘‘Update Failed’’ warning message appears on the screen, it means the USB Drive for system update has been removed, please insert the USB Drive with system update file again to redo the system update.
  • Page 18 (2) Select the yellow ‘‘Delete’’ icon to confirm and delete all the records. 2019/11/01 21:42 2019/11/01 21:42 Number of Records：25 Date：2019.10.12 - 2019.11.01 (3) Select the ‘‘OK’’ icon to return to the previous page. 2019/11/01 21:42 2019/11/01 21:42 NOTE The records cannot be recovered after you delete them. Make sure you want to delete them perma- nently before selecting the ‘‘Delete’’...
  • Page 19 (2) Select the preference edition and select “ ” to return to the previous page. 2019/11/01 21:42 2019/11/01 21:42 Date & Time (1) Select “Settings” and then select the “Date & Time” icon. 2019/11/01 21:42 2019/11/01 21:42 Recent Utilities Test Tests Settings 2019/3/16...
  • Page 20 Language (1) Select “Settings” and then select the “Language” icon. 2019/11/01 21:42 2019/11/01 21:42 Recent Utilities Test Tests Settings 2019/3/16 NOTE The default language is “English”. Access Password (1) Select “Settings” and then select the “Access Password” icon. 2019/11/01 21:42 2019/11/01 21:42 Recent Utilities...
  • Page 21 Input any six characters as your new Admin Password, and then select the “ ” icon to go to the next step. Please input the six characters again to verify the new Admin Password. 2019/11/01 21:42 2019/11/01 21:42 123ABC 6 characters After you verify the new Admin Password, and then select the “...
  • Page 22 Select the “LAN Password” icon, and the password will appear on the screen. If you want to change this LAN Password, you can select “Change”. 2019/11/01 21:42 2019/11/01 21:42 Input any six-digit numeric code to set up the new password. After you input the new password, please select the “...

  • Page 23: Accessories

    “ ” icon to return to the previous page. 2019/11/01 21:42 2019/11/01 21:42 VI . Accessories License Dongle To Refill the License When you unpack the LensHooke Semen Test Cassette box, you will find the license dongle on the top.
  • Page 24 Please check if the number of test cassettes and number of refilled dongle licenses match when you receive the product. Please insert the dongle to refill the license immediately after unpacking the box of the LensHooke Semen Test Cassette. Please go to the Home page to refill the license.
  • Page 25 Please use one of the following browers to access the login page. - FireFox, Chrome, Microsoft Edge for Windows 10...etc. (Please refer to www.LensHooke.com for more details.) It is suggested to keep the power plugged in while connected to the LAN.

  • Page 26: Getting Started

    VII. Getting Started Setup the analyzer: (1) Select “Start” and then set up the Date & Time. 2019/11/01 21:42 Setting Up (2) Select the “ ” or “ ” icon to adjust the date format, and use the “ ” or “ ”...
  • Page 27 To connect the Barcode Scanner to the Analyzer Please connect the barcode scanner to the the analyzer using the USB Port. The barcode scanner to input the patient's ID or the LOT of LensHooke X QC Beads (For Semen) for the test.

  • Page 28: Cleaning & Maintenance

    Steps for Cleaning I. Test Cassette Insert Slot: Turn off the analyzer before cleaning. Prepare 2 pcs of LensHooke Cleaning Wipe. Please drop 4 drops of the 75% alcohol for each 2 sides of a LensHooke Cleaning Wipe. FLIP DROPS DROPS...
  • Page 29 Allow to air dry. Your LensHooke X1 PRO Semen Quality Analyzer has been tested to ensure that there is no change in performance or external materials of the analyzer after 10,950 cleaning cycles and 10,950 disinfecting cycles. This testing simulates 10 cleaning and disinfecting cycles per day over the typical...

  • Page 30: Error Message

    “OK” icon to return to home page. Please insert another new test cassette redo the action. If this message still appears, contact our customer service. *Make sure you're using correct LensHooke Semen Test Cassette. Error 4: 2019/11/01 21:42 Software Error. It might be a software problem.

  • Page 31: Analyzer Specifications

    X. Analyzer Specification Analyzer name Power adaptor: LensHooke X1 PRO Semen Quality Analyzer Input: 100~240 Vac, 50~60 Hz,0.5 A Output: 5 Vdc, 2 A Max Control panel Operation environment 3.5-in resistive touch screen Temperature 15°C~38°C (59°F~100°F) External power input Humidity <70% AC 100~240V / 50~60 Hz;...

  • Page 32: Statement

    Avoid strangulation resulting from baby or child entanglement in monitoring cables. Avoid choking resulting from a child swallowing a small part. The test result is followed WHO Laboratory Manual for the Examination and Processing of Human Semen. Please refer to the user manual of LensHooke Semen Test Cassette. NOTE...

  • Page 33: Warranty

    XIV. Warranty Bonraybio offers a one-year warranty from the day you purchase the LensHooke X1 PRO Semen Quality Analyzer. During the warranty period, we will repair or replace the analyzer free of charge. The warranty only applies to the original LensHooke X1 PRO Semen Quality Analyzer from Bonraybio.
