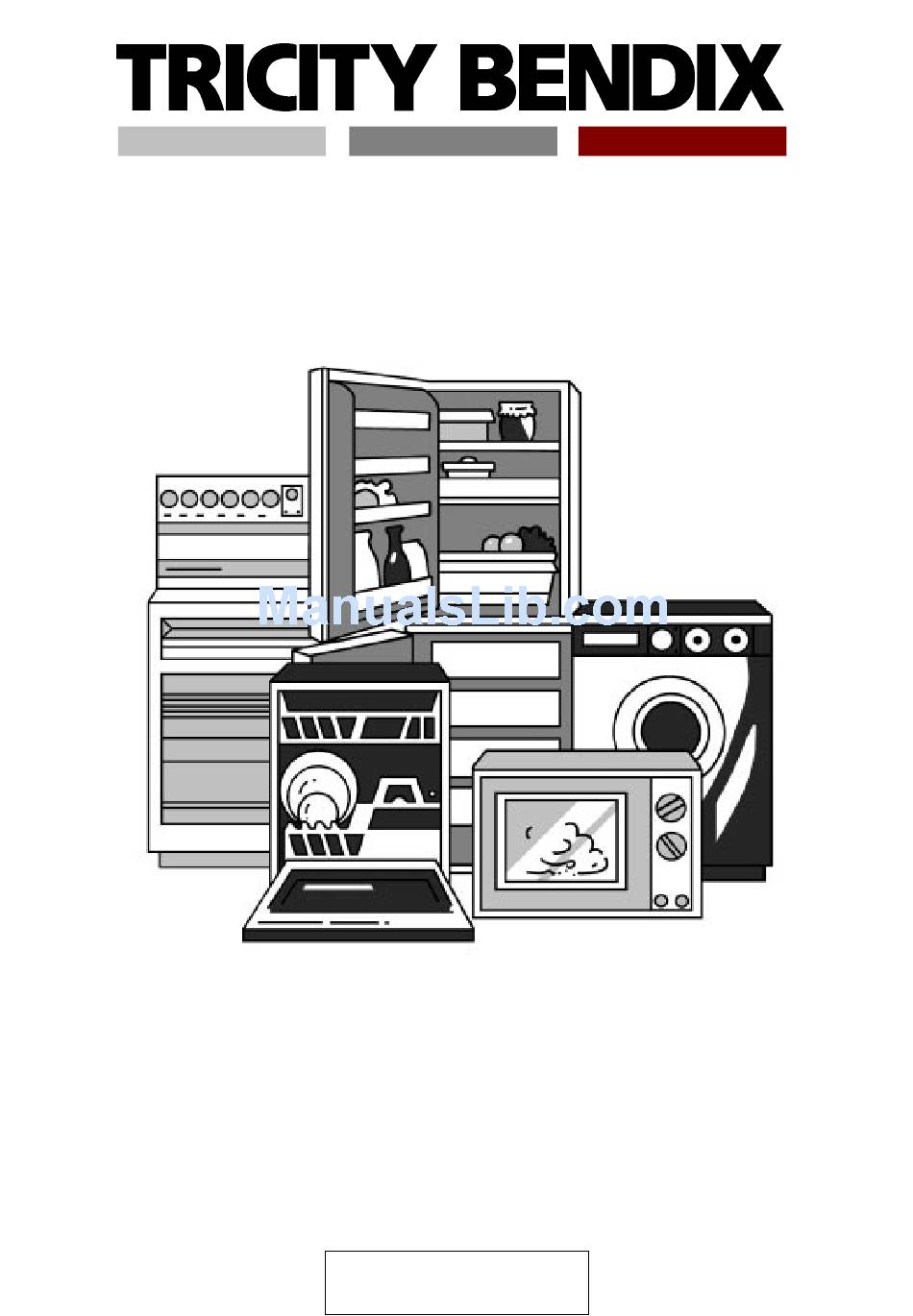

- Page 1 Better Products. Better Value. OPERATING AND INSTALLATION INSTRUCTIONS MODEL NO. 2560S/ 2590S...
-
Page 2: Technical Details
TECHNICAL DETAILS MODEL NO. 2560S WHITE ROSE Voltage: 230/240 Volts AC 50Hz Wattage: 10.9/11.9kW Height: 1290mm Width: 550mm Depth: 595mm Weight: 54kg MODEL NO. 2590S GOURMET Voltage: 230/240 Volts AC 50Hz Wattage: 11.3/12.3kW Height: 1290mm Width: 550mm Depth: 595mm Weight: 58kg These appliances comply with European Council Directive 72/23/EEC. -
Page 3: Table Of Contents
Selecting the Grill (2560S) ........ - Page 4 CONTENTS Defrost Feature (2590S only) ..............26 Uses of Defrost Feature .
-
Page 5: Preface
Tricity Bendix cookers comply with British Standard safety and performance requirements. They are covered by a 12 month parts and labour guarantee. To get the best from your new Tricity Bendix cooker, we ask that you PLEASE READ THESE INSTRUCTIONS CAREFULLY. Particular attention should be made to cooking times and temperatures which may differ from your previous cooker. -
Page 6: Safety
SAFETY THESE WARNINGS ARE PROVIDED IN THE INTERESTS OF YOUR SAFETY. ENSURE THAT THEM ALL BEFORE INSTALLING OR USING THE COOKER. PLEASE READ CAREFULLY BEFORE INSTALLATION This cooker is heavy and care must be taken when moving it. Ensure that all packaging, both inside and outside the appliance, been... -
Page 7: After Use
Ensure that all vents are left unobstructed to ensure ventilation of the oven. Ensure that the anti-tilt shelves are put in place correctly. Refer to instructions on pages 18 and 20. Never line any part of the appliance with aluminium foil. Always stand appliance when opening the oven... -
Page 8: Introduction
INTRODUCTION WARNING: THIS APPLIANCE MUST BE EARTHED RATING PLATE Record the model and serial numbers on the back cover from the rating plate. This is situated on the front frame of the appliance and can be seen upon opening the oven door. The appliance must be protected by a suitably rated fuse or circuit breaker. -
Page 9: Reversible Main Oven Door
2590S Gourmet only 1 trivet 2590S Gourmet only 1 meat tin 2590S Gourmet only 4 straight shelves for main oven cooking including one for use in the top oven 2560S White Rose only 2 straight shelves... -
Page 10: Getting To Know Your Cooker
GETTING TO KNOW YOUR COOKER THE CONTROL PANEL (2560S WHITE ROSE) FEATURES Timer Oven Temperature Control Oven Indicator Neon THE CONTROL PANEL (2590S GOURMET) FEATURES A - Timer B - Main Oven Temperature Control C - Main Oven Indicator Neon... -
Page 11: The Timer
THE TIMER START TIME SETTING KNOB SECOND HAND CLOCK SYMBOL CLOCK/MINUTE MINDER/LENGTH OF COOKING TIME SETTING KNOB START TIME INDICATOR HOUR HAND DISPLAY WINDOW MANUAL SYMBOL MINUTE HAND 1. TO SET THE TIME OF DAY The clock will operate when the cooker is switched ON at the wall. - Page 12 4. TO CANCEL MINUTE MINDER/BUZZER Turn setting knob (D) clockwise, without pulling it out until "O" or the manual symbol appears in the display window as Fig.4. 5. HOW TO SET THE OVEN TIMER When using the oven timer for the very first time, it is advisable to let it operate while you are at home.
- Page 13 B) TO START COOKING NOW, THEN SWITCH OFF AUTOMATICALLY Follow the first 3 points under section 5. (A) above, and then; iv) To set the length of time you want the food to cook; turn setting knob without pulling it out, until the required cooking period can be seen in the display window, e.g.
-
Page 14: The Sealed Hotplates
This hardens the protective coating on the hotplates and makes it more resistant to normal use. A harmless smoke will be given off from the hotplates. (2560S WHITE ROSE) (2590S GOURMET) To operate the hotplates, turn the control knobs in either direction to vary the heat setting. -
Page 15: Deep Fat Frying
DEEP FAT FRYING SPECIAL FRYING NOTE: For safety purposes when deep fat frying, fill the pan one-third full of oil, DO NOT cover the pan with a lid and DO NOT leave the pan unattended. In the unfortunate event of a fire, switch OFF at the electricity supply and cover the pan with a lid or damp cloth to assist in smothering the flames. -
Page 16: The Grill
CAUTION - ACCESSIBLE PARTS MAY BECOME HOT WHEN THE GRILL IS IN USE. CHILDREN SHOULD BE KEPT AWAY. SELECTING THE GRILL (2560S WHITE ROSE) The grill neon will illuminate when the grill control is set. It will stay on until the grill is turned OFF. -
Page 17: Hints And Tips
The grill pan servery can be fully withdrawn from the cooker and rested on a heat resistant work surface to serve the food. HINTS AND TIPS Food should be thoroughly dried before grilling to minimise splashing. Brush lean meats and fish lightly with a little oil or melted butter to keep them moist during cooking. -
Page 18: The Top Oven (2590S Only)
THE TOP OVEN (2590S GOURMET ONLY) USES OF THE TOP OVEN The top oven is the smaller of the two ovens. It is heated by elements in the top and bottom of the oven. It is designed for cooking on one level and for small quantities of food. It gives especially good results if used to cook fruit cakes, sweet or savoury flans or quiche. - Page 19 When cooking cakes, pastry, scones, bread, etc., place the tins or baking trays centrally on the shelf directly below the element. Stand dishes on a suitably sized baking tray on the shelf to prevent spillage onto the oven base and to help reduce cleaning. The material and finish of the baking trays and dishes will affect the degree of base browning of the food.
-
Page 20: The Oven (2560S Only)
THE OVEN (2560S WHITE ROSE ONLY) SELECTING THE OVEN To operate the oven simply set the oven control dial to the required temperature. THINGS TO NOTE 1. The oven indicator neon will glow until the oven has reached the required temperature and then go out. -
Page 21: Oven Cooking Chart
OVEN COOKING CHART (2560S ONLY) The oven temperatures are intended as a guide only. It may be necessary to increase or decrease the temperatures by 10° C to suit individual preferences and requirements. Shelf positions are counted from the bottom of the oven. -
Page 22: Cooking Time
ROASTING CHART (2560S ONLY) MEAT Beef Beef, boned Mutton and Lamb Pork and veal Chicken Turkey and goose Duck Pheasant Rabbit Potatoes with meat Potatoes without meat TEMPERATURES (°C) OVEN 180-200 20-35 minutes per ½kg (1lb) and 20-35 minutes over 180-200 25-35 minutes per ½kg (1lb) -
Page 23: The Main Fan Oven (2590S Only)
THE MAIN FAN OVEN (2590S GOURMET ONLY) USES OF THE FAN OVEN PREHEATING The fan oven quickly reaches its temperature, so it is not usually necessary to preheat the oven. Without preheating, however, you may find you need to add an extra 5 - 10 minutes on the recommended cooking times. For recipes needing high temperatures, e.g. -
Page 24: Hints And Tips
HINTS AND TIPS Arrange the shelves in the required positions before switching the oven ON. Shelves are numbered from the bottom upwards. When cooking more than one dish in the fan oven, place dishes centrally on different shelves rather than cluster several dishes on one shelf. This will allow the heat to circulate freely for the best cooking results. -
Page 25: Oven Cooking Chart (2590S Only)
OVEN COOKING CHART (2590S ONLY) The oven temperatures are intended as a guide only. It may be necessary to increase or decrease the temperatures by 10°C to suit individual preferences and requirements. FOOD Biscuits Bread Bread rolls/buns Cakes: Small & Queen Sponges Victoria Sandwich Madeira... -
Page 26: Defrost Feature (2590S Only)
DEFROST FEATURE (2590S GOURMET ONLY) USES OF DEFROST FEATURE This fan oven function defrosts most foods faster than more conventional methods. It is particularly suitable for delicate frozen foods which are to be served cold e.g. cream filled gateaux, cakes covered with icings or frostings, cheesecakes, biscuits, scones etc. -
Page 27: Care And Cleaning
CARE AND CLEANING ALWAYS SWITCH OFF THE SUPPLY AND ALLOW THE COOKER TO COOL BEFORE CLEANING CLEANING MATERIALS Before using any cleaning materials on your cooker, check that they are suitable and that their use is recommended by the manufacturer. Cleaners that contain bleach should NOT be used as they may dull the surface finishes. -
Page 28: Cleaning The Grill Deflector, Grill Pan, Grid, Servery And Oven Shelves
Soaking first in soapy water will make cleaning easier . CLEANING INSIDE THE OVEN/GRILL COMPARTMENTS The Stayclean surfaces inside the main oven (2560S) and top and main ovens (2590S) should not be cleaned manually. See "Care of Stayclean Surfaces". vitreous enamel... -
Page 29: Replacing The Oven Light Bulb (2590S Only))
REPLACING THE OVEN LIGHT BULB (2590S GOURMET ONLY) The type of bulb required is a 300C 25 watt small Edison Screw. Part number 572 491 5431-00/1 (Available through Tricity Bendix service centres). CAUTION: Disconnect the appliance from the electricity supply before replacing the bulb. Open the door and remove the shelves to enable easy access to the oven light assembly. -
Page 30: Something Not Working
SOMETHING NOT WORKING? We strongly recommend that you carry out the following checks on your appliance before calling a Service Engineer. It may be that the problem is a simple one, which you can solve yourself without the expense of a service call. If our Service Engineer finds that the problem is listed below you will be charged for the call whether or not the appliance is under guarantee. -
Page 31: Service And Spare Parts
It is a recommendation by the manufacturer that annual servicing of the product is done by the manufacturers approved service organisation. In the event of your appliance requiring service Tricity Bendix Limited have an arrangement with Electrolux Group Service. Before calling out an Engineer, please ensure you have read the details under the heading "Something Not Working?"... -
Page 32: Customer Service Centres
CUSTOMER SERVICE CENTRES The Regional Electricity Companies are responsible for the servicing of cookers sold by their own outlets. The telephone numbers can be found in the telephone directory. Service for cookers bought from other outlets can be obtained by calling the nearest Customer Service Centre on the numbers given below. - Page 33 EH FK G KA KY1-16 ML GLASGOW PA1-23, PH1-7 GUERNSEY All Codes SA33-39 HAVERFORDWEST SA41-44 SA61-73 HR1-9 LD1-8 HEREFORD SY7 ,18 NP7-8 YO11-18 HULL YO25 HU1-19 DN14 IV1-28, 30-36, 52-56, INVERNESS PH19-26, 42-44 KW1-14 INVERNESS PH30-41 IV40-51 ISLE OF WIGHT PO30-41 ISLE OF ARRAN KA27...
- Page 34 LANCASTER LA1-23 BD DN1-7, 10-12, HD HG HX LEEDS LS S WF YO1-3, 5-8 DE NG1-22 & 25 DN21 sub codes 1 2 & 5 only, LN1, 2 , 4,5,6 LINCOLN LN3 sub codes 4 & 5 only LN8-10 NG 23,24 31-34 PE1-13, 20-25 LIVERPOOL FY PR L WN CH CW WA (Not WA 14/15)
- Page 35 REDRUTH TR1-20, 26, 27 PL10-15, 17, 18, 22-35 ROTHSAY PA20 SHETLAND Own Sales SHETLAND Own Sales SHETLAND SY1-6 SHREWSBURY SY8-17 SY19-22 SOUTH COAST BN16-18. GU27-35 PO1-22. BH DT SO TR21-25 DN 8, 9, DN15-20 DN21 sub codes 3,4 only SOUTH HUMBERSIDE DN31-40 LN (3 sub code 6 only), 7 LN11-13...
-
Page 36: Guarantee Conditions
All service work under this guarantee must be undertaken by a Tricity Bendix service representative or authorised agent. Any appliance or defective part replaced shall become the Company's property. - Page 38 2560S/ 2590S - 311171907...
- Page 40 This handbook is accurate at the date of printing, but will be superseded and should be disregarded if specifications or appearance are changed. Better Products. Better Value. TRICITY BENDIX,99 OAKLEY ROAD, LUTON, BEDFORDSHIRE, LU4 9QQ A Division of Emaco Limited Registered in England No. 176547 Registered Office. 101 Oakley Road, Luton LU4 9RJ. MODEL NO.
