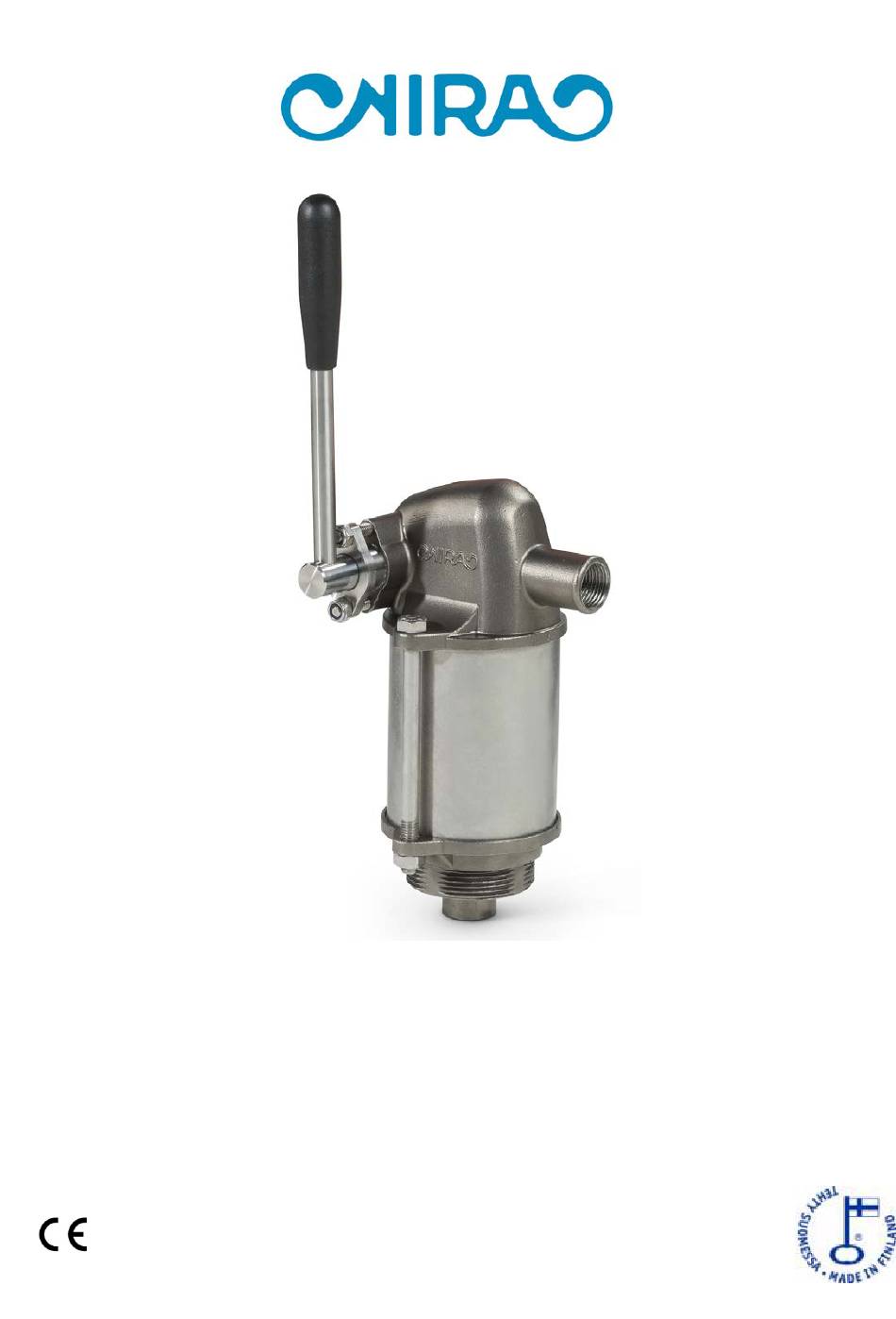

- Page 1 Nira ACE316 Käyttö- ja huolto-ohje Operating and maintenance manual...
- Page 2 Copyright © Nira Pumps Oy, 2017 | 06/2017...
-
Page 3: Table Of Contents
3.3 Sylinterin tiivisteiden vaihto / Cylinder seal replacing ..............7 4 Tekniset tiedot / Technical information ....................... 8 5 Limited International Warranty ........................9 6 Yhteystiedot / Contact information ......................10 Lue käyttöohjeet huolellisesti aina ennen käyttöä Read these instructions carefully Copyright © Nira Pumps Oy, 2017 | 06/2017... -
Page 4: Nira Ace316
Näin varmistat, että ohje on kaikkien laitetta käyttävien saatavilla koko tuotteen elinkaaren ajan. Nira ACE316 is a hand pump made of acid proof steel. Pump is designed for pumping liquids that need good chemical resistance. This document gives instructions for operating and maintaining the device. Please familiarize yourself with these instructions before using the device. -
Page 5: Contents 2 Käyttö / Usage
Pump is ready to use right after installation. Outlet and inlet of a pump have ½“ female pipe thread. It is possible to install different kind of adapters, pipes or hydraulic hose. In addition to threaded attachments it is posiible to attach 25mm hose to pump’s outlet and inlet. Copyright © Nira Pumps Oy, 2017 | 06/2017... -
Page 6: Huolto / Maintenance
Open the nuts • Remove gland follower • Remove old packing • Assemble new packing • Assemble gland follower • Assemble nuts • Assemble handle • Tighten nuts alternately 90 degrees at the time Copyright © Nira Pumps Oy, 2017 | 06/2017... -
Page 7: Sylinterin Tiivisteiden Vaihto / Cylinder Seal Replacing
Assemble new cylinder seal and press it over the plunger to its place. • Press cylinder back to its place • Assemble attachment bolts, put bottom valve body to its place and assemble nuts • Tighten nuts alternately. Tightening torque 10Nm Copyright © Nira Pumps Oy, 2017 | 06/2017... -
Page 8: Tekniset Tiedot / Technical Information
Capacity litres per minute approx: 30l/min • Weight 2,2kg • Inlet and outlet: 25mm hose or ½” female thread • 2” thread in bottom valve body • Packaging 212 x 120 x 156mm Copyright © Nira Pumps Oy, 2017 | 06/2017... -
Page 9: Limited International Warranty
The warranty period is determined in the agreement documents. Unless otherwise agreed, the warranty period for manufacturing and material defects is 2 year, hand pump models NIRA 1, NIRA 67 (not playground –version) and NIRA 3B which carry a warranty of 3 years. Nira ACE316 carries a warranty of 5 years. -
Page 10: Yhteystiedot / Contact Information
Varaosat / Spare parts NIRA Pumps Oy Tel. +358 (0)10 830 6751 Ruukkupolku 3 38210 Sastamala Tel. +358 (0)10 830 6700 Fax. +358 (0)10 830 6702 Email: nira.info@nira.fi www.nira.fi Laitteen malli: ________________________________________________________ Ostopäivä: ___________________________________________________________ Copyright © Nira Pumps Oy, 2017 | 06/2017...
