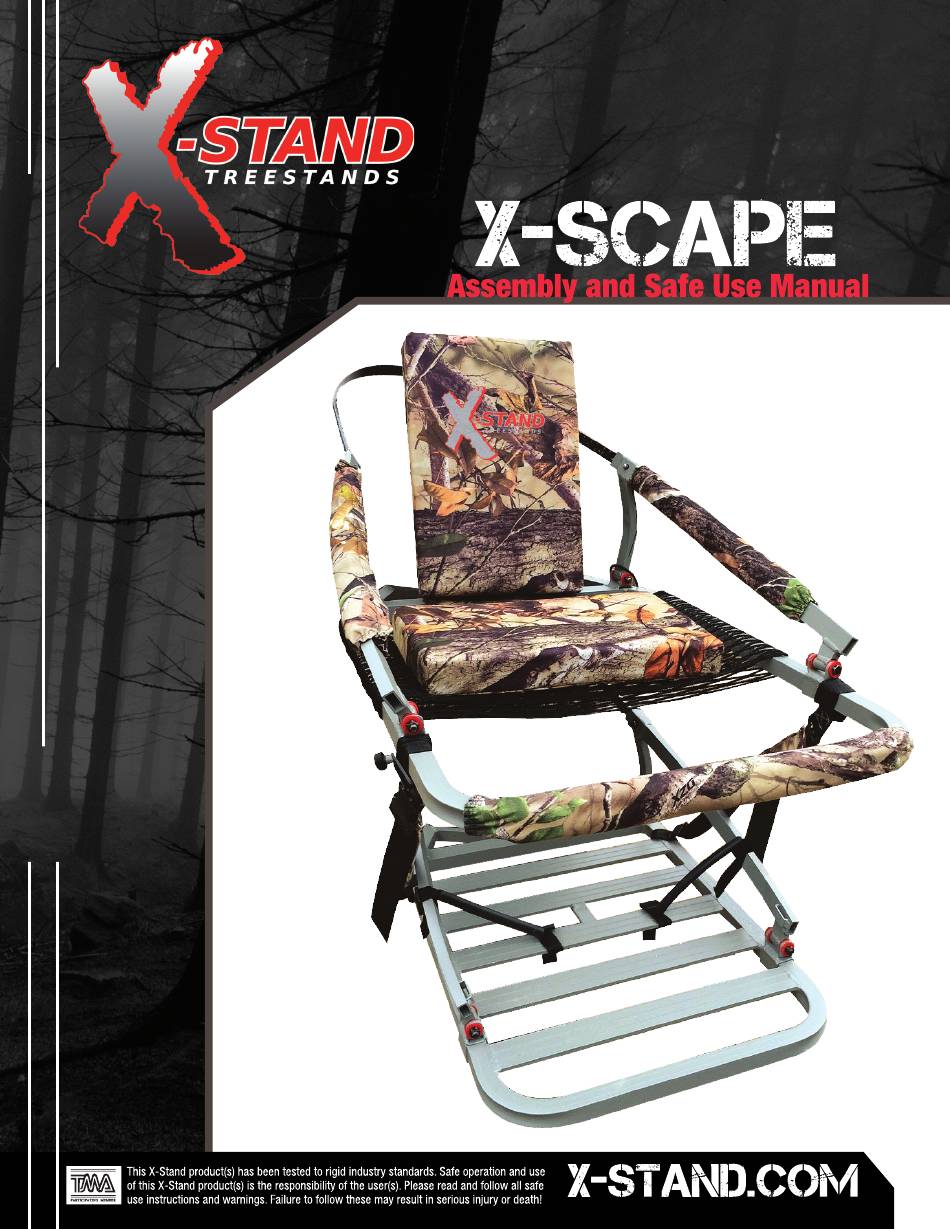

- Page 1 ®...
- Page 2 WARNING! A Treestand Safety: It’s Up To You DVD has been included with this treestand. Please view it in its entirety prior to using this or any other X-Stand™ WARNING! Several X-Stand™ Treestands are equipped with a footrest, armrests and/ product(s).
- Page 3 Failure to follow these instructions may you intend to climb. Do not attempt to use this or any other X-Stand™ product(s) when result in serious injury or death! thunderstorms are threatening and/or present within five (5) miles.
- Page 4 THE X-SCAPE - PARTS LIST AND HARDWARE DIAGRAM Part # Description XP15-0405 Foot Section Connector/Backpack XP15-0406 Foot Section (x2) Strap Female End Support - Right Connector/Backpack XP15-0407 Foot Section Strap Male End (x2) Support - Left XP15-0409 Seat Section (x2) Foot Strap XP15-0411 Seat Section...
- Page 5 WARNING! You must use the X-Stand™ Treestand full-body fall arrest harness provided with this product or a harness that complies with industry standards recognized by the TMA. NOTE: You must store your full-body fall arrest harness out of direct sunlight and out of any other harsh environmental condition(s) that may adversely affect its performance.
- Page 6 Fig 5. Wrap the tree belt around the tree trunk. You must install your tree belt at or above your legs. The X-Stand™ Treestands full-body fall arrest harness should look like the eye-level (Fig 7). DO NOT allow the lanyard loop to cover the tree belt buckle. Keep the one depicted in Figure 3 when done correctly.
- Page 7 Should you have an questions about the assembly, installation or use of this X-Stand product, or any other X-Stand products, please do not hesitate to call one of our customer service representatives at 540-877-2769 and they will answer all questions you may have about any of the complete line of X-Stand products.
- Page 8 ASSEMBLY INSTRUCTIONS THIS PRODUCT COMES FULLY ASSEMBLED; HOWEVER, IT IS - THE X-SCAPE - ADVISABLE TO REFER TO THE DETAILED DIAGRAM BELOW TO BECOME FAMILIAR WITH THE PROPER ASSEMBLY OF YOUR TREESTAND. STEP 1. Attach the fixed end of (1) cable to the right support of the foot section using (1) 5/16’’...
- Page 9 CLIMBING UP - THE X-SCAPE - STEP 1. Select a straight, healthy tree WARNING! This X-Stand is equipped with two () between 9 to 20-inches in diameter. security/connector straps (they double as backpacking straps also). These security/ connector straps are STEP 2.
- Page 10 NOTE: When installed correctly the outer end FIGURE 3 of the foot section should be tilted slightly upward. This will allow the stand to level itself as you climb and as the tree trunk gradually narrows. Repeat step to attach the seating platform.
- Page 11 NOTE: You must loosen these straps prior to FIGURE 7 attempting to climb down. STEP 10. Remove the cam-buckle straps from the accessory bag and carefully attach the hook to one of the holes in the bark biter on the seat platform.
- Page 12 CLIMBING DOWN - THE X-SCAPE - WARNING! After descending back to the ground, do not remove the full-body fall arrest harness tether from the tree until you have reached the ground and your feet are safely on firm ground. Failure to follow this warning may result in serious injury or death! STEP 1.
- Page 13 BACKPACKING INSTRUCTIONS STEP 1. Take the top FIGURE 6 FIGURE 1 STEP 6. Locate the elastic (seat) section and lay flat on the ground facing up. ropes (with ball ends) Fold both seat section attached to the top seat supports. (Fig. 7) supports out flat.
- Page 14 WARNING! Security straps have been included with your X-Stand climber. These are designed to connect the standing platform to the seating platform. In the unlikely event you lose contact with either while climbing, these security straps allow you to regain control. Prior to climbing, insure these security straps are installed. Failure to follow these instructions...
-
Page 15: Standard Limited Warranty
Limitations: This warranty is void if the product is damaged by improper or abnormal use or by accident; if the product is altered or modified in any way other that those directed by official X-Stand™ Treestands instructions; or if any attempt is made to repair the product without authorization from X- Stand™... - Page 16 First Edition, January 2015. Published by X-Stand Treestands, Apple Valley Minnesota. © X-Stand Treestands. All rights reserved. ®...
