FREEWAY AGILE Installation Manual

Fixed height
Hide thumbs Also See for AGILE:

Advertisement

Quick Links

Download this manual
Agile
Installation Guide
Installation Guide - Fixed Height
www.freewaydesign.net

Advertisement

loading
Need help?

Need help?

Do you have a question about the AGILE and is the answer not in the manual?

Questions and answers

Related Manuals for FREEWAY AGILE

Summary of Contents for FREEWAY AGILE

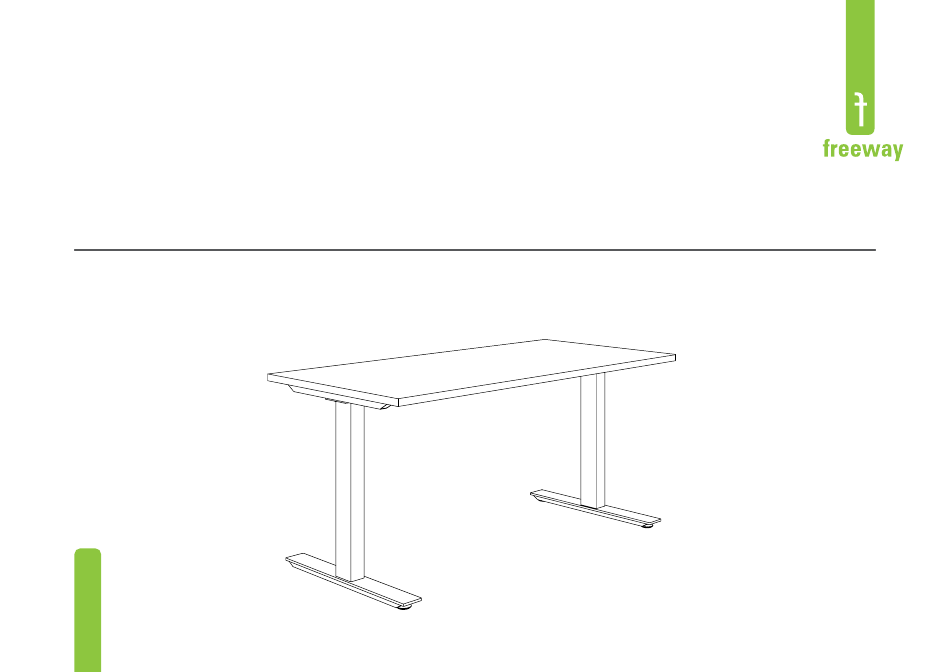

  • Page 1 Agile Installation Guide Installation Guide - Fixed Height www.freewaydesign.net...
  • Page 2 Agile Page 2 Installation Guide - Fixed Height Parts: 2 x Foot 1 x Cross Rail 1 x L&R Leg Pair 1 x L&R Leg Rail Pair 8 x M8x25 10 x M8x10 6 x ST5.0x23 1 x L&R Support Bar Pair 4 x Levelling Foot www.freewaydesign.net...
  • Page 3 Agile Page 3 Installation Guide - Fixed Height Step 1 6 x M8x10 www.freewaydesign.net...
  • Page 4 Agile Page 4 Installation Guide - Fixed Height Step 2 4 x M8x10 www.freewaydesign.net...
  • Page 5 Agile Page 5 Installation Guide - Fixed Height Step 3 8 x M8x25 4 x Levelling Foot www.freewaydesign.net...
  • Page 6 Agile Page 6 Installation Guide - Fixed Height Step 4 Worktop Length 1200mm 1125mm 1500mm 1425mm 1800mm 1725mm 2100mm 2025mm www.freewaydesign.net...
  • Page 7 Agile Page 7 Installation Guide - Fixed Height Step 5 6 x ST5.0x23 www.freewaydesign.net...
  • Page 8 Agile Page 8 Installation Guide - Fixed Height Completed www.freewaydesign.net...
  • Page 9 Optional Desk Hung Screen Page 9 Installation Guide Step 1 www.freewaydesign.net...
  • Page 10 Optional Desk Hung Screen Page 10 Installation Guide Step 2 90.0° www.freewaydesign.net...
  • Page 11 Optional Desk Hung Screen Page 11 Installation Guide Step 3 www.freewaydesign.net...
  • Page 12 Optional Desk Hung Screen Page 12 Installation Guide Step 4 www.freewaydesign.net...
  • Page 13 Optional Desk Hung Screen Page 13 Installation Guide Step 5 www.freewaydesign.net...
  • Page 14 Optional Desk Hung Screen Page 14 Installation Guide Step 6 90.0° www.freewaydesign.net...
  • Page 15 Optional Cable Tray Page 15 Installation Guide Step 1 www.freewaydesign.net...
  • Page 16 Optional Cable Tray Page 16 Installation Guide Step 2 4 x M5x6 www.freewaydesign.net...
  • Page 17 Power & Data Plate Page 17 Installation Guide Step 1 & 2 1 x Power Plate 1 x Data Plate 5 x Screw www.freewaydesign.net...
  • Page 18 Power & Data Plate Page 18 Installation Guide Step 3 & 4 www.freewaydesign.net...
