FREEWAY Agile Electric 3 Column Installation Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Agile
Installation Guide
Installation Guide - Electric 3 Column
www.freewaydesign.net

Advertisement

loading
Need help?

Need help?

Do you have a question about the Agile Electric 3 Column and is the answer not in the manual?

Questions and answers

Related Manuals for FREEWAY Agile Electric 3 Column

Summary of Contents for FREEWAY Agile Electric 3 Column

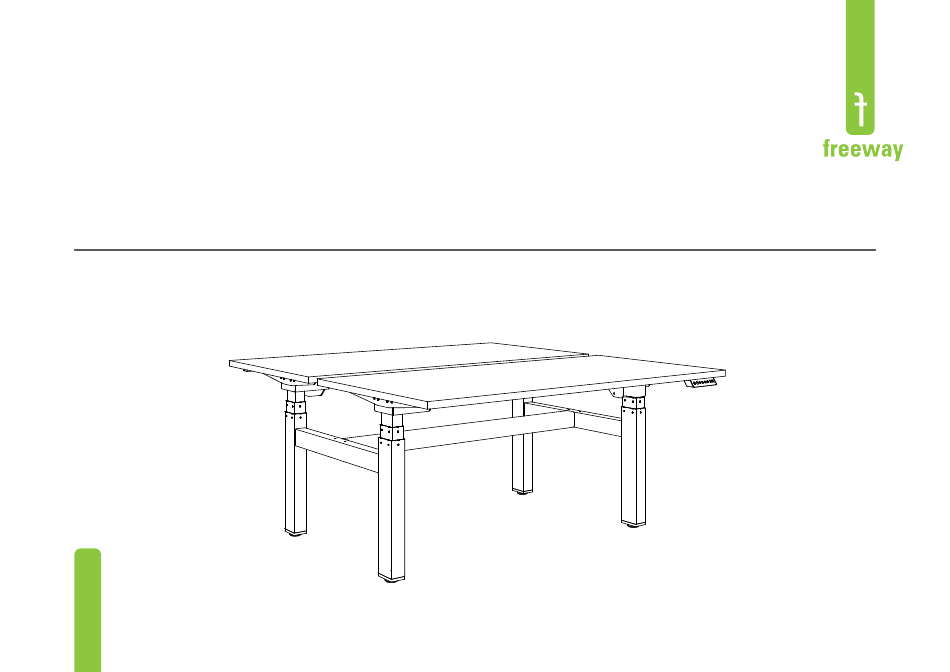

  • Page 1 Agile Installation Guide Installation Guide - Electric 3 Column www.freewaydesign.net...
  • Page 2 Agile Page 2 Installation Guide - Electric 3 Column Parts: 2 x L&R Leg Pair 4 x L&R Leg Rail Pair 4 x Cross Rail 1 x Drive Shaft 1 x Cross Beam 1 x Cross Beam Cover 2 x Leg Beam 2 x Leg Beam Cover 2 x L&R Support Bar Pair www.freewaydesign.net...
  • Page 3 Agile Page 3 Installation Guide - Electric 3 Column Parts: 2 x Power Cord 2 x Power Supply 2 x Handset 2 x Screen Bracket 4 x Levelling Foot 16 x M10x25 24 x M8x10 24 x ST5.0x23 4 x ST3.9x13 2 x M8x20 4 x M5x15 20 x M5x10...
  • Page 4 Agile Page 4 Installation Guide - Electric 3 Column Step 1 16 x M8x10 www.freewaydesign.net...
  • Page 5 Agile Page 5 Installation Guide - Electric 3 Column Step 2 8 x M8x10 www.freewaydesign.net...
  • Page 6 Agile Page 6 Installation Guide - Electric 2 Column Step 3 4 x Adjustable Glide www.freewaydesign.net...
  • Page 7 Agile Page 7 Installation Guide - Electric 3 Column Step 4 16 x M5x10 www.freewaydesign.net...
  • Page 8 Agile Page 8 Installation Guide - Electric 3 Column Step 5 4 x M5x12 www.freewaydesign.net...
  • Page 9 Agile Page 9 Installation Guide - Electric 3 Column Step 6 16 x M10x25 www.freewaydesign.net...
  • Page 10 Agile Page 10 Installation Guide - Electric 3 Column Step 7 www.freewaydesign.net...
  • Page 11 Agile Page 11 Installation Guide - Electric 3 Column Step 8 www.freewaydesign.net...
  • Page 12 Agile Page 12 Installation Guide - Electric 3 Column Step 9 www.freewaydesign.net...
  • Page 13 Agile Page 13 Installation Guide - Electric 3 Column Step 10 16 x ST5.0x22 www.freewaydesign.net...
  • Page 14 Agile Page 14 Installation Guide - Electric 3 Column Step 11 4 x ST3.9x13 www.freewaydesign.net...
  • Page 15 Agile Page 15 Installation Guide - Electric 3 Column Step 12 2 x M8x20 www.freewaydesign.net...
  • Page 16 Agile Page 16 Installation Guide - Electric 3 Column Step 13 4 x M5x15 www.freewaydesign.net...
  • Page 17 Agile Page 17 Installation Guide - Electric 3 Column Step 14 8 x ST5.0x22 www.freewaydesign.net...
  • Page 18 Agile Page 18 Installation Guide - Electric 3 Column Step 15 www.freewaydesign.net...
  • Page 19 Agile Page 19 Installation Guide - Electric 3 Column Completed www.freewaydesign.net...

  • Page 20: Important Notes

    Agile Page 20 Directions For Use IMPORTANT NOTES! Prior to instalment, use and maintenance of the table frame, any installer and any user of the table must study this assembly and operation manual carefully, so as to gain a complete understanding of its contents. WARNING: FAILURE TO COMPLY WITH OR OBSERVE ALL ASSEMBLY, SAFETY AND OPERATION INSTRUCTIONS AND WARNINGS REGARDING THE USE OF THIS PRODUCT MAY RESULT IN SERIOUS BODILY INJURY.

  • Page 21: Maintenance And Defects

    Agile Page 21 Directions For Use MAINTENANCE AND DEFECTS • The table does not require any maintenance by usage as described in chapter 2 in the directions for use. • The table is only to be maintained with a wrung cloth. •...

This manual is also suitable for:

Agile
