Alewings ESC micro MGN Usage Manual

ESC micro Switch MGN
Compact and light magnetic electronic switch
Usage MANUAL
Alewings
v. del Lavoro, 41 20084 Lacchiarella MI ITALY
www.alewings.it info@alewings.it
- When you connect the battery, the device turns on
- Before connecting the ESC micro Switch MGN to any other device, make sure that the voltage of the supplying batteries is lower than
the maximum supply voltage of the device itself
- Don't connect battery with inverted polarity; inversion of polarity damages the device
- Don't connect the ESC micro Switch MGN output to the device you want to supply with inverted polarity;
Inversion of polarity damages both devices
- Don't cause short circuits at the output of the ESC micro Switch MNG; short circuits damage the device
- Durning on and off system of the ESC micro Switch is based on electronic circuits with integrated Hall-effect sensors: they may be
affected by external magnetic fields such as those generated by electric motors or high current carrying cables; so it is necessary to
mount the ESC micro Switch at least 5 cm from these possible sources.
If you don't use the device for more than one week, disconnect the battery.

CONNECTIONS

FIXING:
Place the ESC micro Switch into the fuselage or the receiver box and fix it with some adhesive Velcro; you don't have to make any hole near
the magnetic sensor. Make sure you can bring the magnetic key at least 1 cm near the sensor.
It is always suggested to realize installations assuring the insulating of the device from vibrations.

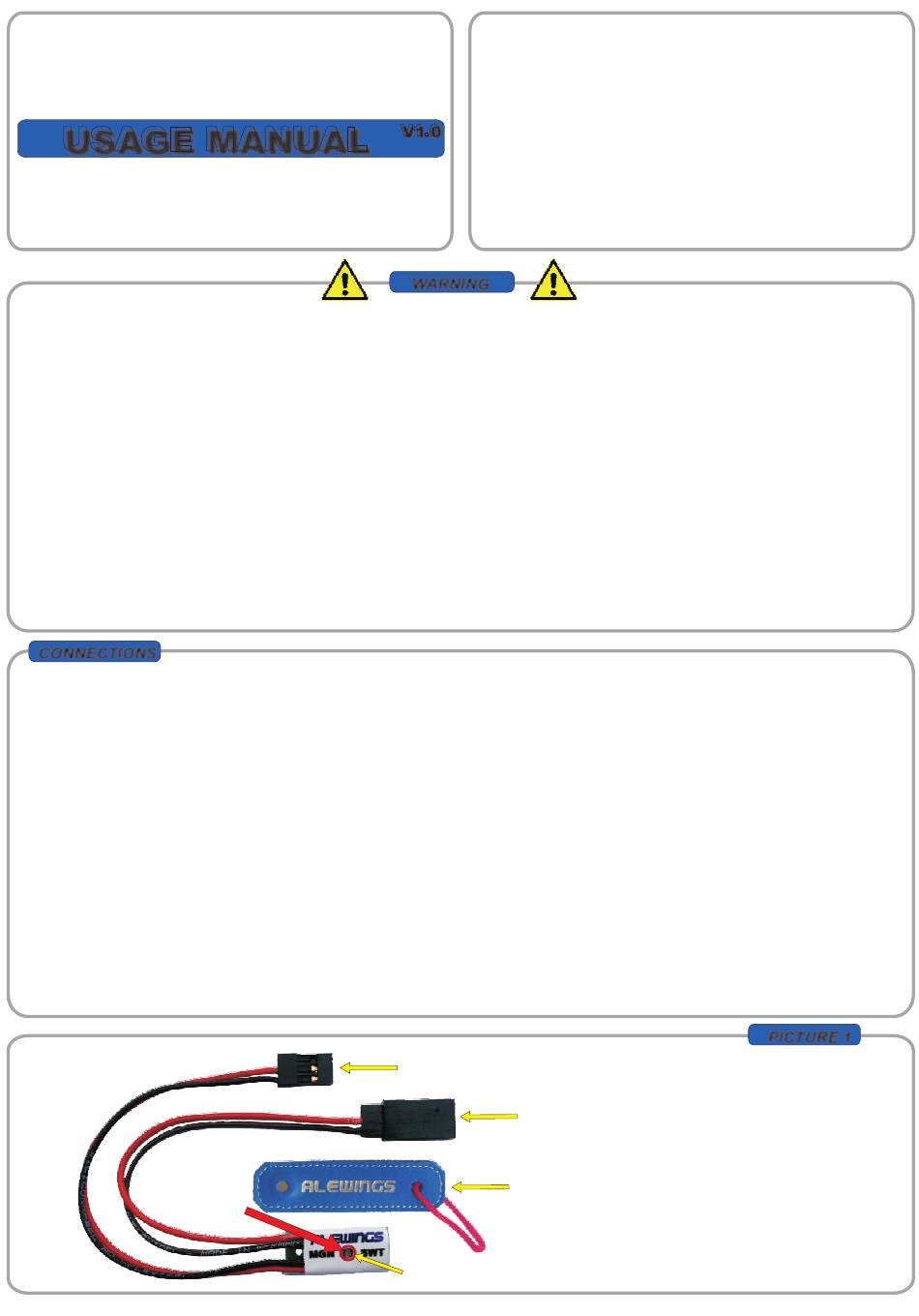

CONNECTIONS ESC micro SWITCH BATTERY: Picture 1
ATTENTION: THE DEVICE TURNS ON (for turning off keep the magnetic key close to the sensor for at least two seconds)
If your battery has a different connector ,the following adaptors are available:
Deans M - UNI item 90050357
MPX M - UNI item 90050358
XT60 M- UNI item 90050359
CONNECTIONS ESC micro Switch MGN DEVICE TO BE SUPPLIED: Picture 2
ATTENTION: before connecting the ESC micro Switch MGN to any device, check its input maximum voltage and make sure that the
battery voltage is lower. THE ESC micro Switch MGN DOESN'T STABILIZE THE OUTPUT VOLTAGE.
Connect the UNI output cable to the device you want to supply.
Hall-effect
Sensor
Cod. 90030211
®
di Alessandro Torri
Dear customer,
thank you for purchasing an ESC micro Switch Alewings.
It is a very compact and light magnetic electronic switch.
V1.0
It is ideal for turning on and off receiver and servos where you have
not too much space such as into particularly narrow fuselages, on
cars or boats; moreover the on/off by magnetic key doesn't require
any hole into fuselage or receiver box.

WARNING

Connect to
the receiver
Connect to
the battery
Magnetic key
Light indicator
PICTURE 1
WARNING:
THE ESC micro Switch MGN
DOESN'T STABILIZE THE OUTPUT VOLTAGE

ALLOWED TYPES OF BATTERY:

4-5 cells NiCd NiMh
2 cells LiPoli
2 cells Life
