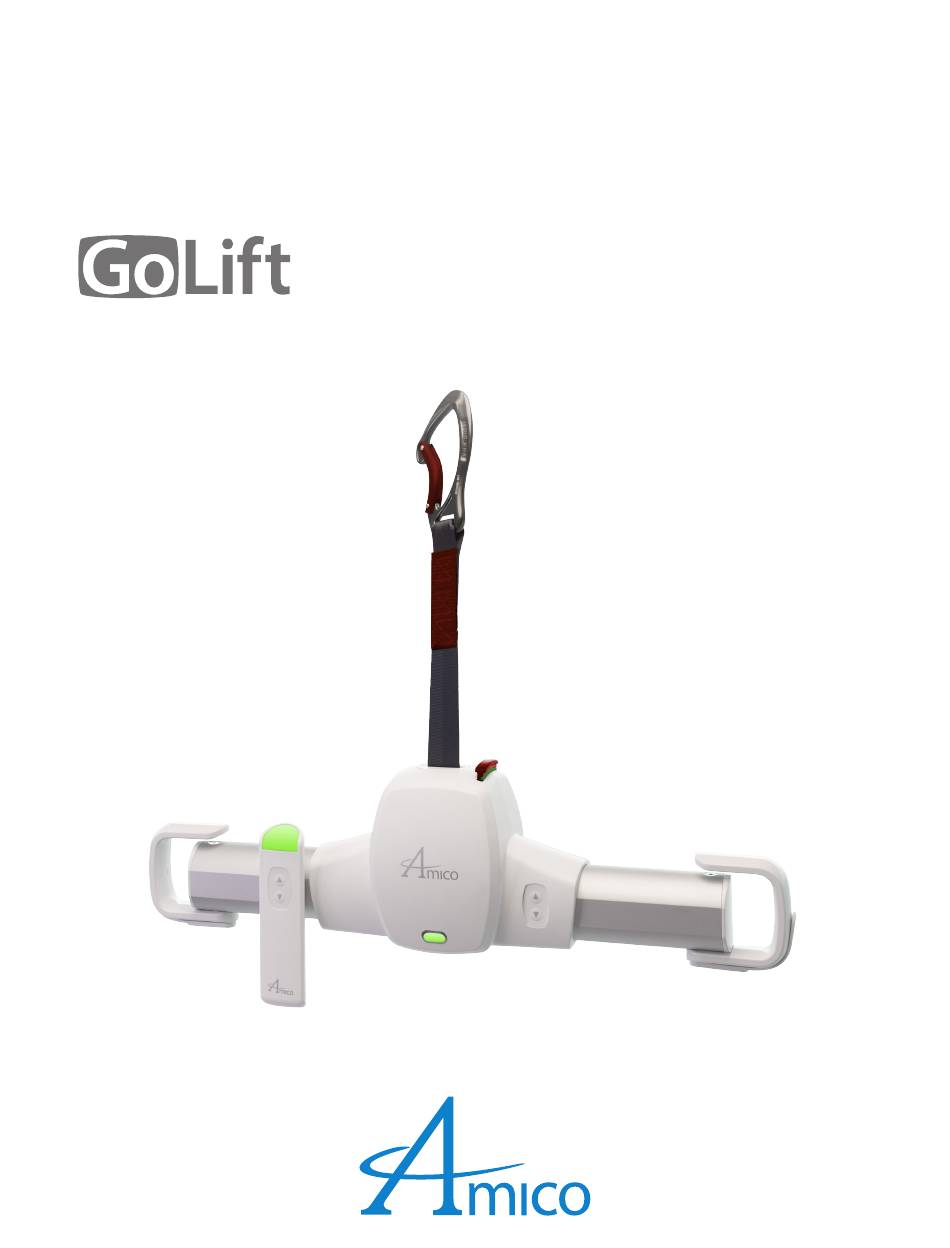

- Page 1 Installation and Operation Instructions Portable 450 Portable 450 w w w . a m i c o . c o m...
-
Page 2: Table Of Contents
Safety Instructions Technical Specifications for Amico GoLift Portable Anatomy of the GoLift Portable Basics in Transferring a Patient Installing the Portable trolley in the Amico PLP Track 9-10 Installing the Endstop on the Amico Track Using the Reacher Bar Connecting the Hand Control to the GoLift Portable... -
Page 3: Introduction
The GoLift Portable weight capacity is 450 lbs. This weight limit must not be exceeded. The Amico GoLift Portable is a fixed lift and can be installed in a variety of track profiles (the trolley can be customized to fit these track profiles) and it also works seamlessly with the Amico GoLift Portable Pendant (PLP) System. -
Page 4: Symbols Used In This Manual
Königsallee 106 GLP450-9999 Serial #: Mfg. Date: 40215 Dusseldorf 1.877.462.6426 Charger: Wall Industries 36V 1.11A 40W Duty Cycle: 1 Min ON / 9 Min OFF Amico Mobility Solutions Corporation Germany 450 lbs (205 kg) Email: amo-service@amico.com Amico Mobility Solutions Corporation... -
Page 5: Safety Instructions
A training program should be established by the facility to familiarize new caregivers with this equipment. • Do not expose the Amico GoLift Portable directly to water. Warranty does not cover any misuse or abuse of the Amico GoLift Portable. -
Page 6: Technical Specifications For Amico Golift Portable
Technical Specifications for Amico GoLift Portable Maximum Lifting Speed: Lift Case: No load: 1 inch/second Flame retardant ABS 150 lbs/68 kg: 0.6 inches/seconds IP27 hand control - 1m water resistance 450 lbs/204 kg: 0.5 inch/seconds IP23 Lift - protected from fingers and water... -
Page 7: Anatomy Of The Golift Portable
Anatomy of the GoLift Portable Lifts up to 450 lbs! Emergency lowering/stop feature Unit controls Quick magnetic hand GoLift Portable weighs Durable all metal gears control connection just 6 lbs Wireless hand control www.amico.com... -
Page 8: Basics In Transferring A Patient
A lifting sling with four to six straps designed for mounting on hooks should be used with the Amico Portable 450 lift. Place the straps on the hooks and make sure the loops are not in the latch so the straps do not unintentionally fall off. -
Page 9: Installing The Portable Trolley In The Amico Plp Track
Never leave the lift unattended in an area such as a Psychiatric Ward with the patient. Installing the Portable Trolley in the Amico PLP Track 1. Remove both the end caps on the PLP Arm. 2. Make sure the portable trolley is inserted correctly in the PLP track. -
Page 10: Installing The Endstop On The Amico Track
5. Fasten all end stops tightly using an adjustable wrench. NOTE: If you are installing the Amico GoLift Portable in an existing track system you must ensure that the max load of the track system is equal or higher than the max load of the Amico GoLift Portable. -
Page 11: Using The Reacher Bar
Capacitive touch hand control – Allows users with limited dexterity to effortlessly operate the unit. Magnetic Hand control connect for quick attachment to the GoLift Portable. Do not place the hand control within 5" of a pacemaker. Patients with pacemakers must follow the instructions provided by their doctors. www.amico.com... -
Page 12: Operating The Golift Portable
Operating the GoLift Portable The Amico GoLift Portable is switched on automatically when a button on the hand control is pressed. The Amico GoLift Portable switches off automatically after approximately three minutes without activation. To replace the battery in the hand control, use a Phillips screwdriver to remove UP button the cover. -
Page 13: Led And Buzzer Functions
After an emergency, the lift must be inspected prior to restoring to use. In order to restore power to the lift, the tab must be gently pulled. Do not press the red tab forcefully. For assistance after an emergency, contact: Amico Service at: amo-service@amico.com or 1.877.462.64266 www.amico.com... -
Page 14: Emergency Lowering
NOTE: The emergency lowering button does not provide a raising function. The failure of any of the lowering devices should be reported to Amico Mobility. In an event of emergency when normal lowering system of the lift malfunctions and the “emergency lowering”... -
Page 15: Cleaning And Disinfection
Take great care to ensure that no liquids get inside the Amico GoLift Portable. The lift is not drip proof or water tight. Failure to protect the lift from liquids may result in damage to the lift and may cause personal injury. -
Page 16: Inspection And Maintenance
Inspection and Maintenance Prior to using the Amico GoLift Portable, the inspections should be conducted per the following schedule: Item Before Use Every Month Annual GoLift Portable • Ensure that end stops are installed • Inspect strap for wear or fraying •... -
Page 17: Golift Portable Accessories
15.4 - 17" / 391 - 432 mm 16.5 - 17.7" / 419 - 450 mm 19 - 20.5" / 483 - 521 mm Washing Instructions 176°F 80°C Normal washing at Do not bleach Tumble dry low Do not iron Do not dry clean indicated temperature www.amico.com... -
Page 18: Gotrack Systems And Support Structure
BREAK ALL EDGES 0.005 - 0.010 BREAK ALL EDGES 0.005 - 0.010 THIS PRINT IS PROPERTY OF AMICO CLINICAL AND IS LOANED IN CONFIDENCE SUBJECT TO RETURN UPON THIS PRINT IS PROPERTY OF AMICO CLINICAL AND IS LOANED IN CONFIDENCE SUBJECT TO RETURN UPON... -
Page 19: Environmental Conditions
Also, try to keep the lift from staying in rooms with a metallic roof where temperatures may increase the allowable operating temperature. References on the Package +50 C° 20% - 90% 700hPa - 1060hPa -10 C° Temperature range Atmospheric Air pressure for transport humidity for transport and storage for transport and storage and storage www.amico.com... -
Page 20: Electro-Magnetic Compliance Data For Amico Golift Portable
Portable RF communications equipment should be no closer than 30 cm to any part of the Amico GoLift Portable 450. Otherwise, degradation of the performance of this equipment could result. - Page 21 Electro-Magnetic Compliance Data For Amico GoLift Portable Guidance and Manufacturer’s Declaration - Electromagnetic Emissions The [EQUIPMENT or SYSTEM] is intended for use in the electromagnetic environment specified below. The customer or the user of the [EQUIPMENT or SYSTEM] should assure that it is used in such an environment.
- Page 22 Electro-Magnetic Compliance Data For Amico GoLift Portable Guidance and Manufacturer’s Declaration - Electromagnetic Emissions The [EQUIPMENT or SYSTEM] is intended for use in the electromagnetic environment specified below. The customer or the user of the [EQUIPMENT or SYSTEM] should assure that it is used in such an environment.
- Page 23 Disposal • The Amico GoLift Portable doesn’t contain any dangerous goods. • The components of the Amico GoLift Portable should be properly disposed at the end of its shelf-life. • Make sure that the materials are carefully separated. • The electrical conducting boards should be submitted to an appropriate recycling proceeding.
-
Page 24: Warranty
Amico Mobility Solutions Corporation warrants its lifting equipment and workmanship to be free from defects for a period of three (3) years from the date of installation. This includes tracks, lift motor, carry bar and accessories. The Amico slings have a warranty of two (2) years. - Page 25 Notes...
- Page 26 Notes...
- Page 27 Notes...
- Page 28 Amico Mobility Solutions Corporation | 122-B East Beaver Creek Road, Richmond Hill, ON L4B 1G6, Canada 600 Prime Place, Hauppauge, NY 11788, USA Toll Free Phone: 1.877.462.6426 | Toll Free Fax: 1.866.440.4986 | Tel: 905.764.0800 | Fax: 905.764.0862 AJW Technology Consulting GmbH Königsallee 106...
