Summary of Contents for OzSpy GPT3G003

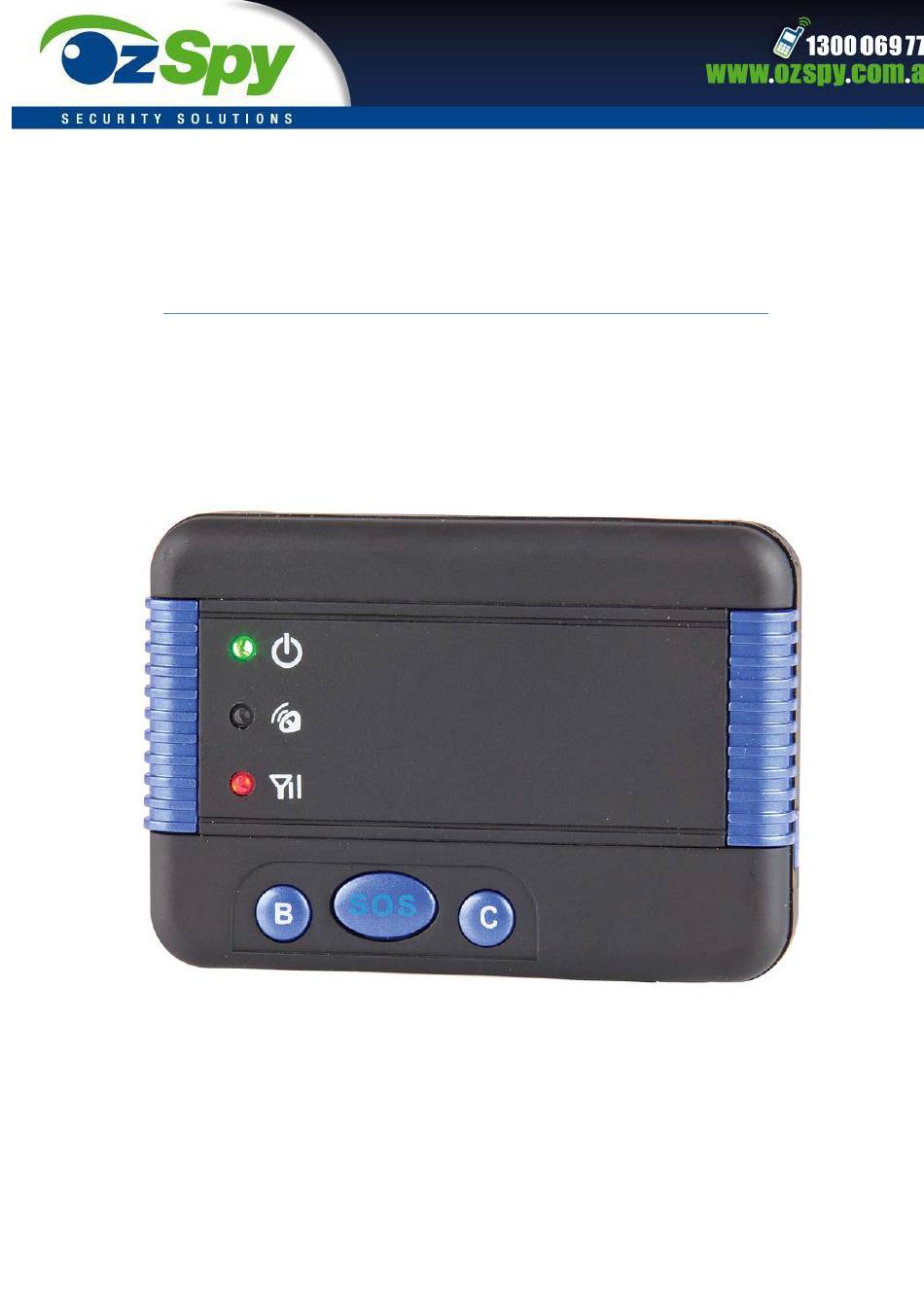

- Page 1 Personal GPS/GSM Personal Tracking Device...
- Page 2 INDEX Usage Packing list Before using Add/Delete/Check Preset Phone Number Change / Check Password Set language Set SMS locate mode after calling Send a SMS trigger SMS locate Set website map link locate mode after calling ...
-
Page 3: Packing List
Usage Our free latitude and longitude located website: http://www.followmegps.com Our free link located map website: http://www.followmegps.mobi Packing list GPS tracker, car charger, USB charging cable, manual. USB Charging Wire Car Adaptor Before Use Purchase a GSM phone SIM card which has SMS service and incoming caller ID service, and then to install to the tracker. - Page 4 Green Power LED Flash three times : GSM and GPS working well but battery is low Green Power LED Flash four times : GSM working well, battery low & no GPS signal Green Power LED ON continuously : Searching network Green Power LED OFF continuously : Power off Blue GPS LED ON...
- Page 5 calling, only preset phone number can do these operation. Add preset phone number by SMS Send SMS“ADDPHONE*123456*A*number”(Not including the quotation marks “ and ”, Number means the telephone number you want preset, the following is same) to tracker is OK, “ADDPHONE”...
- Page 6 Set Language: Send SMS “ENGLISH*123456” to the tracker, “ENGLISH” is a command, “123456” is password; if the operation is successful, the tracker will send back the information “ Set Language to English” , If the command or password is not right, the operation is fault, the tracker will send back information “Bad Command ”...
- Page 7 The fourth line is the direction of the tracker (I t is the direction of the tracker moving to, from the north it is 0, and the east is 90, and the south is 180, and the west is 270, full circle is 360, it is clockwise, the direction maybe is not right if the object is not moving because of the GPS precision).
- Page 8 location to the caller. The user can use the mobile phone to click the website link to visit internet, and the location will display on the map of your phone(the mobile phone SIM card needs the GPRS function enabled). If the tracker has no preset number, any phone call can trigger the tracker to locate immediately, if the tracker has a preset number, then only preset phone call can trigger the tracker to locate immediately.
- Page 9 Set Object Move Alarm (Can be used as a car alarm): Send SMS “SETMOVE*123456” to tracker, “SETMOVE” is a command, “123456” is password, the tracker will send back the information “SETMOVE OK” or “SETMOVE FAIL” to indicate the operation if it has success or failed。 After set the object move alarm, the system will monitor the object continuously, if the object is moving, the tracker will send alarm and location information by SMS to who enable the alarm, and every 5 minutes the tracker will send alarm information by SMS until the tracker stop...
- Page 10 please add zero to 9 digits, if the command and password is right, the tracker will send back the information “AREASET OK” or “AREASET FAIL” to indicate the operation is success or failed. After set the over area alarm, the system will locate every 5 minutes and check the object is in the preset area or not, if the object is go out the area, then the tracker will send SMS to the phone who enable the alarm.
- Page 11 minutes, interval time is from 00 to 99, must be 2 digits, “030” is the preset total tracking times, “T” means times, the tracking time is from 000 to 255, must be 3 digits, “15M030T” means every 15 minutes locate one time, total 30 times. After setting the real tracking mode, the tracker will locate the object once every preset interval time and send SMS to preset phone with the location information, when it reaches to the max locate times it will cancel the tracking mode automatically.
- Page 12 is password; “10” is interval time, it means every 10 minutes the GPS will turn on and receive the location one time, the interval digit must be a 2 number, from 00 to 99, Unit is minute, if the time is longer then the power saving is longer, 00 means GPS normally ON, and 99 means GPS normally OFF, (The factory default is 99, means GPS normally OFF, when phone to the tracker to trigger the locating, GPS turn on.
- Page 13 display and SMS service function, and the SIM card PIN code should be disabled. The tracker has no response, and no ring, please confirm the tracker has been powered on and the SIM card has enough charge, and the mobile phone’s reception is strong enough. Instruction List Function SMS Information...
- Page 14 SETAREA*12345 SET AREA OK Point A must be at 6*A22.670000N1 The alarm will be: Set over area Any mobile phone can the east bottom of 14.140000E*B22. OverArea point B alarm 680000N114.140 location 000E information SETSPEED OK Reply to The alarm will be: Set over speed SETSPEED*1234 Any mobile phone can...
- Page 15 Working Temperature C to +55 GPS Hot Start Time 1 second Storage Temperature C to +80 Absolute Temperature C to +70 Battery Li-ion 800mAh (BP-6M)
