AVANT A21342 Operator's Manual

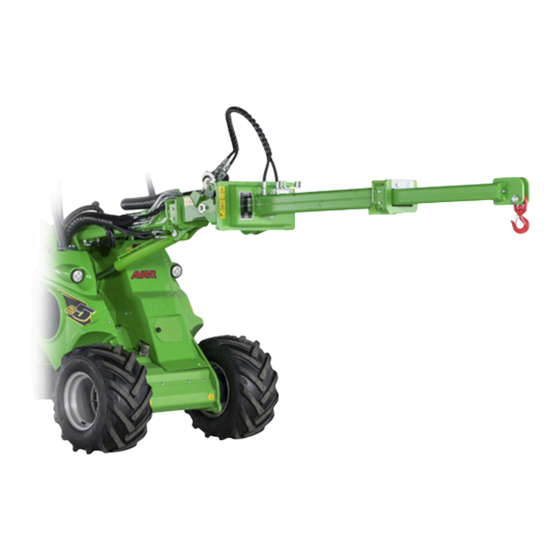

Telescopic jib boom
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
English
Telescopic jib boom 2019 2
Operator's Manual for Attachment
Telescopic jib boom
Product number
A21342
www.avanttecno.com
A433746 2019 2 EN 2018-

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A21342 and is the answer not in the manual?

Questions and answers

Related Manuals for AVANT A21342

Summary of Contents for AVANT A21342

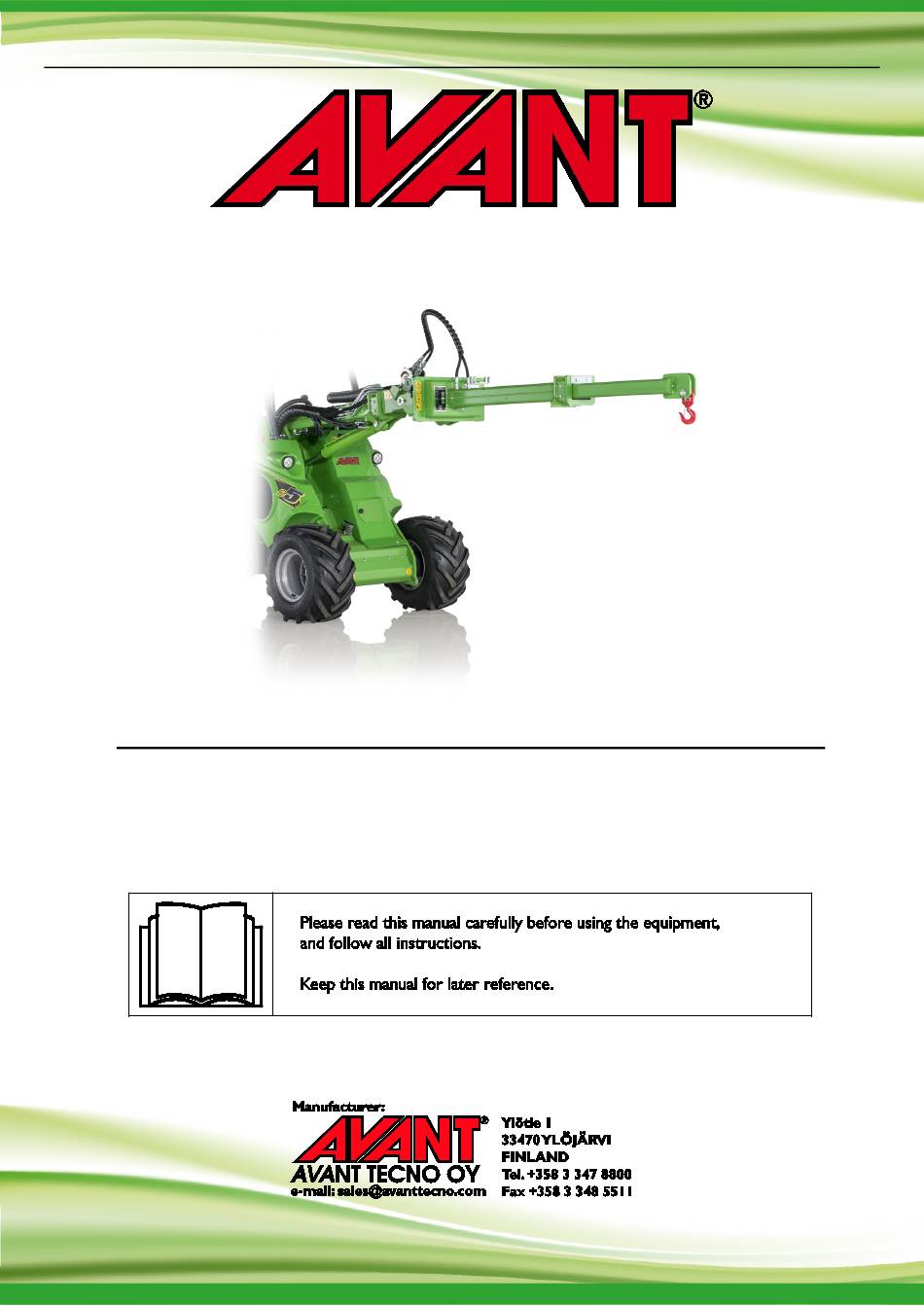

  • Page 1 English Telescopic jib boom 2019 2 Operator's Manual for Attachment Telescopic jib boom Product number A21342 www.avanttecno.com A433746 2019 2 EN 2018-...
  • Page 2 Telescopic jib boom 2019 2...

  • Page 3: Table Of Contents

    Telescopic jib boom 2019 2 CONTENTS 1. FOREWORD ............................4 Warning symbols used in this manual ..........................5 2. DESIGNED PURPOSE OF USE ......................6 3. SAFETY INSTRUCTIONS FOR USING THE ATTACHMENT ............7 Personal protective equipment ........................... 9 Safe shutdown procedure ............................ 10 4.

  • Page 4: Foreword

    If you sell or transfer the equipment, be sure to hand over this manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant dealer or from the manufacturer.

  • Page 5: Warning Symbols Used In This Manual

    5 (34) Warning symbols used in this manual The following warning symbols are used throughout this manual. They indicate factors that must be taken into account to reduce the risk of personal injury or damage to property: WARNING: SAFETY ALERT SYMBOL This symbol means: “Warning, be alert! Your safety is involved!”...

  • Page 6: Designed Purpose Of Use

    2. Designed purpose of use The AVANT Telescopic jib boom is an attachment is intended to be used with AVANT multi purpose loaders that are listed in Table 1. The attachment is especially useful when moving objects that are not meant to be lifted with pallet forks.

  • Page 7: Safety Instructions For Using The Attachment

    7 (34) 3. Safety instructions for using the attachment Please bear in mind that safety is the result of several factors. The loader-attachment combination is highly powerful and improper or careless use or maintenance may cause serious personal injury or property damage.
  • Page 8 8 (34)  Risk of tipping over - Keep loads close to ground while driving. Carrying heavy loads can shift the centre of gravity of the loader and lead to tipping over of the loader. For the best stability always transport loada as low and close to the loader as possible, with the telescopic boom completely retracted, to keep the centre of gravity WARNING low.

  • Page 9: Personal Protective Equipment

    9 (34) Risk of crushing - Going under the loader boom or an attachment can cause serious injury or death. Never go under the loader boom and prevent others from getting near lifted boom or attachment. Going under a raised attachment or loader boom DANGER is dangerous, as the boom may lower due to loss of stability, mechanical fault or when other person operates the controls of the loader.

  • Page 10: Safe Shutdown Procedure

    10 (34) 3.2 Safe shutdown procedure Safe stopping of the attachment, before going near the attachment: Always stop the attachment following safe stopping procedure before leaving the driver's seat. Safe stopping procedure prevents all unintentional movements of the attachment. Note that the loader boom can move down even if the engine of the loader is turned off.

  • Page 11: Technical Specifications

    Compatible AVANT loaders: See Table 1 * With Avant 700 series, loader boom and telescopic jib boom fully extended. 4.1 Safety labels and main components of the attachment Listed below are the labels and markings on the attachment. They must be visible and readable on the equipment.
  • Page 12 12 (34) Table 3 - Decal locations and warning messages Decal Warning message Misuse hazard - Read instructions before 1 A36771 use. Crushing hazard - Do not go under a 2 A36772 raised attachment; stay away from raised equipment. Pinching and cutting hazard, keep clear of moving parts, do not leave the 3 A36803 equipment running.

  • Page 13: Attaching The Attachment

    Do not stay in the area between the attachment and the loader. Mount the attachment only on level surface. WARNING Never move or lift an attachment that has not been locked. Avant quick coupling system: Step 1:  Lift the quick attach plate locking pins up and turn them backwards into the slot so that they are locked in the upper position.
  • Page 14 If your loader is not listed in Table 1 on page 6, ask your Avant dealer before using this attachment.

  • Page 15: Connecting And Disconnecting Hydraulic Hoses

    5.1 Connecting and disconnecting hydraulic hoses On Avant loaders the hydraulic hoses are connected using the multi connector system. If you have an Avant 300-700 series loader with the conventional quick couplers and wish to change to the multi connector system, contact your Avant dealer or service point for instructions or installation services.
  • Page 16 16 (34) Disconnecting hydraulic hoses: Before disconnecting the fittings, lower the attachment to safe position on solid and level surface. Turn the control lever of the auxiliary hydraulics to its neutral position. When uncoupling the attachment, always disconnect the hydraulic couplings before unlocking the quick attach plate, to prevent hose damage and any oil spills.

  • Page 17: Operating The Attachment

    17 (34) 6. Operating the attachment Check the attachment and the operating environment once more before starting to work, and that all obstacles have been removed from the operating area. Quick inspection of the equipment and the operating area before use are parts of ensuring safety and the best performance of the equipment.

  • Page 18: Checks Before Use

    18 (34) 6.1 Checks before use Use only when all pins are locked and secured in place.  Check the general condition of the attachment and the loader.  Check that the lifting hook is intact and that its safety latch is in good condition. Do not use damaged ...

  • Page 19: Operation

    19 (34) 6.2 Operation The Safe Working Load limit for the attachment is 800 kg. Never handle loads that are heavier than 800 kg. The jib boom can get damaged as a result, and the load may fall. The maximum load that can be safely lifted with a loader depends on the load handling capacity of the loader. See Rated operating capacity on page 22 in this manual, and the operator's manual of the loader for more information.

  • Page 20: Using The Telescopic Boom

    20 (34) Risk of tipping over - Do not drag heavy loads from e.g. shelf. Do not reverse with the loader while simultaneously dragging load. Make sure that the loader can handle the load being lifted. When lifting load from a high level, the loader could tip forward when DANGER reversing with the loader.
  • Page 21 21 (34) Controlling the telescopic jib boom: Move auxiliary hydraulics control lever towards locking position electric buttons of the optional electric joystick) to extend the telescopic jib boom. The lever should not be left locking position. Move the lever away from the locking position to retract the boom.

  • Page 22: Rated Operating Capacity

    22 (34) 6.2.3 Rated Operating Capacity Always follow the operator's manual of the loader to determine the Rated Operating Capacity of each loader model. A load diagram is presented in the operator's manual of each loader model. With the diagram, the load handling capacity of the loader can be evaluated according to the distance of the load hook from the loader.
  • Page 23 23 (34) Risk of tipping over - Keep the telescopic boom retracted when handling heavy loads. Do not extend the telescopic boom, when the load approaches the lifting capacity of the loader or when the load has been lifted high. WARNING ...
  • Page 24 24 (34) 6.2.3.1 Rated Operating Capacity - 400-600 series...
  • Page 25 25 (34) Table 5 - Telescopic Jib Boom A21342- Rated Operating Capacity - Avant 500, 600 series Position of loader boom AVANT loader model 235 kg 170 kg 140 kg 195 kg 140 kg 120 kg 300 kg 220 kg...
  • Page 26 26 (34) 6.2.3.2 Rated Operating Capacity - e5 and e6 Table 6 - Telescopic Jib Boom A21342- Rated Operating Capacity - Avant e5 and e6 Position of loader boom AVANT loader model 320 kg 240 kg 195 kg 270 kg...
  • Page 27 27 (34) 6.2.3.3 Rated Operating Capacity - 700 series Table 7 - Telescopic Jib Boom A21342- Rated Operating Capacity - Avant 700 series Position of loader boom AVANT loader model 475 kg 370 kg 340 kg 285 kg 410 kg...

  • Page 28: Working On Uneven Ground

    28 (34) 6.3 Working on uneven ground Extra caution is needed when using the equipment on inclined terrains and slopes. Drive slowly especially on inclined, uneven, or slippery surfaces, and avoid sudden changes in speed or direction. Operate the controls of the loader with careful and smooth movements.

  • Page 29: Maintenance And Service

    Finding any fault means that the hydraulic hose or component must be replaced and the equipment must not be used until it is repaired. Spare parts are available from your nearest AVANT retailer or authorised service point. Leave the repair work to professional service technicians, if you don’t have adequate knowledge and experience about hydraulic assemblies and how to perform the repairing safely.

  • Page 30: Cleaning The Attachment

    If any of the points listed above is not satisfactory during inspection the damaged parts must be replaced, or the attachment must be taken to an authorized Avant service. If the hook or its pin need to be replaced it must meet the original strength and load specifications. Use only original parts to ensure that the hook mets the original specifications.

  • Page 31: Lubrication

    31 (34) 7.4 Lubrication There are 2 lubricating points on the Telescopic jib boom, to which a small amount of lubricant is added regularly. Retract the boom completely before adding the lubricant. Appropriate lubrication interval depends heavily on operating conditions, but lubricant must be added at least after every 10 hours of use.

  • Page 32: Warranty Terms

    32 (34) 8. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) from the date of purchase for the attachment it manufactures. The warranty covers repair costs as follows:  Work costs are covered, if the repair is not performed at the factory.
  • Page 33 SFS-EN ISO 12100, SFS-EN ISO 4413 Mallit / Modeller / Models Avant Hydraulitoiminen teleskooppinostopuomi; Avant-kuormaajan työlaite Hydraulisk teleskopisk lyftbom; arbetsredskap för Avant lastare A21342 Hydraulic telescopic jib boom; attachment for Avant loaders 6.3.2019 Ylöjärvi, Finland Risto Käkelä, Toimitusjohtaja / Verkställande direktör / Managing Director...
