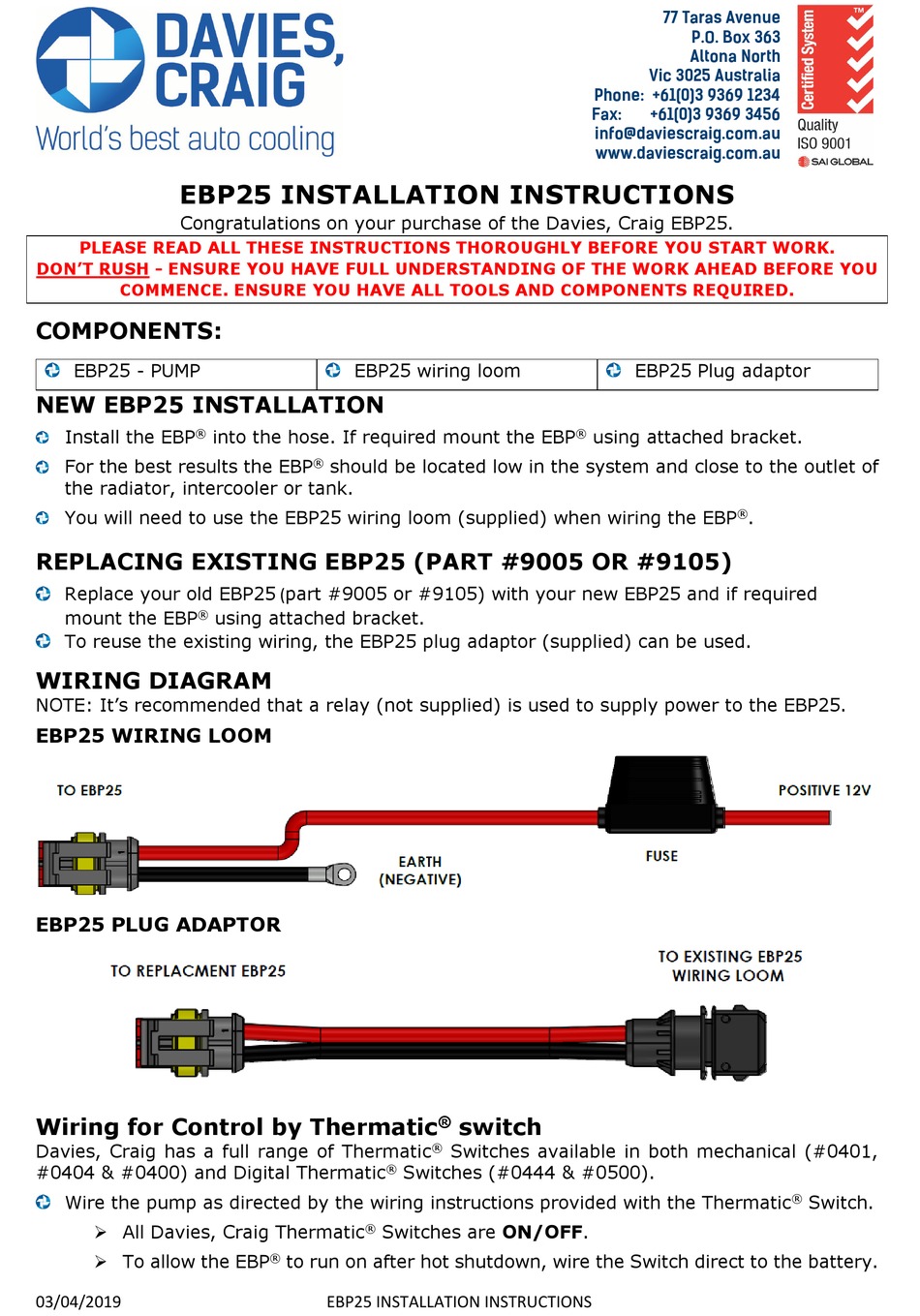

Davies Craig EBP25 Installation Instructions

EBP25 INSTALLATION INSTRUCTIONS
Congratulations on your purchase of the Davies, Craig EBP25.
PLEASE READ ALL THESE INSTRUCTIONS THOROUGHLY BEFORE YOU START WORK.
DON'T RUSH - ENSURE YOU HAVE FULL UNDERSTANDING OF THE WORK AHEAD BEFORE YOU
COMMENCE. ENSURE YOU HAVE ALL TOOLS AND COMPONENTS REQUIRED.
COMPONENTS:
EBP25 - PUMP
NEW EBP25 INSTALLATION
Install the EBP
®
For the best results the EBP
the radiator, intercooler or tank.
You will need to use the EBP25 wiring loom (supplied) when wiring the EBP
REPLACING EXISTING EBP25 (PART #9005 OR #9105)
Replace your old EBP25 (part #9005 or #9105) with your new EBP25 and if required
mount the EBP
®
To reuse the existing wiring, the EBP25 plug adaptor (supplied) can be used.
WIRING DIAGRAM
NOTE: It's recommended that a relay (not supplied) is used to supply power to the EBP25.
EBP25 WIRING LOOM
EBP25 PLUG ADAPTOR
Wiring for Control by Thermatic
Davies, Craig has a full range of Thermatic
#0404 & #0400) and Digital Thermatic
Wire the pump as directed by the wiring instructions provided with the Thermatic
 All Davies, Craig Thermatic
 To allow the EBP
03/04/2019
EBP25 wiring loom
into the hose. If required mount the EBP
® should be located low in the system and close to the outlet of
using attached bracket.
®
Switches are ON/OFF.
®
to run on after hot shutdown, wire the Switch direct to the battery.
®
EBP25 INSTALLATION INSTRUCTIONS
®
switch
®
Switches available in both mechanical (#0401,
®
Switches (#0444 & #0500).
