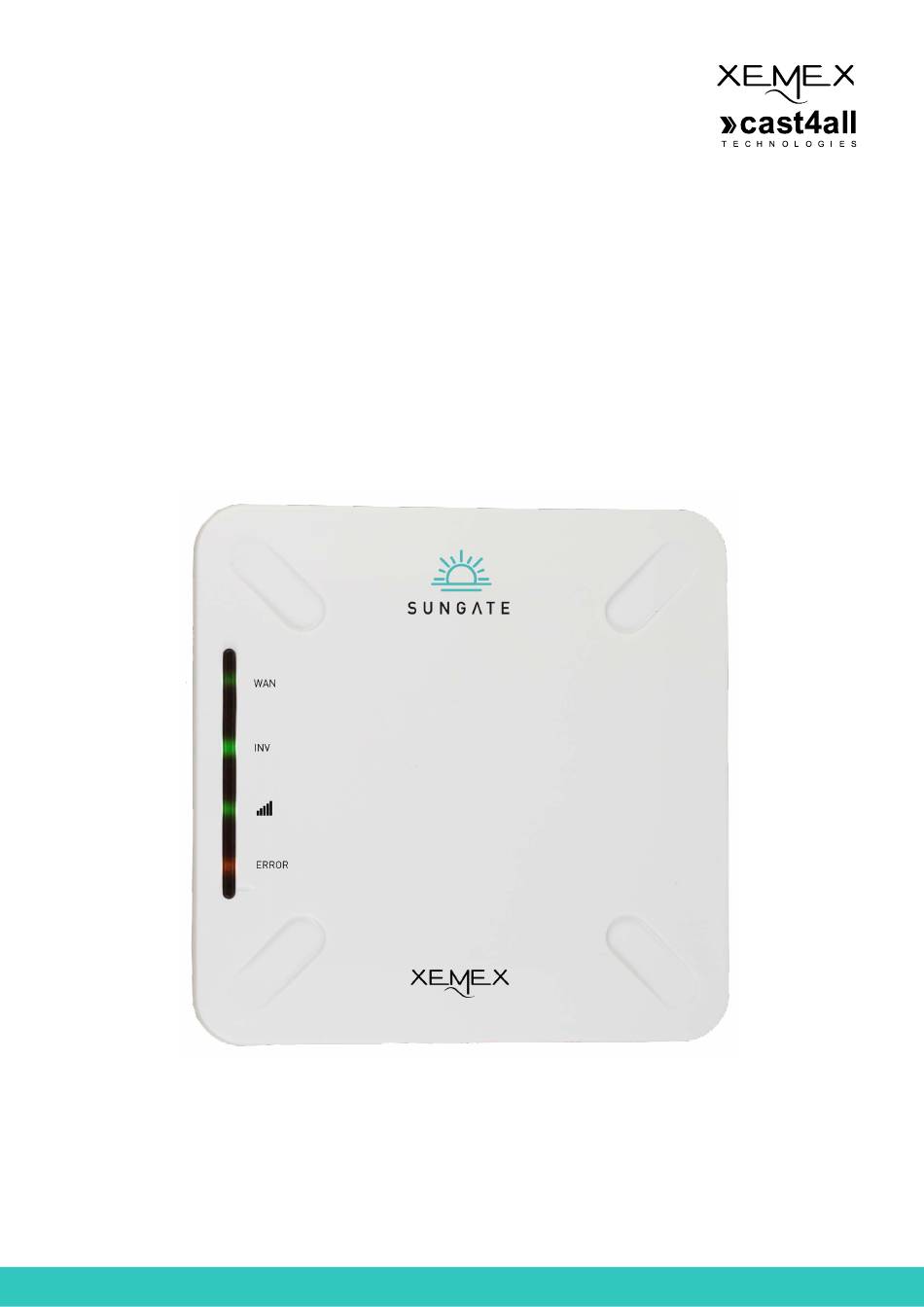

- Page 1 Installation Manual SUNGATE WatchTalk® Installationmanual SUNGATE...
-
Page 2: Table Of Contents
Table of contents 1. Introduction 2. Product description 2.1 Top view 2.2 Side view 2.3 LEDS 2.3.1 WAN LED 2.3.2 INV LED 2.3.3 RSSI LED 2.3.4 ERROR LED 2.4 Connectors 2.4.1 RS-485 CON1 - Push IN TERMINAL 2.4.2 RS-485 CON2 - RJ45 TERMINAL 2.4.3 DC CON - Power Jack 3. -
Page 3: Introduction
1. Introduction This document describes the installation of the SUNGATE module, the XEMEX/Cast4All Invertor Monitoring solution. Important: this installation manual does not replace the invertor installation manual, i.e. also follow the installation and safety guidelines from the invertor manual! 2. Product description 2.1 Top view... -
Page 4: Leds
2.3 LEDS 2.3.1 WAN LED The WAN LED gives feedback about the WAN modem status: Not lit: Searching for network Blinking: Registered to the network Continuously on: IP assigned 2.3.2 INV LED The INV LED gives feedback about the RS485 communication with the invertor. Not lit: SUNGATE not powered Blinking:... -
Page 5: Connectors
2.4 Connectors 2.4.1 RS-485 CON1 – PUSH IN TERMINAL A(+) B(-) Shield 2.4.2 RS-485 CON2 – RJ45 CONNECTOR RS-485 A (+) RS-485 B (-) RS-485 A (+) RS-485 B (-) DC IN 6.5 V … 18 V (nominal 7 V) DC IN 6.5 V …... -
Page 6: Connection With Pv Invertors
3. Connection with PV invertors 3.1 ZEVERSOLAR (Tested with ZeverSolar Model Zeverlution 3000S) RS-485 DC Power ZeverSolar DC Adaptor SUNGATE Invertor (optional) RJ-45 RJ-45 (optional) • Connect the ZeverSolar invertor to the SUNGATE by an RJ-45 cable. • At the SUNGATE side, use connector RS-485 CON2 (RJ-45). •... -
Page 7: Growatt 2500Mtl-S
3.2 GROWATT 2500MTL-S … 5500MTL-S (Tested with Growatt Model 3600MTL-S) RS-485 DC Power Growatt DC Adaptor SUNGATE Invertor (mandatory) Screw Push-in (mandatory) terminal • Connect the Growatt invertor to the SUNGATE by a data cable (2 data lines + shield). •... -
Page 8: Solaredge Hd-Wave
3.3 SOLAREDGE HD-WAVE RS-485 DC Power SolarEdge DC Adaptor SUNGATE Invertor (mandatory) Screw Push-in (mandatory) terminal • Connect the SolarEdge invertor to the SUNGATE by a data cable (2 data lines + shield). • At the SUNGATE side, use connector RS-485 CON1 (Push In terminal): A(+) B(-) Shield... -
Page 9: Solis Mini 4G
3.4 SOLIS MINI 4G RS-485 DC Power Solis mini 4G DC Adaptor SUNGATE Invertor (mandatory) 4-PIN RJ-45 (mandatory) terminal circular • Connect the Solis mini 4G invertor to the • At the SUNGATE side, use connector SUNGATE by dedicated data cable: RS-485 CON2 (RJ-45 terminal): •... -
Page 10: Installation Steps
4. Installation steps Step Description Remarks Connect the appropriate RS-485 data cable • Use guidelines from chapter 3 for specific cable and between the SUNGATE and the invertor. connection info. • Also use guidelines from the invertor manual + follow safety instructions from invertor manufacturer! Connect the DC adapter If applicable, see chapter 3. - Page 11 To register and connect the Sungate to the Cast4All platform, please refer to the manual linked here, scan the QR code or visit: docs.cast4all.solar Installationmanual SUNGATE...
