Hobie 84500111 H-BAR Installation Instructions

#84500111 H-BAR

INSTALLATION INSTRUCTIONS

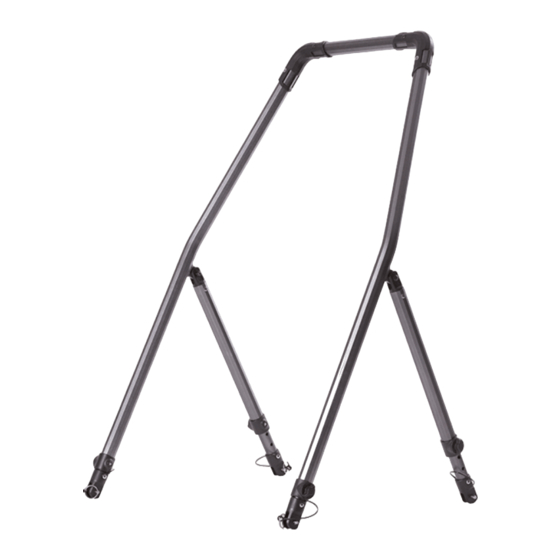

Product Overview

The H-Bar ads utility and options to your Hobie Mirage Pro Angler kayak. Designed with the stand-up angler

in mind, the H-Bar not only provides standing stability, but a great support platform for entering and exiting

your kayak. Use the H-Bar to pull your self up and make a cast to that feeding fish. Made from clear-coated

anodized aluminum, the H-Bar is light, strong, and quiet so fish don't spook. Mount accessories on the H-Bar

like fishfinders or rod holders or leave it clear for a stand-up paddling. Add a stripping basket to the front for

snag-free fly fishing. Cast further while you lean against the foam pad in comfort. Remove two pins and the

H-Bar folds away in seconds, leaving your front hatch and cockpit area fully accessible.

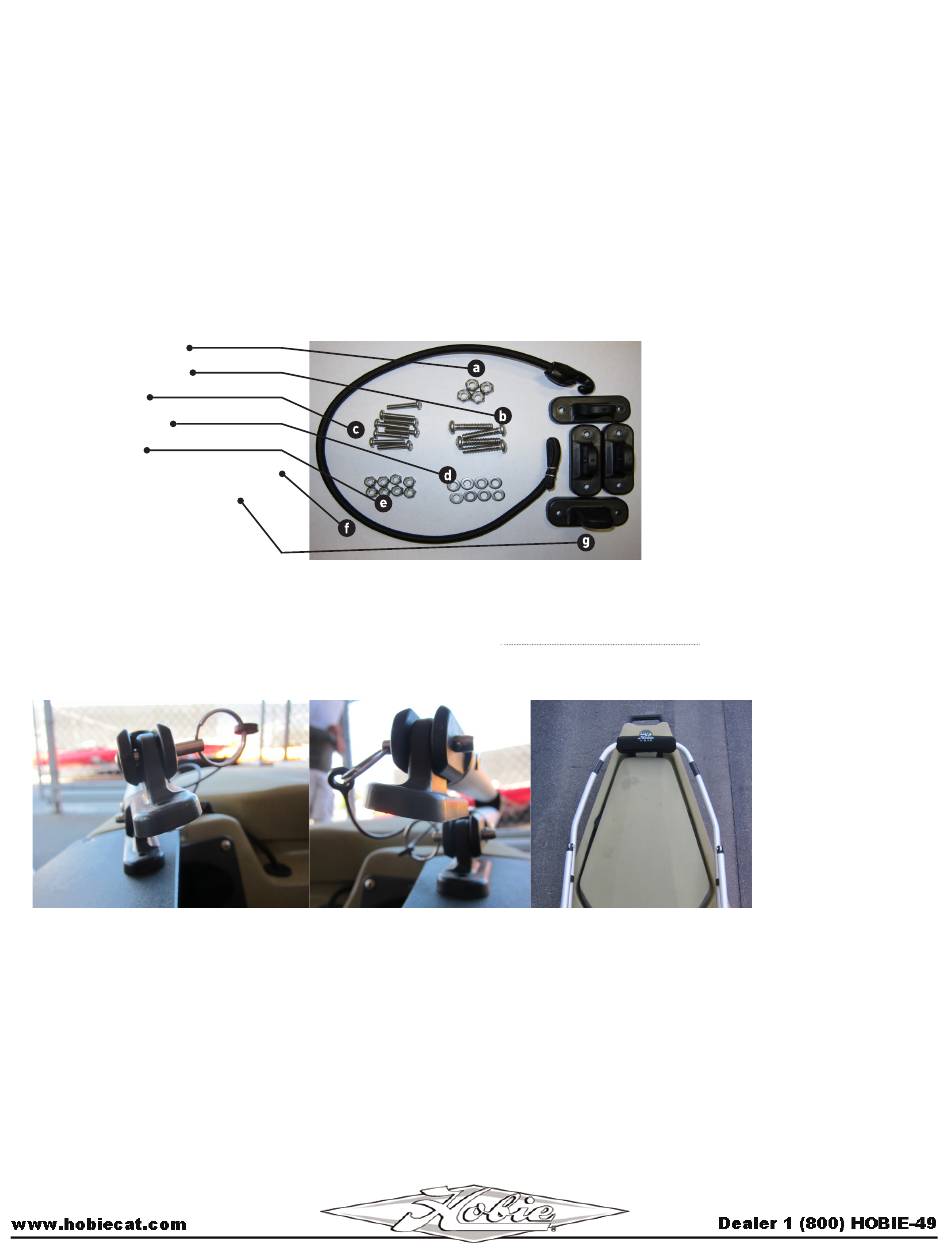

a. (4 qty.) Large Nuts

b. (4 qty.) Large Bolts

c. (8 qty.) Bolts

d. (8 qty.) Washers

e. (8 qty.) Nuts

f. Attachment Bungee® with Hook

g. (4 qty.) Mounting Brackets

h. H-Bar

Installation Instructions

There is an H-Bar installation video available on our YouTube channel (http://youtu.be/dpxsa5GDQTw)

Attach the mounting brackets to the H-Bar frame using the pins. The protrusions of the mounting brackets should be facing up and

inwards. Lay the frame of the H-Bar with the mounting brackets attached on the mounting boards of the Pro Angler with the front of the

frame clearing the front hatch. This will provide you with a good idea of how the H-Bar will lie when it is in the down position.

Page 1 of 4

Revised 10/11/11

Table of Contents

Do you have a question about the 84500111 H-BAR and is the answer not in the manual?

Page 1 INSTALLATION INSTRUCTIONS Product Overview The H-Bar ads utility and options to your Hobie Mirage Pro Angler kayak. Designed with the stand-up angler in mind, the H-Bar not only provides standing stability, but a great support platform for entering and exiting your kayak.
Page 2 #84500111 H-BAR Page 2 of 4 INSTALLATION INSTRUCTIONS STEP: 2 With the H-Bar in the desired position, drill a pilot hole on the front mounting brackets and attach them with one bolt each to hold the H-Bar in place. The legs of the H-Bar can be flexed outward a little on each side to center the mounting brackets better on the mounting boards.
Page 3 #84500111 H-BAR Page 3 of 4 INSTALLATION INSTRUCTIONS STEP: 4 Now we know where the mounting brackets will need to be installed so we can finish the installation off. Use the remaining bolts, washers and nuts to install the mounting brackets.
Page 4 #84500111 H-BAR Page 4 of 4 INSTALLATION INSTRUCTIONS STEP: 6 For transport, put the H-Bar in the down position; loop the bungee through the front handle of your Pro Angler and through the H-Bar. Connect the hook to the loop to hold it in place.
