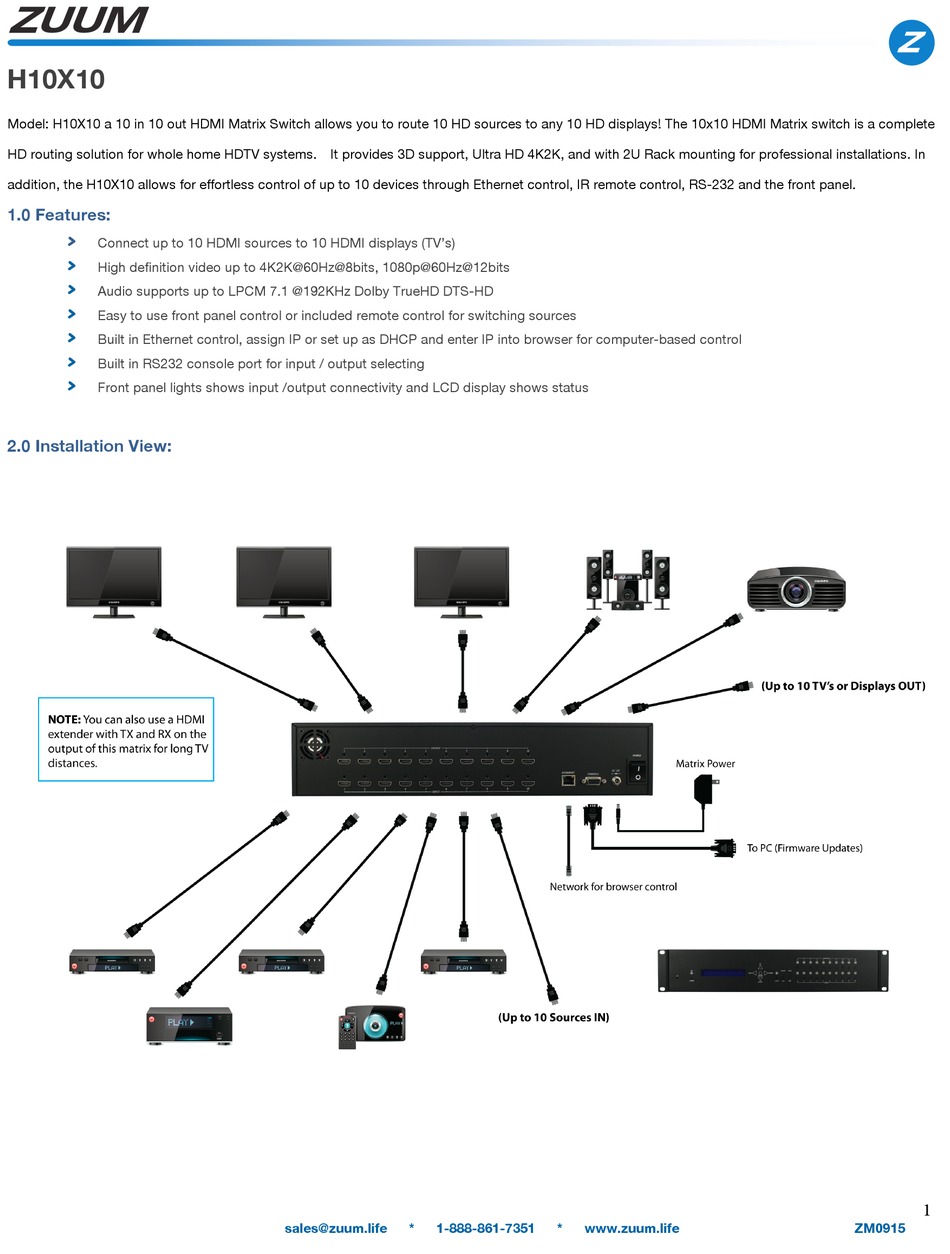

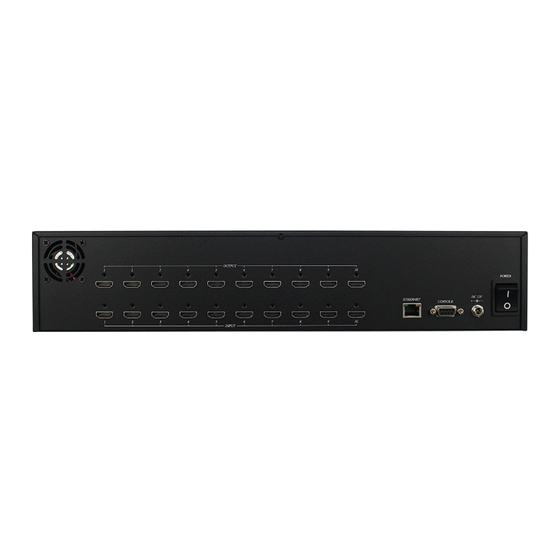

H10X10
Model: H10X10 a 10 in 10 out HDMI Matrix Switch allows you to route 10 HD sources to any 10 HD displays! The 10x10 HDMI Matrix switch is a complete
HD routing solution for whole home HDTV systems. It provides 3D support, Ultra HD 4K2K, and with 2U Rack mounting for professional installations. In
addition, the H10X10 allows for effortless control of up to 10 devices through Ethernet control, IR remote control, RS-232 and the front panel.
1.0 Features:
>
Connect up to 10 HDMI sources to 10 HDMI displays (TV's)
>
High definition video up to 4K2K@60Hz@8bits, 1080p@60Hz@12bits
>
Audio supports up to LPCM 7.1 @192KHz Dolby TrueHD DTS-HD
>
Easy to use front panel control or included remote control for switching sources
>
Built in Ethernet control, assign IP or set up as DHCP and enter IP into browser for computer-based control
>
Built in RS232 console port for input / output selecting
>
Front panel lights shows input /output connectivity and LCD display shows status
2.0 Installation View:
sales@zuum.life
*
1-888-861-7351
*
www.zuum.life
1
ZM0915

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H10X10 and is the answer not in the manual?

Questions and answers

Related Manuals for ZUUM H10X10

Summary of Contents for ZUUM H10X10

  • Page 1 H10X10 Model: H10X10 a 10 in 10 out HDMI Matrix Switch allows you to route 10 HD sources to any 10 HD displays! The 10x10 HDMI Matrix switch is a complete HD routing solution for whole home HDTV systems. It provides 3D support, Ultra HD 4K2K, and with 2U Rack mounting for professional installations. In addition, the H10X10 allows for effortless control of up to 10 devices through Ethernet control, IR remote control, RS-232 and the front panel.

  • Page 2: Front Panel Indications

    Turn off selected output, could be 1 ~ 10 or ALL. When you press OFF the second line of LCD will show IN and flashing, select the output 1 ~ 10 or ALL then press ENTER OUTPUT 1 ~ 10 Fast switch output INPUT 1 ~ 10 Fast switch input sales@zuum.life 1-888-861-7351 www.zuum.life ZM0915...
  • Page 3 The Matrix will jump to channel setting screen after 10 seconds, press the MENU key to enter the main OUT 1 Main MENU Option: *1 - SWITCH *2 - SCENE *3 - ETHERNET *4 - EDID *5 - REMOTE ID *6 - VERSION sales@zuum.life 1-888-861-7351 www.zuum.life ZM0915...
  • Page 4 1 2 3 4 5 6 7 8 9 10 Save: Save current channel setting, press UP or DOWN to select the number and ENTER to save. SAVE 1 4.3 Ethernet * IP Address Subnet Mask Gateway IP DHCP Client Media Type MAC Filter sales@zuum.life 1-888-861-7351 www.zuum.life ZM0915...
  • Page 5 Media Type AUTO This function can setup MATRIX host intranet “Media Type, press the ENTER, the second row will flash, then press the UP or DOWN button to select AUTO、 10MHalf、10MFull、100MHalf、100MFull, press ENTER to complete the setting. sales@zuum.life 1-888-861-7351 www.zuum.life ZM0915...

  • Page 6: Copy Mode

    0 to 9, total 10 groups. (See 5.1) NOTE: These settings on IR1 remote control have to be done the first time you use the IR1 or when you change the batteries. ＋ MATRIX IR ID sales@zuum.life 1-888-861-7351 www.zuum.life ZM0915...

  • Page 7: Firmware Version

    Quick key 0 EDID (same as Matrix) Off (same as Matrix) Example: to connect output port 1 to input port 4, press the quick key 1 (OUTPUT 1) and then press the quick key 4 (INPUT 4). sales@zuum.life 1-888-861-7351 www.zuum.life ZM0915...

  • Page 8: Remote Control Function

    Set Matrix subnet mask GATEWAY△[x.x.x.x] Set Matrix gateway MEDIA_TYPE△[z] Network speed select MAC_FILTER△[y] Mac filter on/off STATUS Show connection status VERSION Show firmware version HELP Help [Symbol] [Parameter] 01~10, ff=ALL 00=off, 01~10=1~10 00-09=0~9 0~255 00=off, 01=on 00=auto, 01=10M, 02=200M sales@zuum.life 1-888-861-7351 www.zuum.life ZM0915...

  • Page 9: Command Example

    Command Example: > To route input 4 to output 1, send the following string: TX01△04Enter > To route input 2 to all output, send the following string: RX02△ffEnter > To route input 2 to output 1,2,4, send the following string: RX02△01,02,04Enter >...

  • Page 10: Auto Reset

    Terminal connection users display, the max. 4 users on line. MEMORY Click to enter memory setup page MAC FILTER Click to enter MAC Filter setup page ALIASES Click to enter Aliases setup page BACK Back to SWITCH SETTING page APPLY Click Apply after setting changes sales@zuum.life 1-888-861-7351 www.zuum.life ZM0915...

  • Page 11: Mac Filter

    MAC Filter can setup registered MAC Address to link MATRIX host Web UI up to 10 MAC groups. > After MAC Address entry, select Enable and click Apply to complete the setting. > Press Back to advanced page. sales@zuum.life 1-888-861-7351 www.zuum.life ZM0915...

  • Page 12: Specifications

    Weight grams 3900 Do you Need Technical Support? ZUUM is proud to offer free technical support to ensure your product is operating correctly. If you are experiencing difficulties setting up this product, please call us for assistance 1-888-861-7351 or visit www.zuum.life Here for You 24/7 sales@zuum.life...
