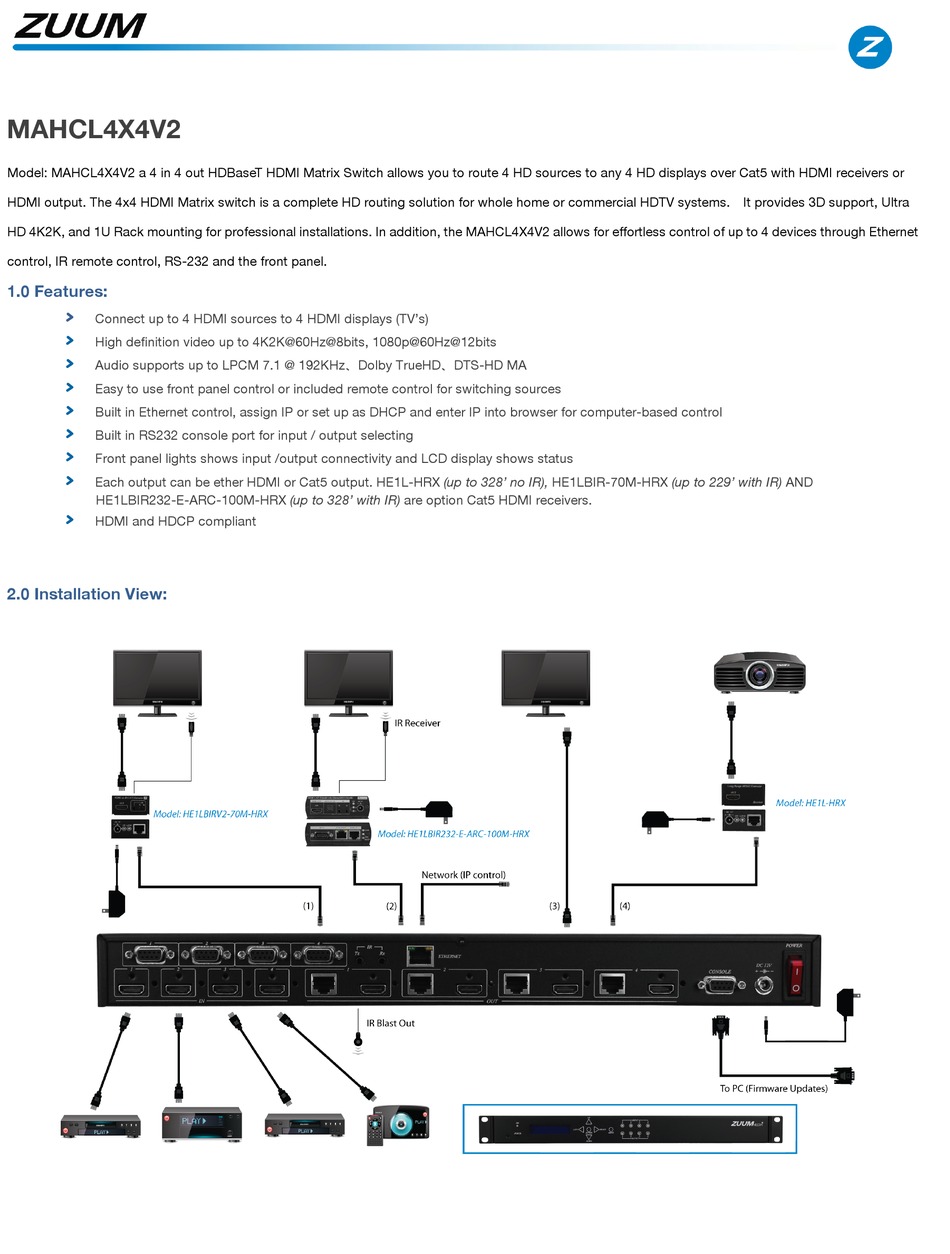

MAHCL4X4V2
Model: MAHCL4X4V2 a 4 in 4 out HDBaseT HDMI Matrix Switch allows you to route 4 HD sources to any 4 HD displays over Cat5 with HDMI receivers or
HDMI output. The 4x4 HDMI Matrix switch is a complete HD routing solution for whole home or commercial HDTV systems. It provides 3D support, Ultra
HD 4K2K, and 1U Rack mounting for professional installations. In addition, the MAHCL4X4V2 allows for effortless control of up to 4 devices through Ethernet
control, IR remote control, RS-232 and the front panel.
1.0 Features:
>
Connect up to 4 HDMI sources to 4 HDMI displays (TV's)
>
High definition video up to 4K2K@60Hz@8bits, 1080p@60Hz@12bits
>
Audio supports up to LPCM 7.1 @ 192KHz、Dolby TrueHD、DTS-HD MA
>
Easy to use front panel control or included remote control for switching sources
>
Built in Ethernet control, assign IP or set up as DHCP and enter IP into browser for computer-based control
>
Built in RS232 console port for input / output selecting
>
Front panel lights shows input /output connectivity and LCD display shows status
>
Each output can be ether HDMI or Cat5 output. HE1L-HRX (up to 328' no IR), HE1LBIR-70M-HRX (up to 229' with IR) AND
HE1LBIR232-E-ARC-100M-HRX (up to 328' with IR) are option Cat5 HDMI receivers.
>
HDMI and HDCP compliant
2.0 Installation View:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAHCL4X4V2 and is the answer not in the manual?

Questions and answers

Related Manuals for ZUUM MAHCL4X4V2

Summary of Contents for ZUUM MAHCL4X4V2

  • Page 1 MAHCL4X4V2 Model: MAHCL4X4V2 a 4 in 4 out HDBaseT HDMI Matrix Switch allows you to route 4 HD sources to any 4 HD displays over Cat5 with HDMI receivers or HDMI output. The 4x4 HDMI Matrix switch is a complete HD routing solution for whole home or commercial HDTV systems. It provides 3D support, Ultra HD 4K2K, and 1U Rack mounting for professional installations.
  • Page 2 3.0 Front Panel Indications: Front Power LED Indication Blue Power on Standby LED Off Power Off Front Input 1 ~ 4 LED Indications Blue Signal indication LED off No signal Front Output 1 ~ 4 LED Indications Blue HDMI output indications HDBaseT output indication LED off Output unlinked...
  • Page 3 FIX MODE is one to one transmission, RS-232 port 1 only works with HDBaseT port 1, RS-232 port 2 only works with HDBaseT port 2, and so on… MODE MATRIX MODE MAHCL4X4V2 RS232 Cable Projector HDMI RS232 RX RS232 - 1...
  • Page 4 MAHCL4X4V2 Projector RS232 Cable HDMI - 1 PC 1 HDMI RS232 RX HDBaseT - 1 Connect To PC 1 RS232 - 1 Projector HDMI - 2 RS232 Cable PC 2 HDBaseT - 2 HDMI RS232 RX Connect To PC 1...
  • Page 5 After entering IR RX SETTING menu, press ENTER. Then LCD second line of text will flash. Press RIGHT or LEFT button to select the IR RX input to be modified. Press UP or DOWN button to select O or X. Then press ENTER to confirm setting. HDBaseT IR RX O : on X : off MAHCL4X4V2 Player I R TX HDMI RX I R RX HDBaseT - 1...
  • Page 6 MAHCL4X4V2 ＋ ＋ HDBaseT - 1 HDBaseT - 2 ＋ HDBaseT - 3 ＋ HDBaseT - 4 4.6 Matrix IR ID: (Default IR ID: Matrix This function must be set to match the Matrix remote control IR1 with the matrix itself. A conflict with other remote controls is therefore avoided.
  • Page 7 MAHCL4X4V2 ＋ 4.7 Ethernet * IP Address Subnet Mask Gateway IP DHCP Client Media Type MAC Filter IP Address: (Default: 192.168.0.200) IP Address 192.168. 0.200 This function can setup MATRIX host intranet ”IP Address”, press ENTER, the left-most number of second row will flash, then press the UP or DOWN button to change the numbers, , press LEFT or RIGHT to move to another location, the move to a position number will flash, press ENTER to complete the setting.
  • Page 8 Address needs to go through “ ETHERNET” menu to set IP Address, Subnet Mask, Gateway, press ENTER, the second row will flash, then press the UP or DOWN to select DISABLE, ENABLE, then press ENTER to complete the setting. NOTE: If you set up as DHCP MAHCL4X4V2 Version up to (1.13 ) will note show the IP address.

  • Page 9: Firmware Version

    4.8.1 BUILD-IN MODE: This mode supports video resolution 480p, 720p, 1080i/p at 24/50/60Hz, support 1080P LPCM two-channel audio and 5.1 channel. After enter BUILD-IN MODE menu, press UP or DOWN key to select 1080P LPCM-2CH or 1080P LPCM-5.1CH, then press ENTER to confirm setting. 1080P LPCM-2CH 1080P LPCM-5.1CH 4.8.2 Copy Mode:...
  • Page 10 Example: to connect output port 1 to input port 4, press the quick key 1 (OUTPUT 1) and then press the quick key 4 (INPUT 4). 6.0 REMOTE PC Control Function: MAHCL4X4V2 supports RS232 and TCP/IP control by the same command as below: 6.1 For RS232 CONSOLE/IP: Connect the RS232 CONSOLE port to the COM port of the host by an F/M RS232 straight cable (pin 2 to pin 2;...
  • Page 11 For Ethernet TCP/IP(Winsock) Default IP address: 192.168.0.10, Port:47011 6.2 Operation Instruction format: Command + △(Space) + Parameter + Enter [COMMAND] [DESCRIPTION] POWER △ [y] Power on/off TX(n) △ [n] Set RXn to TXn RX(n) △[m,m,m,m…] Set RXn to multiple TXm,m,m,m… RS232 △...

  • Page 12: Command Example

    Command Example: > To route input 4 to output 1, send the following string: TX01△04Enter > To route input 2 to all output, send the following string: RX02△ffEnter > To route input 2 to output 1,2,4, send the following string: RX02△01,02,04Enter >...

  • Page 13: Web Control Function

    Setup MATRIX IP Address based on 4.7 ETHERNET section. NOTE: If you set up as DHCP MAHCL4X4V2 Version up to (1.13 ) will note show the IP address. You will need to go into your router to confirm exact IP address that was assigned or use our IP Finder.exe tool to know what IP was assigned by your router.
  • Page 14 OUTPUT Display output 1~4, you can change the display name by the Aliases page INPUT Display input 1~4, this field is a drop down menu, you can change the display name by the Aliases page. RELOAD Get MATRIX host message. ADVANCED Enter into the “Advanced”...

  • Page 15: Mac Filter

    Aliases: > Aliases page can change input/output names, enter Apply to finish the setting after changes. The new name will update and correspond to SWITCH SETTING page Output / Input. > Press Back jump back to advanced page. MAC Filter: >...

  • Page 16: Specifications

    Specifications: Model: MAHCL4X4V2 HDMI Resolution 4096x2160@24/25/30Hz 8 bit RGB444. 1080p@60Hz 12bit, 3D HDCP Video Input Interface HDMI Type A x 4 Video Output Interface HDMI Type A x 4 Audio Audio support up to LPCM 7.1 @ 192KHz、Dolby TrueHD, DTS-HD MA...
