GRAVOTECH MARKING SAS LS100 Alignment Procedure

Red pointer alignment procedure
Hide thumbs
1
2
3
4
5

Advertisement

Table of Contents

Red pointer alignment procedure .............................................................................................................. 2
I.
Autofocus .......................................................................................................................................... 3
Ii. Red Pointer Alignment .................................................................................................................... 4
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LS100 and is the answer not in the manual?

Questions and answers

Related Manuals for GRAVOTECH MARKING SAS LS100

Summary of Contents for GRAVOTECH MARKING SAS LS100

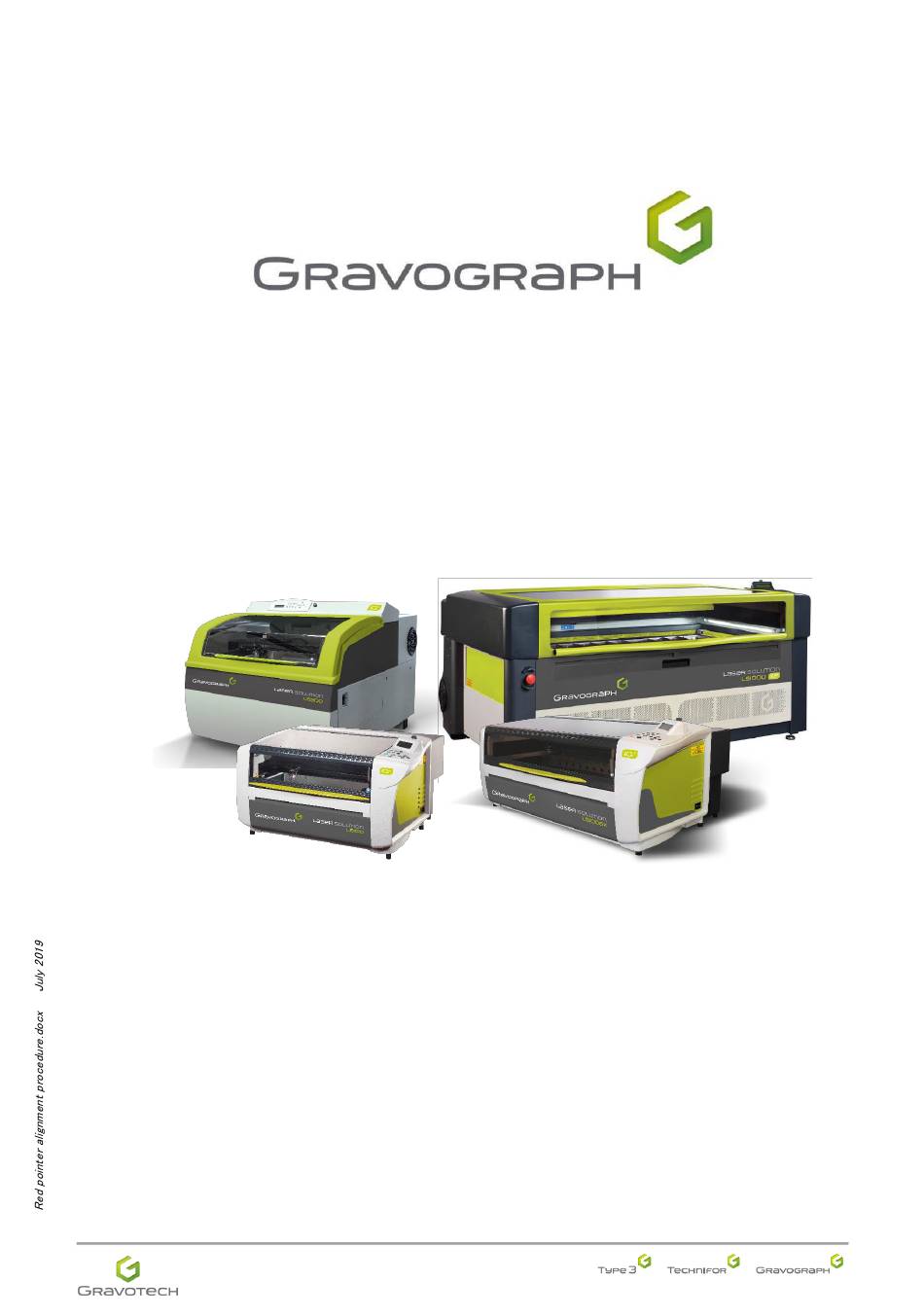

  • Page 1 Red pointer alignment procedure Red pointer alignment procedure ......................2 Autofocus ............................3 II. Red pointer alignment ........................4...
  • Page 2 ➢ Start the procedure with the machine powered down (OFF state). Procedure LCD SCREEN This is the laser machine keyboard layout and button legend: CANCEL RED POINTER AUTOFOCUS ARROWS START PAUSE VALIDATE NB: buttons and layout may vary slightly depending on the machine model. LS100 model shown.
  • Page 3 Red pointer alignment procedure Autofocus ①. Place the engraving medium in the centre of the machine’s engraving area. Close the lid. ②. Switch the machine ON. Wait ③. Wait for complete start-up. Once started and ready to operate, the machine’s LCD screen should display “Ready to receive”.
  • Page 4 Red pointer alignment procedure Red pointer alignment ⑦. Lid closed, switch ON the laser machine and watch carefully the LCD screen of the machine. (power ON) ⑧. When the “Gravograph” screen displays, press the CANCEL key << - GRAVOGRAPH - >> PROG X.XX LCD SOFT...
  • Page 5 Red pointer alignment procedure ⑫. Take a look at the laser head’s location and verify that the red pointer is ON and hitting the engraving material placed there. ⑬. Making sure the laser machine’s cover is closed, push the red pointer button for a while. The red pointer should disappear and the laser beam should fire as long as the button is pushed.
