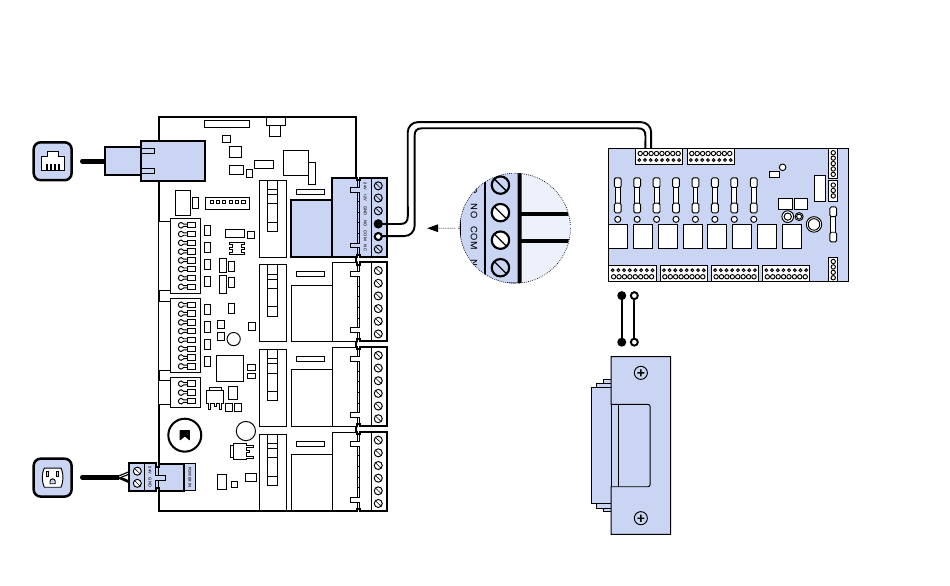

External Power Supply & Fail Secure Electric Lock

Dry Contact

Ethernet

Power

White to 24V

Black to GND

NO to IN1

COM to GND1

NO to (+)

COM to (-)

Note: Wiring is an example – please

consult a professional before wiring.

13
