Summary of Contents for Kisi Controller Pro 1.1

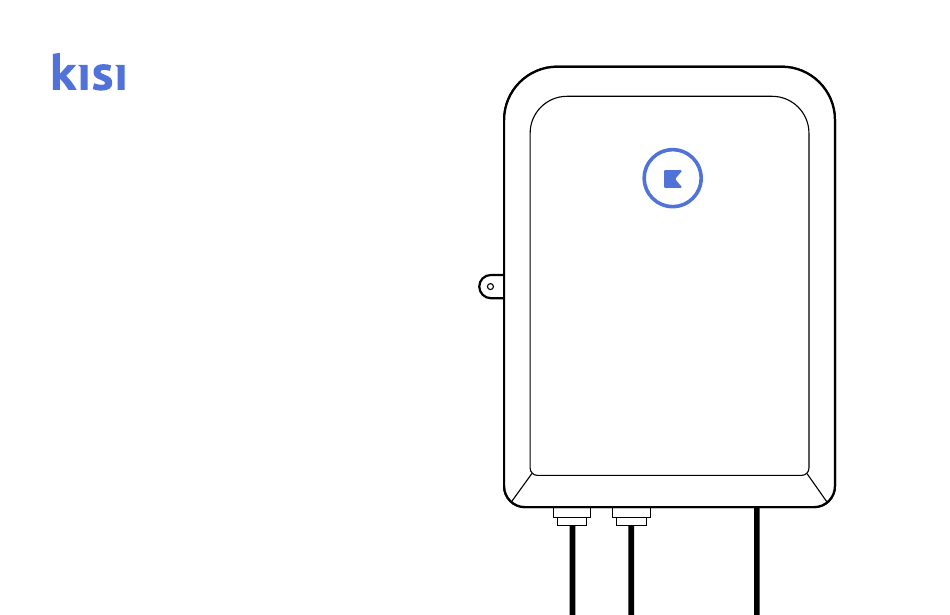

Page 1 Wiring Handbook for Controller Controller Pro 1.1...
Page 2: Table Of Contents
Contents – Introduction – What You’ll Need – What’s in the Box – Mounting the Controller – Controller Components – Activating the Controller – Wiring the System - Overview (10) – How to Wire Your Doors (11–14) – Support (15)
Page 3: Introduction
Introduction Hi there! We’re happy to hear that your Kisi system is ready Get Started With Your Installation—this will walk you through the requirements to set up your Kisi to be installed! The first thing you should do is create system.
Page 4: What You'll Need
What You’ll Need 1. Phillips and Small Flathead Screwdrivers 2. Wire Cutters 3. Low Voltage Cables (e.g. 18 Gauge) 4. Ethernet Cables (CAT6) 5. Wire Connectors 6. 3/16-inch (5mm) Drill Bit for Wall Anchors 7. Working Internet Connection (Ethernet or WiFi)
Page 5: What's In The Box
What’s in the Box Controller Pro 1.1 100 - 240V Universal Power Adapter Power Cable Wiring Brackets Wiring 2 Srews (B) for Mounting Mounting Plate 5 Zip Ties Wingnut Key + 4 Screws (A) Caps + 2 Wall Anchors...
Page 6: Mounting The Controller
Next, screw the mounting screws into the wall anchors and then hang the Controller Pro 1.1 on the screws, using the holes in the back of the Controller Pro 1.1 case. Mounting Action...
Page 7: Controller Components
Controller Components Reader is wired to Internet switch (not to controller) Ethernet Exit Ethernet Request to Exit Wet/Dry Contacts Request to Exit Power Door Relays...
Page 8: Activating The Controller
Activating the Controller Power Up Connect to Internet * Call +1 (646) 663 4800 * If you are connecting via WiFi, instead of Ethernet, go to help.kisi.io for further instructions. Ethernet Power...
Page 9 Wiring the System...
Page 10: Wiring The System - Overview
Wiring the System Overview With External Power Supply Lock Low Voltage Cable, e.g. 18/2 Gauge Wire Reader Controller Pro Internet Switch 100 - 240V Universal Lock Power Supply Power Adapter...
Page 11 Standalone Fail Secure Electric Strike Note: Wiring is an example – please consult a professional before wiring. Wet Contact Ethernet 12V or 24V to (+) Jumper Wire from GND to COM NO to (-) Power White to 24V Black to GND...
Page 12 Standalone Fail Safe Magnetic Lock Note: Wiring is an example – please consult a professional before wiring. Wet Contact Ethernet 12V or 24V to (+) Jumper Wire from GND to COM NC to (-) Power White to 24V Black to GND...
Page 13 External Power Supply & Fail Secure Electric Lock Note: Wiring is an example – please consult a professional before wiring. Dry Contact NO to IN1 Ethernet COM to GND1 NO to (+) COM to (-) Power White to 24V Black to GND...
Page 14 External Power Supply & Fail Safe Electric Lock Note: Wiring is an example – please consult a professional before wiring. with REX & Motion Sensor Dry Contact NO to IN1 Ethernet COM to GND1 NC [Power] to COM [Power] to NC [Motion] (+) [Mag] External Power...
Page 15 +1 (646) 663 4880...
Page 16: Support
Support Thanks for purchasing the Kisi Controller Pro 1.1. If things aren’t working correctly or you need assistance, please contact us immediately. Sincerely, The Kisi Krew support@getkisi.com https://help.kisi.io +1 (646) 663 4880...
