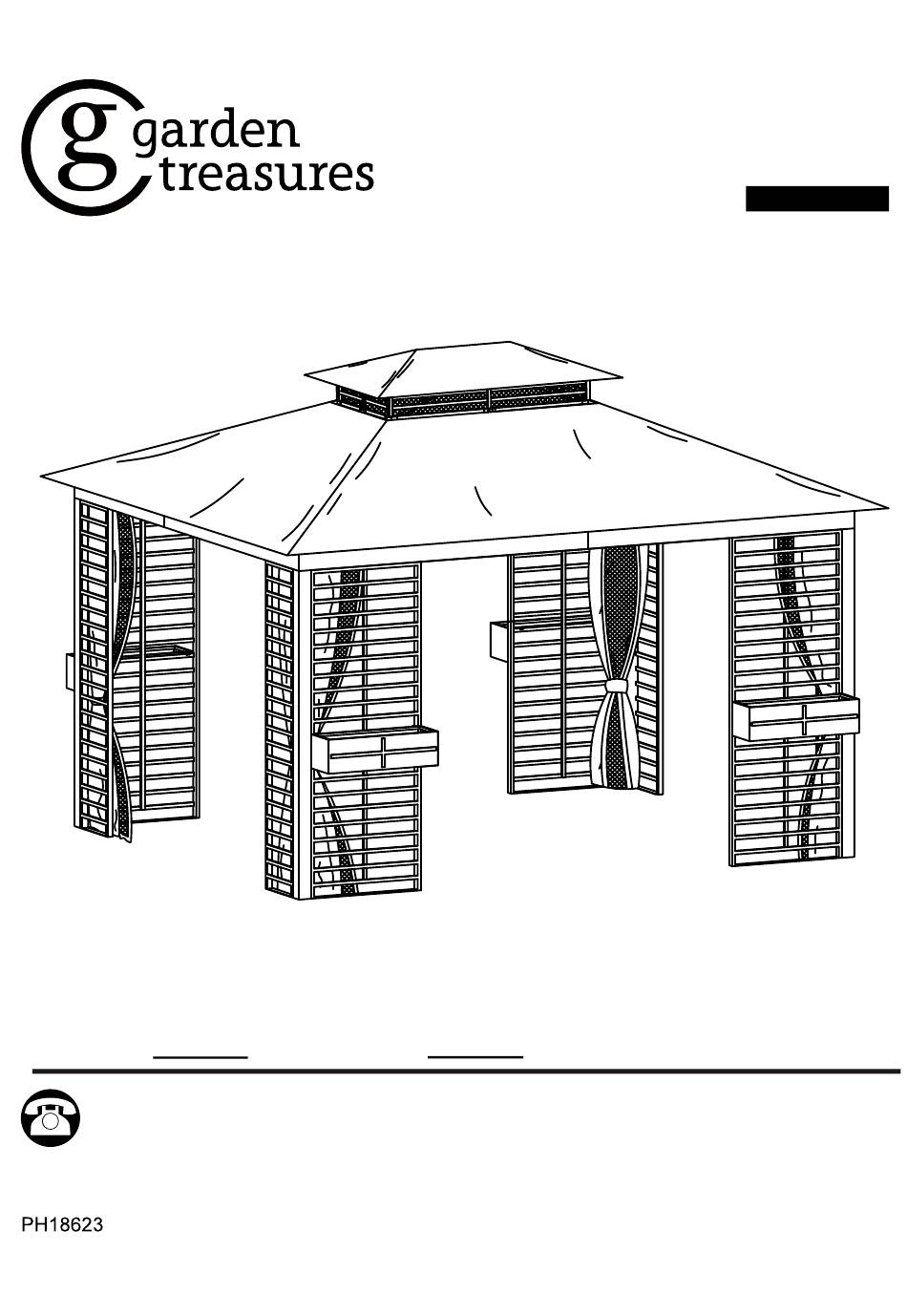

Garden Treasures® is a registered trademark of LF,
LLC. All rights reserved.
ATTACH YOUR RECEIPT HERE
Serial Number
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 8 p.m., EST, Monday - Friday.
®
Purchase Date
1
ITEM #1126645
GAZEBO
MODEL #L-GZ882PST-D
Español p. 19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L-GZ882PST-D and is the answer not in the manual?

Questions and answers

Related Manuals for Garden Treasures L-GZ882PST-D

Summary of Contents for Garden Treasures L-GZ882PST-D

  • Page 1 ITEM #1126645 GAZEBO MODEL #L-GZ882PST-D ® Español p. 19 Garden Treasures® is a registered trademark of LF, LLC. All rights reserved. ATTACH YOUR RECEIPT HERE Purchase Date Serial Number Questions, problems, missing parts? Before returning to your retailer, call our customer...
  • Page 2 PACKAGE CONTENTS...
  • Page 3 PACKAGE CONTENTS PART DESCRIPTION QUANTITY PART DESCRIPTION QUANTITY Post Big Vertical Screen 2 Small Top Connector Small Vertical Screen 1 Top Frame Short Panel Small Vertical Screen 2 Top Frame Long Panel Flower Basket Panel Hook Flower Basket Rear Panel Small Roof Beam Flower Basket Side Panel Flower Basket Inner Panel...
  • Page 4 HARDWARE CONTENTS M6 x 15 Bolt Flat Washer M6 Spring Washer M6 x 25 Bolt QTY: 40 + 2 spare QTY: 1 spare QTY: 60 + 3 spare QTY: spare M6 x 30 Bolt Ring M6 x 35 Bolt M6 Nut QTY: 8 + 1 spare QTY: 104 + 6 spare QTY: 44 + 3 spare...
  • Page 5 SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble or install the product. WARNING • Keep all children and pets away from assembly area. Children and pets should be supervised while gazebo is being assembled. • The assembled gazebo should be located at least 6 feet from any obstruction such as fence, garage, house, overhanging branches, laundry lines or electrical wires.
  • Page 6 CAUTION • If the gazebo will not be used for a long period of time (e.g. during winter time), disassemble and store it in a clean, dry environment. • This product is for domestic, outdoor use (i.e. decorative and sunshade purposes only).
  • Page 7 ASSEMBLY INSTRUCTIONS 1. Insert the long-side long screen (H1) into the long-side short screen (H2). Repeat this step for short-side screens (I1/I2). H2 I2...
  • Page 8 ASSEMBLY INSTRUCTIONS H2 I2 Hardware Used M6 x 15 Bolt M6 x 30 Bolt M6 Flat Washer x 24 M6 Spring Washer M6 Nut Wrench 3. Attach the long-side short screens (H2) and the short-side long screens (I1) to the H2 H1 I1 I2 posts (A) with bolts (DD), spring washers...
  • Page 9 ASSEMBLY INSTRUCTIONS 4. Attach the big vertical screens (J1/J2) to the long-side screens (H2/H1) with bolts H1 H2 (EE), spring washers (CC) and flat washers I1 I2 (BB), tighten with wrench (Z). Repeat this step for attaching the small vertical screens (J3/J4) to the short-side screens (I2/I1).
  • Page 10 ASSEMBLY INSTRUCTIONS 6-2. Attach another flower basket side panel (K3) to the flower basket panel (K1) and flower basket rear panel (K2) with bolts (DD) and flat washers ( ), tighten with wrench (Z). Hardware Used M6 Flat Washer Wrench 6-3.
  • Page 11 ASSEMBLY INSTRUCTIONS 7-2. Connect the top frame short panels (C1) and top frame long panels (C2) using bolts (DD) and flat washers (BB), tighten with wrench (Z). Hardware Used M6 x 25 Bolt M6 Flat Washer Wrench 8. Attach the big roof sloped beams (F) to 11 8 posts (A) using bolts (EE), nuts (FF) and flat washers (BB), tighten with wrench (Z).
  • Page 12 ASSEMBLY INSTRUCTIONS 9. Attach the other end of the big roof sloped beams (F) to the big top frame using bolts 12-1 (AA) and washers (BB), tighten with wrench (Z). Hardware Used M6 x 15 Bolt AA BB M6 Flat Washer Wrench 10.
  • Page 13 ASSEMBLY INSTRUCTIONS 11-1. Attach the other end of middle beams 11-1 11-1 Hardware Used M6 x 15 Bolt M6 Flat Washer Wrench 11-2. Place large canopy (N) onto the big 11-2 top assembly, but do not attach it yet. 12-1. Insert the small roof beams (E) into the 12-1 small top connector (B) and attach the hook (D).
  • Page 14 ASSEMBLY INSTRUCTIONS 12-2. Place small canopy (M) on small top, 12-2 then attach four corners of small canopy to small roof beams (E). 12-3. Attach small top assembly by inserting 12-3 the tubes of small roof beams ( ) into the big top frame.
  • Page 15 ASSEMBLY INSTRUCTIONS Fig.14 Fig.13 Fig.15 13. Spread the large canopy (N) and attach corners onto the end of big roof sloped beams (F). 14. Hang the mosquito net (O) and curtain (P) onto the netting tubes with rings (GG). Hardware Used x 104 Ring...
  • Page 16 ASSEMBLY INSTRUCTIONS 15. Secure the gazebo to ground using stakes ( ). J1 J2 J3 J4 Hardware Used x 12 Ø6 x Stake CARE AND MAINTENANCE withstand inclement weather, including high winds, rain, and snow. In order to avoid damage in such instances, remove any accumulated water and the roof immediately.
  • Page 17 REPLACEMENT PARTS LIST For replacement parts, call our customer service department at 1-800-643-0067 from 8 am to 8 pm, EST, Monday - Friday.
  • Page 18 REPLACEMENT PARTS LIST For replacement parts, call our customer service department at 1-800-643-0067 from 8 am to 8 pm, EST, Monday - Friday. PART DESCRIPTION PART # PART DESCRIPTION PART # Post P11190A01115 Flower Basket Side Panel P15003A01184 P15004A01184 P10101C01184 Small Top Connector Flower Basket Inner Panel P10102C01184...
  • Page 19 #1126645 GAZEBO #L-GZ882PST- ®...
  • Page 22 : 40 + 2 : 60 + 3 : 8 + 1 : 104 + 6 : 44 + 3 : 16 + 1 : 12...
  • Page 23 • • • • • • • • • • • •...
  • Page 24 • • • • • • • • • •...
  • Page 25 H2 I2...
  • Page 26 H2 I2 x 24 H2 H1 I1 I2 x 16 x 16 x 16...
  • Page 27 H1 H2 I1 I2 x 12 J1 J2 J3 J4 x 12 x 12 J1 J2 x 24 x 24 J3 J4 x 24 6-1. x 16 x 16...
  • Page 28 6-2. 6-3. 11 6-3 J1 J2 7-1. 11 7-1 L1 L2 H1 H2 I1 I2...
  • Page 29 7-2. 11 8...
  • Page 30 12-1 AA BB 12-1 BB EE...
  • Page 31 11-1. 11-1 11-1 11-2. 11-2 12-1. 12-1...
  • Page 32 12-2. 12-2 12-3. 12-3 12-4. 12-4 12-4...
  • Page 33 Fig.14 Fig.13 Fig.15 x 104...
  • Page 34 J1 J2 J3 J4 x 12 • • • • • • •...
  • Page 36 P11190A01115 P15003A01184 P15004A01184 P10101C01184 P10102C01184 P12116B01184 P10103C01184 P12117B01184 P12601A01184 P00175B08003 P00176B08003 P10289A01184 P10384B01184 P00343B02902 P10450B01184 P00229B06003 H02015C11 P10852A01184 P11023E01184 H19001C11 P11024E01184 H13001C11 P11025E01184 H02025C11 P11026E01184 H02035C11 P11191A01184 H14001C11 P11192A01184 H02030C11 P11193A01184 P90701A0700 P11194A01184 P12406C0100 P15001A01184 H0001C12 P15002A01184 H1 001C11 China 20194434...
