Removal and Replacement of a
ProStock Carousel Drawer with a
Carousel or Locker Drawer
Revision 1, March 7, 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProStock and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CribMaster ProStock

Summary of Contents for CribMaster ProStock

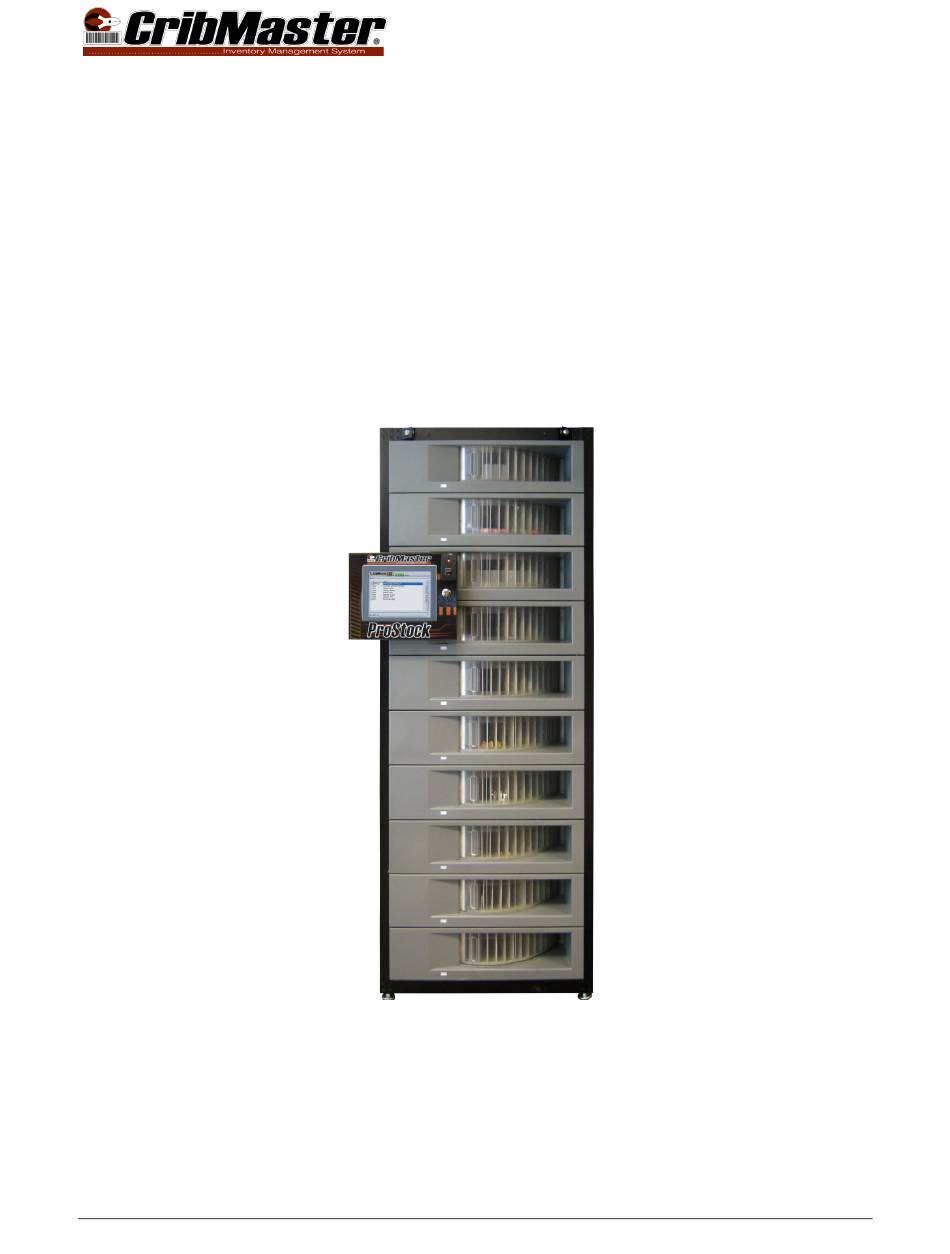

  • Page 1 Removal and Replacement of a ProStock Carousel Drawer with a Carousel or Locker Drawer Revision 1, March 7, 2014...
  • Page 2 Removal and Replacement of ProStock Drawers Removal and Replacement of a ProStock Carousel Drawer with a Carousel or Locker Drawer Revision 1 Copyright Cribmaster®, 2014 CribMaster® 1955 West Oak Circle Marietta, Georgia 30062 770-419-1399 888-419-1399 Technical Support Line: 1-855-274-2267 (1-855-CRIBCMS) www.cribmaster.com...
  • Page 3 Removal and Replacement of ProStock Drawers Table of Revisions Date Revisions Revision Number March 13, 2014 Initial Release of Document 3 of 13...

  • Page 4: Table Of Contents

    Figure 7, Drawer Attaching Screws, Carousel and Locker ................. 11 Figure 8, Locker Drawer Installation ......................11 Figure 9, Location of Screws, ProStock Left Side Panel ................12 Figure 10, Diodes, ProStock Wiring Harness ..................... 12 Figure 11, Connectors Showing One (1) Diode Removed ................. 13 Figure 12, Connectors Connected without Diodes ..................

  • Page 5: Introduction

    Introduction Purpose The purpose of the following document will outline the steps to remove a Carousel Drawer from a ProStock Machine and install a replacement Carousel Drawer or a Locker Drawer in its place. Related Documents • Calibrating a Carousel in a ProStock •...

  • Page 6: Removal Of Carousel Drawer

    ProStock machine. 1. Turn off and disconnect power to the ProStock machine. 2. Unlock the drawers by unlocking the two barrel locks located at the top of the ProStock machine. 3. Slide out the drawer to be removed.

  • Page 7: Figure 2, Carousel Removal From Drawer

    Removal and Replacement of ProStock Drawers Removal of Carousel Drawer Locking Hub Nut Locking Hub Nut – Removed Drawer Without Carousel Figure 2, Carousel Removal from Drawer 6. Using a Philips head screwdriver, remove the four screws (two on the left side and two on the right side) attaching the drawer to the drawer guides (see Figure 3).

  • Page 8: Figure 3, Screw Locations On Drawer Guides

    Removal of Carousel Drawer Removal and Replacement of ProStock Drawers Drawer Attachment Screw Locations (Both Carousel and Locker; (4 PL); 2 Left Side (Shown); 2 Right Side (Not Shown) Figure 3, Screw Locations on Drawer Guides 7. With one person on each side, carefully lift the front part of the drawer up at an angle removing tabs on the sides of the drawer from the slots on the drawer guides (see Figure 4).

  • Page 9: Installation Of Carousel Drawer

    1. Ensure that power is off and disconnected from ProStock machine. 2. Extend the drawer guide rails out fully from the ProStock machine (see Figure 5). 3. With one person on each side of the drawer, line up the rear tabs on the drawer with the rear slots on the drawer guides.

  • Page 10: Figure 6, Carousel Spindle Guide

    Note: Do not over tighten locking hub nut. Hand tighten only. 7. Plug in the drawer’s power/data cable to the appropriate plug located inside the cabinet of the ProStock machine on the left side (see Figure 1). 8. Slide drawer back into ProStock machine and reconnect power. 10 of 13...

  • Page 11: Installation Of Locker Drawer

    Figure 7, Drawer Attaching Screws, Carousel and Locker 1. Turn off and disconnect power to the ProStock Machine. 2. Remove Carousel Drawer (or Locker Drawer) from the ProStock machine following the steps in Section 2 Removal of Carousel Drawer on page 6.

  • Page 12: Figure 9, Location Of Screws, Prostock Left Side Panel

    5. Plug in the drawer’s power/data cable to the appropriate plug located inside the cabinet of the ProStock machine on the left side (see Figure 1). 6. Using a Philips head screwdriver, remove the six (6) screws holding the left side panel of the ProStock Machine and remove the panel (see Figure 9).

  • Page 13: Figure 11, Connectors Showing One (1) Diode Removed

    Removal and Replacement of ProStock Drawers Installation of Locker Drawer 8. Unplug diodes from wiring harness and then plug the connectors that were previously connected to the each end of the diodes together (see Figures 11 and 12). Diode Connectors with...
