Haier QPCA09 Owner's Manual And Installation Instructions

Hide thumbs

Advertisement

Quick Links

Portable Air Conditioner
Accondicionadores De Aire Para Sala
Design may vary by model number.
Installation Instruction
Manual del propietario y
instrucciones de instalación
El diseño puede variar según
el número de modelo
Owner's Manual and
QPCA09
QPCA10
QPCA12
49-5000468 Rev. 0 12-19 GEA

Advertisement

loading

  Summary of Contents for Haier QPCA09

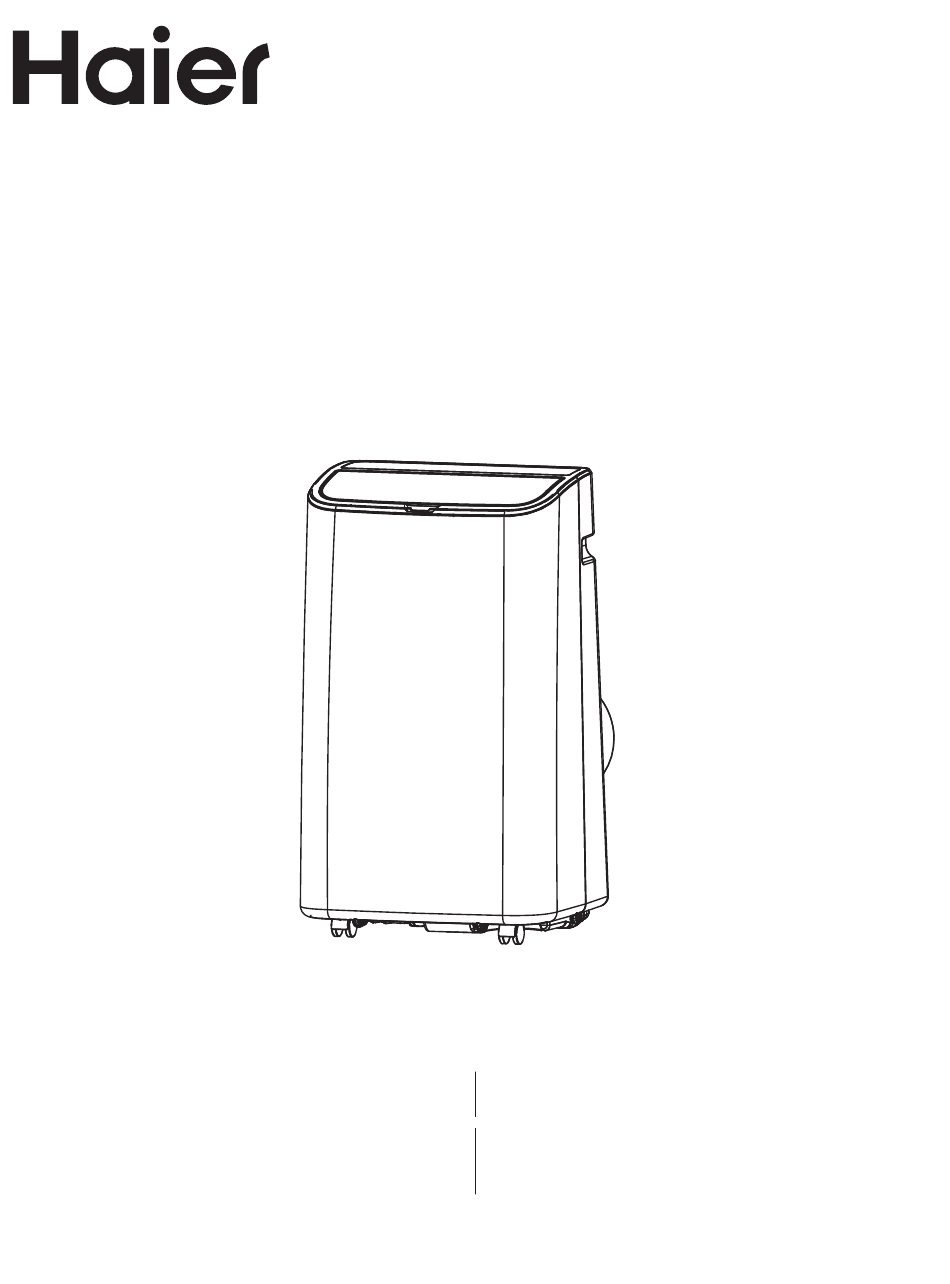

  • Page 1 Owner’s Manual and Installation Instruction Manual del propietario y instrucciones de instalación QPCA09 QPCA10 Portable Air Conditioner QPCA12 Accondicionadores De Aire Para Sala Design may vary by model number. El diseño puede variar según el número de modelo 49-5000468 Rev. 0 12-19 GEA...
  • Page 2 49-5000468 Rev. 0...
  • Page 3: Table Of Contents

    HAIER WEBSITE Have a question or need assistance with your appliance? Try the Haier Website 24 hours a day, any day of the year! You can also shop for more great Haier products and take advantage of all our on-line support services designed for your convenience.
  • Page 4: Important Safety Information

    SAFETY INFORMATION IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE IMPORTANT SAFETY INSTRUCTIONS • Disconnect power before cleaning. WARNING To reduce the risk of fire, electrical NOTE: Turning off power by pressing the Power button shock, injury to persons, or damage when using the air does NOT disconnect the appliance from the power conditioner, follow basic precautions, including the supply.
  • Page 5: Controls

    CONTROLS Features and appearance will vary. Lights next to the touch pads on the air conditioner control panel indicate the selected settings. Cool High Temp / Time (on some models) Controls A. CONTROL PANEL DISPLAY F. Fan Speed Button Displays the Set Temperature in degrees Fahrenheit or The fan speed can be adjusted from Low speed, Medium speed, to degrees Celsius, or the hours remaining in a Time Delay.
  • Page 6 CONTROLS The display will always default to show the room temperature. When the air conditioner is turned on, it will automatically start in the last mode and fan settings selected. Cool Mode Use the COOL mode for cooling. and the indoor air will become warmer. NOTE: If the air conditioner is off and is then turned on while set to COOL, To set the COOL mode: it will take approximately 3 minutes for the compressor to...
  • Page 7 CONTROLS Features and appearance may vary. Icons on the remote control indicate the selected settings WiFi Swing Fan Speed Cool Heat REMOTE CONTROL NOTE: The temperature cannot be set when the air 1. Insert the two batteries (provided). conditioner is in either Fan or DRY mode. 2.
  • Page 8: Care And Cleaning

    CARE AND CLEANING CLEANING 1. Unplug or disconnect power. WARNING 2. Use only a soft cloth dampened with water to clean the cabinet. NOTE: • Do not use a liquid or spray cleaner to clean the air conditioner. • DO NOT use chemicals, abrasives, ammonia, chlorine bleach, concentrated detergents, solvents or scouring Electrical Shock Hazard pads.
  • Page 9 CARE AND CLEANING Internal Water Tank The Water Full indicator (“FL” on the control panel display) illuminates when the internal water tank has filled with condensed water. To Empty the Internal Water Tank: 1. Unplug or disconnect power. 2. Place a shallow 1 quart or larger pan (not included) below the lower drain located on the back (near the bottom) of the air conditioner.
  • Page 10: Installation Instructions

    INSTALLATION INSTRUCTIONS Questions? visit our Website at: haierappliances.com. BEFORE YOU BEGIN Power cord includes a current interrupter device. A test and reset Read these instructions completely and carefully. button is provided on the plug case. IMPORTANT • — Save these instructions for local The device should be tested on inspector’s use.
  • Page 11 INSTALLATION INSTRUCTIONS PARTS INCLUDED (Appearance may vary) 1. Control Panel 6. Remote Control 2. Swing Air Louvers 7. Filter Panel 3. Casters 8. Power Cord Hook (2) 4. Exhaust hose assembly 9. Handle (2) 10. Air Vent - exhaust 11. Continuous Drainage hole 12.
  • Page 12 INSTALLATION INSTRUCTIONS UNPACK AIR CONDITIONER INSTALL WINDOW PANELS A. Measure the window opening. For a 20” WARNING opening, use just the middle panel of the Window Kit with the opening for the Exhaust Excessive Weight Hazard Hose Adapter. For openings from 20” to 33”, insert one side panel to the middle panel, for Use two or more people to move and install air openings from 33”...
  • Page 13 INSTALLATION INSTRUCTIONS CONNECT EXHAUST HOSE TO THE COMPLETE INSTALLATION WINDOW PANEL WARNING Place the Air Conditioner close to the window ensuring there is at least 20” of clearance from the wall and any other obstructions. Extend the hose so that it reaches the Window Kit.
  • Page 14: Troubleshooting

    TROUBLESHOOTING TIPS Problem Possible Causes Solution Unit does not start or Power supply cord is not plugged into an Plug the power cord into a grounded 3 prong operate outlet. outlet. Power supply cord has tripped. Press and release the RESET button on the power supply cord.
  • Page 15: Wifi Setup

    If your Air Conditioner (AC) has a Connected Appliance Information label located on the outside as shown below, your AC is Haier Appliances WiFi Connect Enabled. A WiFi communication card is built into the product allowing it to communicate with your smart phone for remote monitoring, control and notifications. Please visit haierappliances.com/connect to learn more about connected appliance features, and to learn what connected appliance apps...
  • Page 16: Limited Warranty

    For US Customers: This limited warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a Haier Appliances Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized Haier Appliances Service location for service.
