Simply Elegant TM Patio Lockset Series Instructions

Advertisement

INSTRUCTIONS

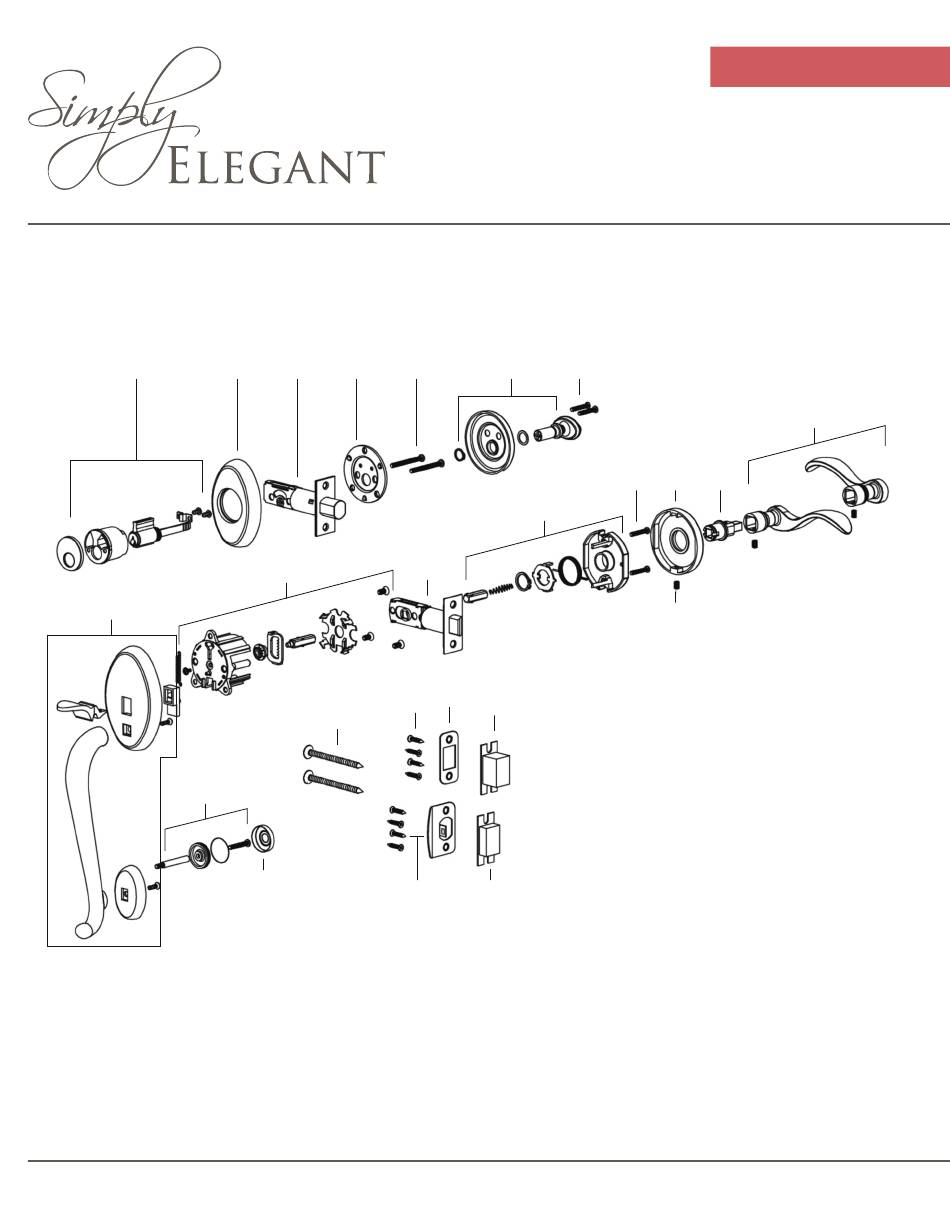

TM PATIO LOCKSET INSTALLATION INSTRUCTIONS

1
8
17
1
Outside Key Cylinder Assembly & Screws
2
Key Cylinder Cover Plate (Escutcheon)
3
Adjustable Deadbolt
4
Thumb Turn Mounting Plate
5
2" Pan Head Screws(Two)
6
Thumb Turn & Cover Plate
7
1/2" Oval Head Screws(Two)
www.simplyelegantproducts.com
(Page 1 of 4)
2
3
4
5
9
19
18
24
22
6
7
11
10
8
9
20
21
10
11
12
13
14
15
16
23
17
18
19
20
21
22
23
24
TM Patio Lockset
12 13
15
14
Outside Handle Assembly & Screws
Outside Handle Mounting Plate,
Assembly & Screws
Adjustable Spring Latch ( 2 3/8" to 2 3/4")
Inside Handle Mounting Plate & Assembly
1-1/2" Flat Head Screws (Two)
Inside Handle Cover Plate
Set Screw
Handle Spindle
Inside Lever Handle Assembly (Left or
Right) & Screws
Inside Lower Mounting Assembly for
Outside Handle
2-1/2" Wood Screws(Two)
1/2" Deadbolt Wood Screws
Deadbolt Strike Plate
Deadbolt Strike Bolt Receptacle
Latch Plate & Screws
Latch Receptacle
Screw Cover
070-117
070-118
070-119
070-120
16
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TM Patio Lockset Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Simply Elegant TM Patio Lockset Series

  • Page 1 TM Patio Lockset 070-117 070-118 070-119 070-120 INSTRUCTIONS (Page 1 of 4) TM PATIO LOCKSET INSTALLATION INSTRUCTIONS 12 13 Outside Handle Assembly & Screws Outside Handle Mounting Plate, Assembly & Screws Adjustable Spring Latch ( 2 3/8" to 2 3/4") Inside Handle Mounting Plate &...
  • Page 2 TM Patio Lockset 070-117 070-118 070-119 070-120 INSTRUCTIONS (Page 2 of 4) • The deadbolt is adjustable. It is set for 2-3/8” set back, DEADBOLT INSTALLATION but can be adjusted to 2-3/4”. (See the instruction sheet, “Adjustable Deadbolt & Latch.”) •...
  • Page 3 TM Patio Lockset 070-117 070-118 070-119 070-120 INSTRUCTIONS (Page 3 of 4) HANDLE INSTALLATION • Locate the tread hole for the bottom of #8 OUTSIDE HANDLE ASSEMBLY & SCREWS by measuring from the center of the bottom hole 7-1/2”. Then drill a 5/16”...
  • Page 4 TM Patio Lockset 070-117 070-118 070-119 070-120 INSTRUCTIONS (Page 4 of 4) HANDLE INSTALLATION 12 13 • Slide #11 INSIDE HANDLE MOUNTING PLATE & ASSEMBLY into the #16 INSIDE LEVER HANDLE ASSEMBLY (LEFT OR RIGHT) & SCREWS. The collar should be put on from the long end moving the collar toward the short end.
