Ultimate Support Nucleus-Z Explorer Instructions For Assembling

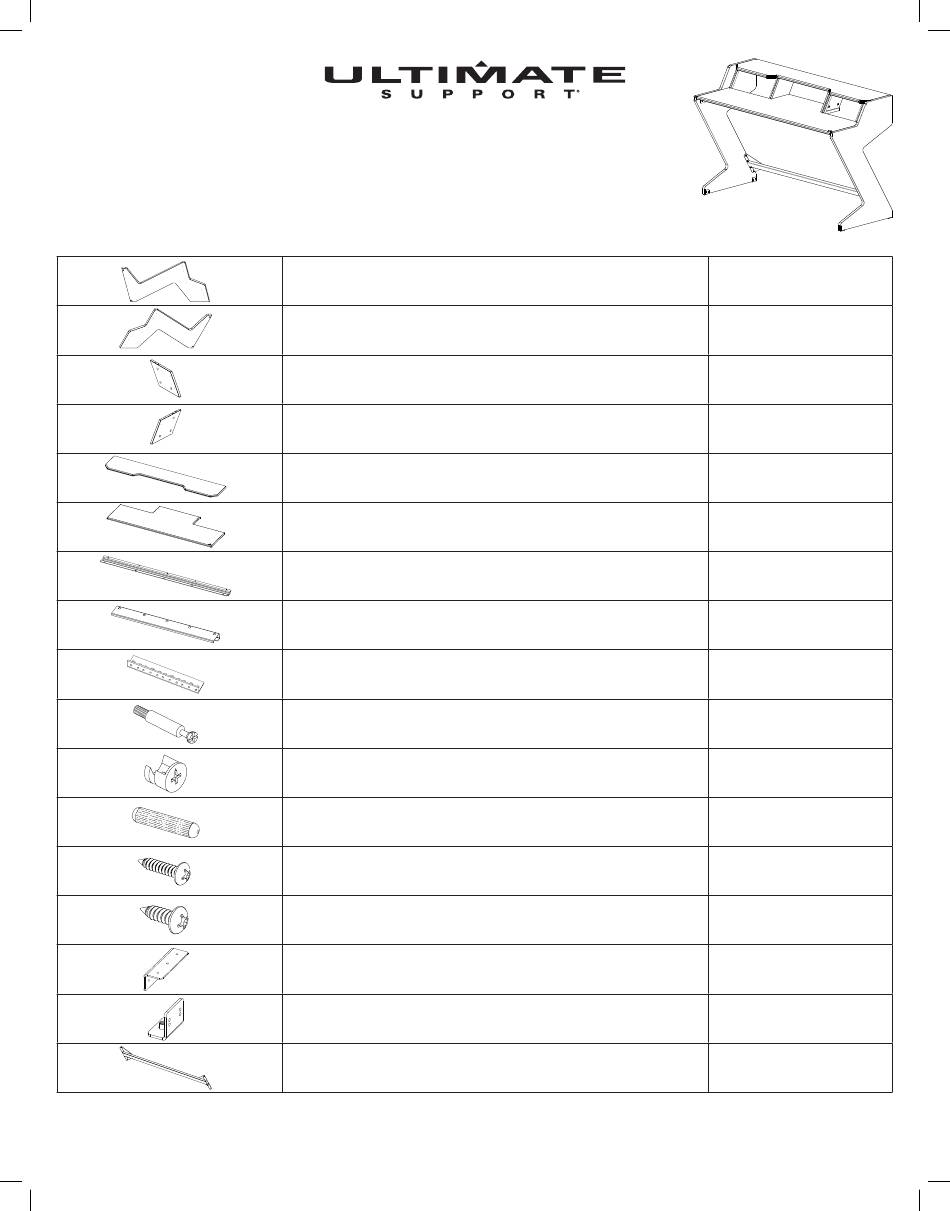

Nucleus-Z Explorer Parts - BOX 1 & 2

Please check to see you have all parts before starting.

Once all parts are confirmed begin assembly.

Instructions for

Assembling Nucleus-Z Explorer

Desk Z-Leg - Left

Desk Z-Leg - Right

Desk Secondary Support - Left

Desk Secondary Support - Right

Desk Secondary Surface

Desk Main Surface

Main Surface Stiffener

4 space rack rail

Pan Head Wood Screw - #8 X .75"

Pan Head Wood Screw - #8 X 5/8"

Leg Leveler

Desk Spreader Bar

Cable Tray

Cam Pin

Cam Lock

Dowel Rod

Bracket

x67

970.776.1920 . www.ultimatesupport.com

Table of Contents

Need help?

Do you have a question about the Nucleus-Z Explorer and is the answer not in the manual?

Page 1 Instructions for Assembling Nucleus-Z Explorer Nucleus-Z Explorer Parts - BOX 1 & 2 Desk Z-Leg - Left Desk Z-Leg - Right Desk Secondary Support - Left Desk Secondary Support - Right Desk Secondary Surface Desk Main Surface Main Surface Stiffener...
Page 2 Lay main desk work surface down Pan Head Wood with groove and holes facing up. In Screw (#8 X .75") Main Surface Stiffener groove place main surface stiffener, the u-shape Stiffener will fit inside the desk groove. Use ten pan head wood screws (#8 X .75") to attach.
Page 3 Pan Head Wood While the desk is still laying down, Screws (#8 x .75") attach desk spreader bar to both z-legs. Line up spreader bar with Desk Spreader Bar z-leg holes. Use 4 pan head wood screws (#8 X .75") on each side. Main Desk Surface with Z-Legs Main Desk Surface...
Page 4 Lay the desk secondary surface on Dowel Rods it’s back. Groove and holes should Cam Pin be facing up. Find the small holes and screw in cam pins. In the larger holes push in dowel rods. Desk Secondary Surface Turn over desk secondary surface and slide it onto desk secondary supports.
