Overview; Configuration Chart; Installation Instructions; Hardware - Altronix TROVE T2MK7F4D Installation Manual

Altronix T2MK7F4D Trove Mercury kit is pre-assembled and consists of Trove2M2 enclosure with factory installed Altronix power
supply/charger and sub-assemblies. T2MK7F4D kit also accommodates various combinations of Mercury boards for up to four (4) doors
in a single enclosure.
120VAC
60Hz
Altronix Input
Model Number Current (A)
T2MK7F4D 4.5
Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes and authorities having
jurisdiction. Product is intended for indoor use only.
1. Remove backplane from enclosure. Do not discard hardware.
2. Mark and predrill holes in the wall to line up with the top two/three keyholes in the enclosure. Install two/three upper fasteners and
screws in the wall with the screw heads protruding. Place the enclosure's upper keyholes over the two/three upper screws;
level and secure. Mark the position of the lower three holes. Remove the enclosure. Drill the lower holes and install the three
fasteners. Place the enclosure's upper keyholes over the two/three upper screws. Install the three lower screws and make sure to
tighten all screws.

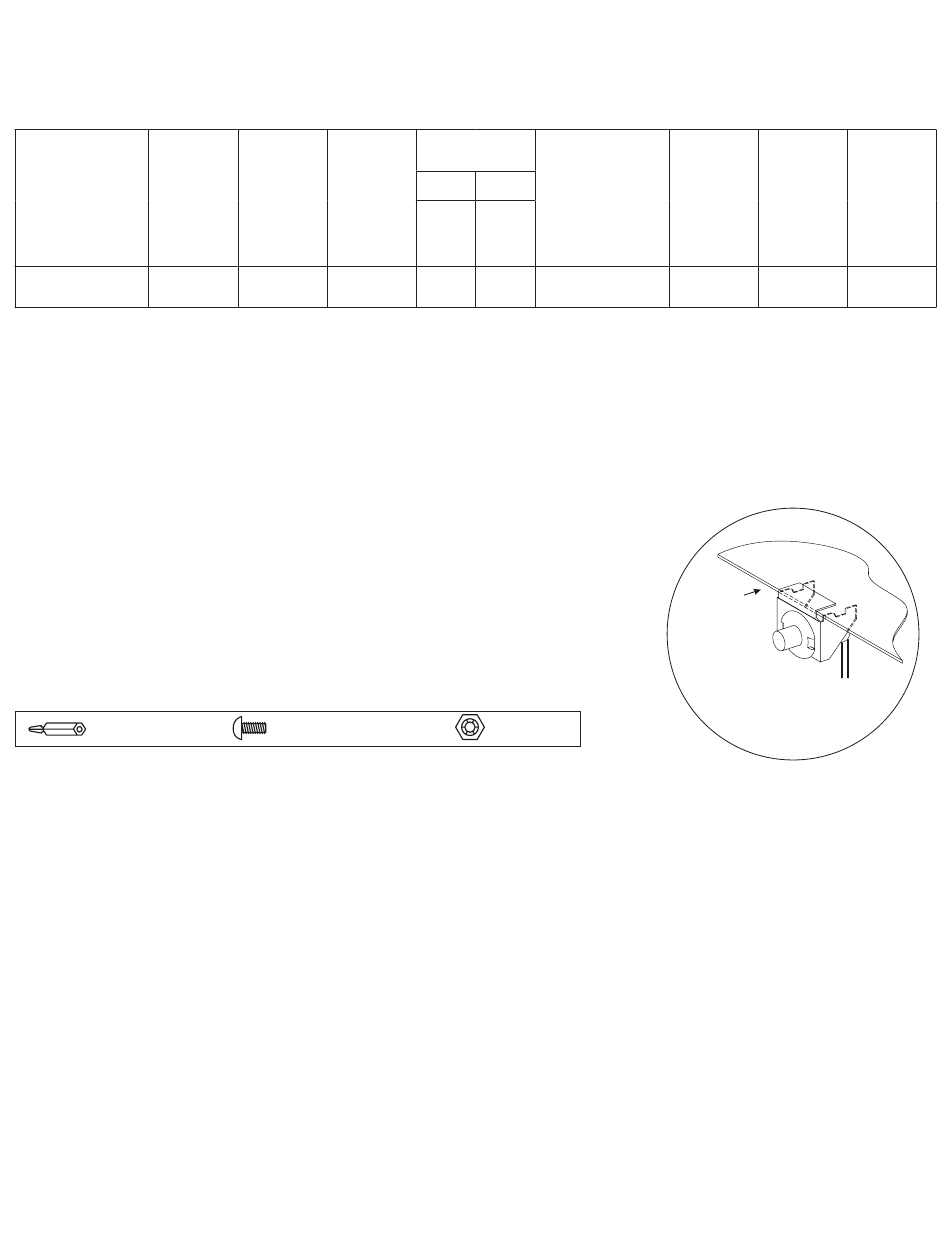

3. Mount included UL Listed tamper switch (Altronix Model TS112 or equivalent) in
desired location, opposite hinge. Slide the tamper switch bracket onto the edge of the
enclosure approximately 2" from the right side (Fig. 1, pg. 2).
Connect tamper switch wiring to the Access Control Panel input or the appropriate
UL Listed reporting device. To activate alarm signal open the door of the enclosure.
4. Mount Mercury modules to backplane(s), refer to page 3.
5. Refer to the eFlow Power Supply/Charger Installation Guide for eFlow104NB
and corresponding Sub-Assembly Installation Guides for ACM4CB and PD8ULCB for
further installation instructions.

Hardware:

Snap On Standoff
- 2 -

Configuration Chart:

Power Power
Supply Supply
Board Board
Input Fuse Battery
Rating Fuse Rating
6.3A/ 15A/
250V 32V

Installation Instructions:

| 5/16" Pan Head Screw |

Overview:

Nominal DC
Output Voltage
Maximum Supply
[DC] [Aux]
Current for Main
Output Output and Aux. Outputs
Range Range on Power Supply
(VDC) (VDC) Board
20.19- 20.19-
24VDC @ 9.2A
26.4 26.4
Lock Nut
ACM4CB ACM4CB
Board Board PD8ULCB
Input Output
Fuse PTC Output PTC
Rating Rating
10A/32V 2A
Enclosure
Edge of
Enclosure
Tamper Switch
(provided)
To Access Control Panel or
UL Listed Reporting Device
Board
Rating
2A
Fig. 1
T2MK7F4D
