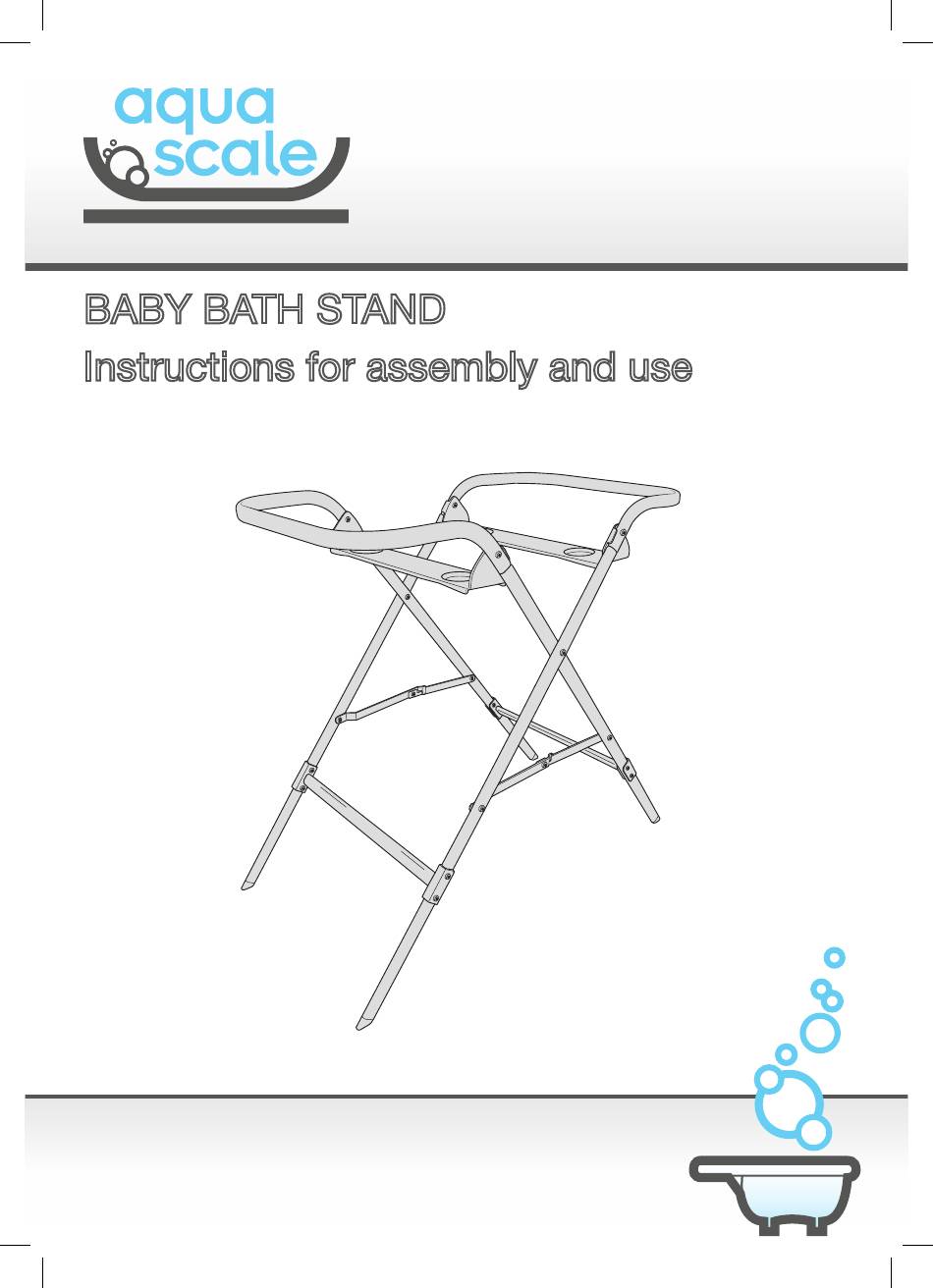

BABY BATH STAND
Instructions for assembly and use
READ BEFORE USE AND KEEP FOR FUTURE REFERENCE
Intended for use with the aquascale baby bath
The aquascale stand conforms to EN1466:2004+A1:2007
1
V

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 15-40-002 and is the answer not in the manual?

Questions and answers

Related Manuals for Aquascale 15-40-002

Summary of Contents for Aquascale 15-40-002

  • Page 1 BABY BATH STAND Instructions for assembly and use READ BEFORE USE AND KEEP FOR FUTURE REFERENCE Intended for use with the aquascale baby bath The aquascale stand conforms to EN1466:2004+A1:2007...
  • Page 3 Safety instructions The aquascale stand is designed specifically for use with the aquascale 3-in1 baby bath. WARNING: Use only on firm ground which is horizontal, level and dry. Ensure there is enough space around the bath to safely handle the child in and out of the bath.
  • Page 4 Parts list Contained in your carton are: Description A1-A2 Pairs of legs Leg strut (narrow) Leg strut (wide) Top rail (narrow) Top rail (wide) Bath support (narrow) Bath support (wide) Bolts (22mm) Bolts (25mm) Plastic washers Nuts Spanner Allen key 448mm 418mm 438mm...
  • Page 5 Assembling the bath stand Open both sets of legs (A1) and (A2) fully. Place them so that the braces are facing inwards towards one another. braces wider set legs Using the narrower strut (B1) for the narrower set legs narrower set legs and the wider strut (B2) for the wider set legs, join the two sets of legs and secure using eight 25mm bolts and eight nuts.
  • Page 6 Assembling the bath stand Using the narrower top rail (C1) for the narrower set legs and the wider top rail (C2) for the wider set legs, push the open ends of the top rails onto the ends of the legs. Using the narrower bath support (D1) for the narrower set legs and the wider bath support (D2) for the wider set legs, place the bath supports between the legs and secure using four 22mm bolts, four plastic washers and four nuts.
  • Page 7 Folding the bath stand To fold: Unlock both braces (1) by raising them in the centre by approximately an inch. Holding the two top rails, draw them together (2).
  • Page 8 Customerservice@kooltrade.co.uk Imported by Kooltrade. M34 3QA www.theaquascale.co.uk Tel: 0161 335 2508...
