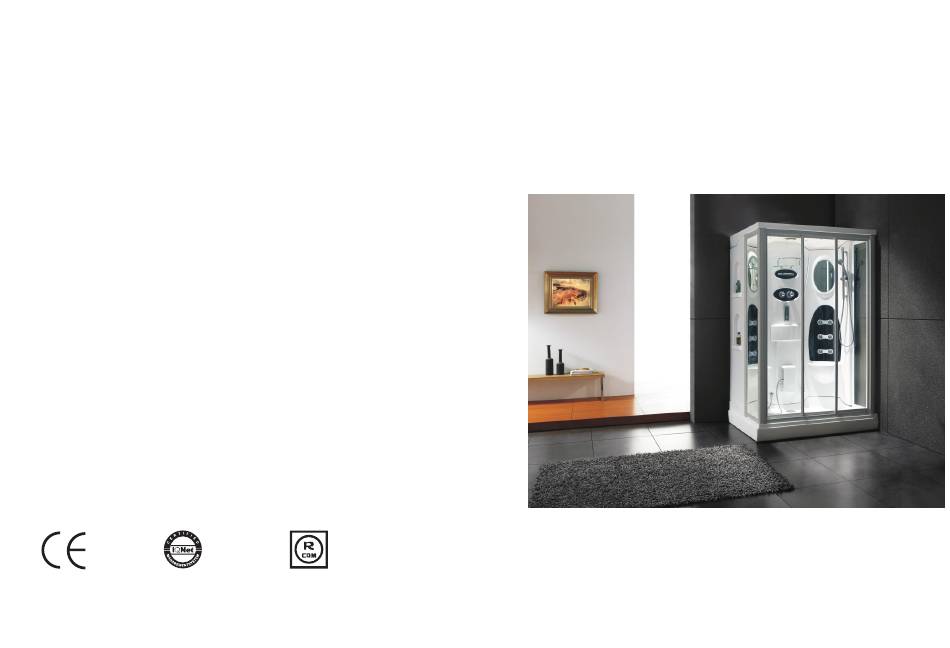

- Page 1 Steam Room Installation Manual L52 Series (L528) All set up dimensions are in Millimeters...
- Page 2 Size：1400x940x2260mm 1 2 0 L528 Steam Room structure 1 0 5 1 0 0 30A GFCI Circuit Cold Water Hot Water Three Dimensional Plane Diagram Installation Diagram 01. Water Supply : one hot water pipe and one cold water pipe, Install the DN15(G1/2) shut-off valve 1000mm from the floor, 0.15Mpa ≤Water Pressure ≤...
-
Page 3: Installation Steps
Installation Steps Mid Back Panel M6x35mm Silicone Plastic washer Pic1 Pic3 1. Install Tray Move the Tray to the desired location, every ground foot nut should touch the (2) line up the mid back panel holes to bathtub holes. Use M6x35 hexagon screws to ground, Use the leveling feet to level the tub. - Page 4 4. Install Cover 3.Install Aluminum Frame Put the top cover on the roof (1) Insert the Left fix glass and Right fix glass into left panel and right panel ( As Pic 6) (1)Align the left panel and right panel holes , use the M6x25 hexagon screws to connect them.
- Page 5 5. Install the pipe (As Water Connection Diagram) Connect Connect Handheld Waterfall Shower Connect Top Shower Water Connect old Water Waterfall Connect Connect Foot Massage Electromagnetic Valve team Box team Generator Drain Outlet 6. Connect Electrocircuit Connect Speaker, exhaust fan, and ozone and so on . 7.Sealing the shower chamber Apply clear silicone to all seams and gaps.
