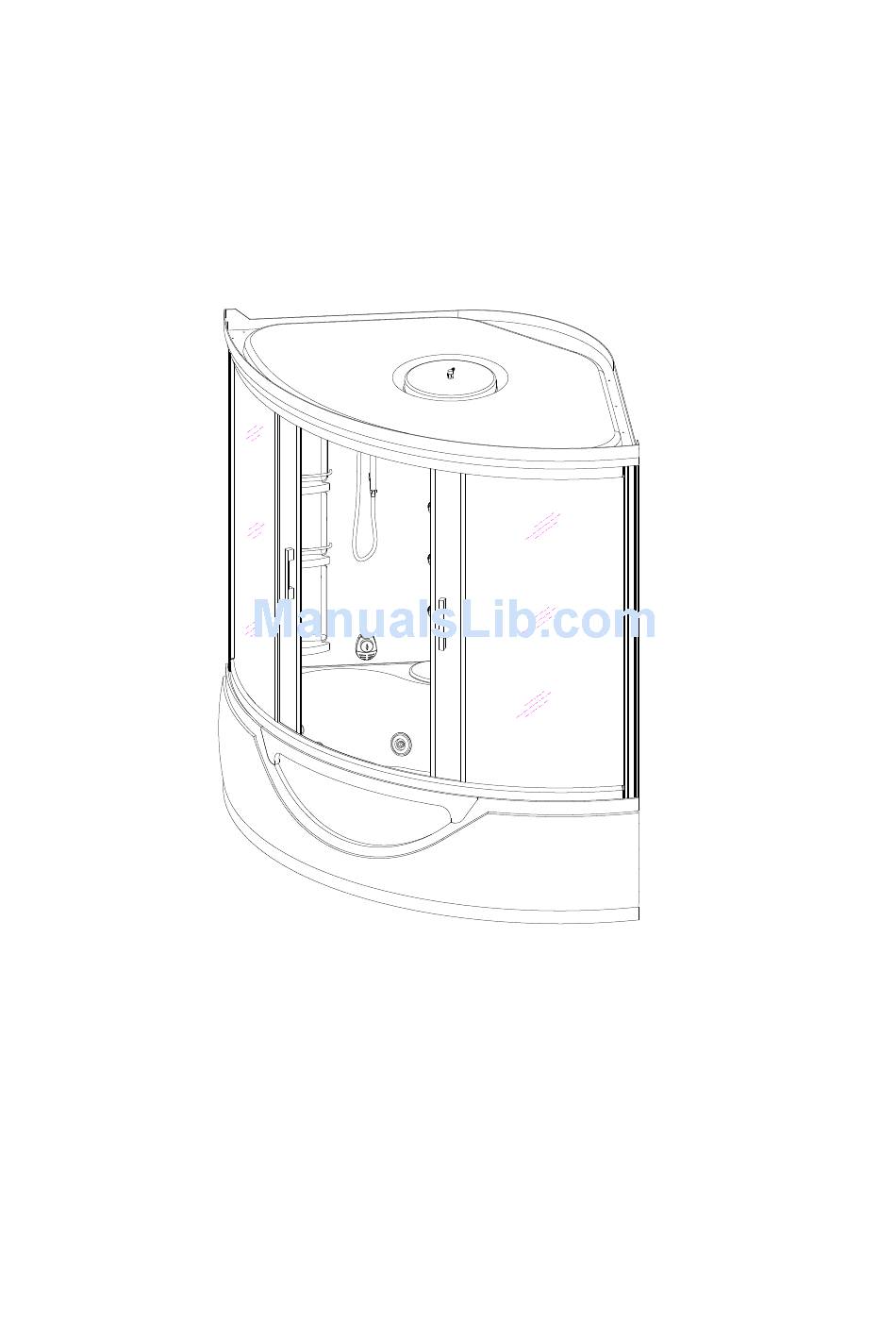

- Page 1 CARIBBEAN INSTALLATION MANUAL...
- Page 2 Thank you for choosing the Aquapeutics Caribbean computerized steam shower / whirlpool bath. Please read the following manual in its entirety before assembling your unit. It is also very important to follow the safety suggestions outlined below at every use.
- Page 3 1.2 Package information 1. Upon the arrival of your Aquapeutics spa take care to make a thorough inspection for any visible damage to the shipping container. Visible damage should be reported to your carrier immediately. All SHIPPING DAMAGE should be noted on the assigned shipping document.
- Page 4 Installation instructions Rough Plumbing & Electrical Drain pipe can be offset as much as 6 inches from tub drain. 2.2 Installation drawing for waste plug：...
- Page 5 MODEL: Caribbean Installation instructions： A、Water supply: Hot and cold water supply lines are half inch NPT pipe thread Power supply：A 220Volt，13 amp service with GFI is necessary to energize the steam room-spa and a 110 volt 11.8 amp circuit with GFI is needed for the whirlpool bath. Please note: If you have purchased a Tub with the additional heater option it is very important to understand that the electrical requirements for your unit have changed.
-
Page 6: Installation Steps
3. Installation Steps Place the shower floor unit (as pictured below 1a) ① Connect the left and right fixed glass walls (2c) 16-24 inches from its final installed location. Now adjust to the upper and lower aluminum curved rails the leveling feet (1c) to bring the unit flat and level by using a 3 foot level (1b) and an open end or adjustable (2d) by using 8 pieces 3/16 x 1 ¼... - Page 7 3. Steam room installation diagram, as follows (Figure 4) Figure 4 ①Using ¼ x 1 inch bolts (3a) connect the left and right small panels(3b,3c) to the middle panel(3d) respectively to complete the whole back panel of your steam shower (3e).(Figure 4.1) Figure 4.1...
- Page 8 Carefully lift (two people are recommended) the back panel onto the bathtub (3f), fasten them together using1/4x 1 inch bolts. (Figure4.2) Figure4.2 Then carefully lift (two people are recommended) the Glass wall and door assembly (3g) onto the bathtub, attach the glass door to the back board by using3/16x 3/4 inch bolts.(Figure 4.3) Figure 4.3 Place the ceiling /roof of the spa (3i) onto the unit, then using 1/4x...
- Page 9 ① Install the upper rollers (4b) to the sliding glass door (Don’t install the lower rollers first), Then hang it onto the curved upper rail. After that, place the lower rollers in their track push the threaded portion of the bolt through the hole in the glass door and install as shown in figures 6 and 6.1 Outside of spa Inside of Figure 6...
- Page 10 ② Assemble the handles (4c) to the sliding glass doors (Figure 7). Test the doors to see that they can be opened and closed smoothly and quietly. (Figure 8) If not then readjust the rollers as explained in the previous step. Inside of spa Outside of spa Figure 7...
- Page 11 , please Use Extreme Care not to crimp the hose as you feed it through the appropriate hole in the tub section. Photo is not of Caribbean. But connections are the same. The placement of components may be different The all silver hose is the water supply feed hose to the Steam generator. It is attached here The rubber washer (gasket) that is secured by a wire tie is inserted into the end of Steam hose ④...
- Page 12 ⑥ Please refer to the labels (with icons) on the wires of the various low voltage components. They may include Telephone, CD player/ radio, loudspeaker, LED lights, fan, control panel and the ozonizer O3 shower self cleaner. Connect the wires sharing the same labels and/or properly mated connector pairs. The radio antenna will need to be unrolled and placed for best reception.
- Page 13 This side is fed and connected by your electrician, 110 volts to power This wire when the tub or 220 volts coming from the tub when energizing is 110 volts. the steam generator. When it comes from the steam generator it is 220 volts.
- Page 14 While the Caribbean shower Spa is still 16-24 inches away from its final installed position all joints and seams should be calked with a high grade silicone sealant. Then fully test the unit. Then slide it into its final installed position.
- Page 15 Use the same technique to install the foot massage unit. Its nozzle is located approximately 16 inches below the right side (as you enter) hand held sprayer nozzle. When using the foot massager open the cover of the unit as depicted in the illustration below.
- Page 16 6. Water route connecting diagram Body...
- Page 17 Doing so will void your warrantee. There are no user serviceable parts inside. DO NOT repair or replace these units on your own. If you do experience any problems, please contact Aquapeutics’ Toll Free Customer Service line 1 (800) 290-6812 for after-sale service.
