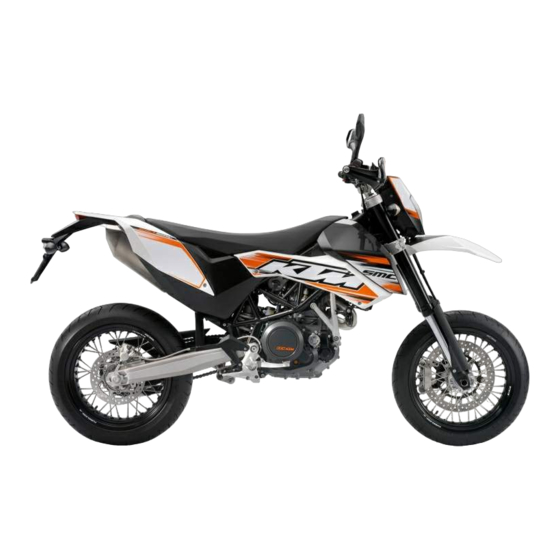

- Page 1 SETUP INSTRUCTIONS 2010 690 SMC EU 690 SMC AUS/UK 690 SMC USA Art. no. 3211470en...
- Page 3 KTM accepts no liability for delivery options, deviations from illustrations and descriptions, as well as misprints and other errors.
-
Page 4: Means Of Representation
MEANS OF REPRESENTATION Symbols used The symbols used are explained in the following. Indicates an expected reaction (e.g. of a work step or a function). Indicates an unexpected reaction (e.g. of a work step or a function). Identifies a page reference (more information is provided on the specified page). Formats used The typographical and other formats used are explained in the following. - Page 5 SET‑UP Unpacking and setting up the vehicle – Remove the box and the plastic packaging. Info To avoid damaging the motorcycle during the setup, leave the protective foil on the the vehicle until you have finished. – Check the vehicle for transport damage. –...
- Page 6 SET‑UP – Mount and tighten the rear mirror adapter and rear mirror on both sides. – Position all operating elements exactly on the handlebar. Tighten all screws. – Fit and tighten the M8 screw of the right hand guard. 600646-01 –...
- Page 7 – Fit the heel protector. ( p. 9) – Refuel. ( p. 10) – Print out the current PDI form found on KTM DEALER.NET and perform the delivery inspection. – Set kilometers or miles. ( p. 11)
-
Page 8: Mounting The Seat
WORK Removing the seat – Pull on strap and raise the rear of the seat at the same time. – Pull back the seat and lift it off. 100230-10 Mounting the seat – Hook slot of the seat onto screw , press the rear downward and at the same ... -
Page 9: Recharging The Battery
– Do not discard batteries with the household trash. Dispose of a defective battery in an environmentally compatible manner. Give the battery to your KTM dealer or to a recycling center that accepts used batteries. Warning Environmental hazard Hazardous substances cause environmental damage. -
Page 10: Installing The Battery
WORK Installing the battery – Slide the battery into the battery rack. Info The battery terminals must be at the rear. – Attach the positive cable and mount positive terminal cover – Position retaining bracket – Mount and tighten screws ... -
Page 11: Fitting Rear Fairing
WORK – Remove screws – Open the filler cap. ( p. 8) – Take off the rear fairing. – Close the filler cap. ( p. 8) 100314-10 Fitting rear fairing – Position the license plate holder and cable harness. –... - Page 12 WORK Warning Forfeiture of homologation and insurance cover The vehicle is homologated as 2-seater. If the heel protector is fitted instead of the footrest bracket, the vehicle no longer conforms to the homologation and must not be operated in this form without alterations to the registration papers. –...
-
Page 13: Setting The Clock
WORK Setting the clock 3.13 Condition The motorcycle is stationary. – Switch on the ignition by turning the ignition key to position ON – Press the MODE button repeatedly until the ODO mode is active. – Keep the MODE button and the SET button pressed simultaneously. The time display begins to flash. -
Page 14: Technical Data - Tightening Torques For Chassis
TECHNICAL DATA - TIGHTENING TORQUES FOR CHASSIS – Screw, license plate holder, bottom EJOT 3 Nm (2.2 lbf ft) – Screw, SLS valve EJOT 2 Nm (1.5 lbf ft) – Spoke nipple, front wheel M4.5 4 Nm (3 lbf ft) ®... - Page 15 TECHNICAL DATA - TIGHTENING TORQUES FOR CHASSIS ® Engine carrying screw 45 Nm (33.2 lbf ft) Loctite 243™ – Remaining nuts, chassis 50 Nm (36.9 lbf ft) – Remaining screws, chassis 45 Nm (33.2 lbf ft) ® Screw, bottom shock absorber 45 Nm (33.2 lbf ft) Loctite 243™...
- Page 16 SUBSTANCES Super unleaded (ROZ 95 / RON 95 / PON 91) According to – DIN EN 228 (ROZ 95 / RON 95 / PON 91)
- Page 17 *3211470en* 3211470en KTM-Sportmotorcycle AG 5230 Mattighofen/Austria http://www.ktm.com...
