EOS label tape and Ink ribbon loading instructions

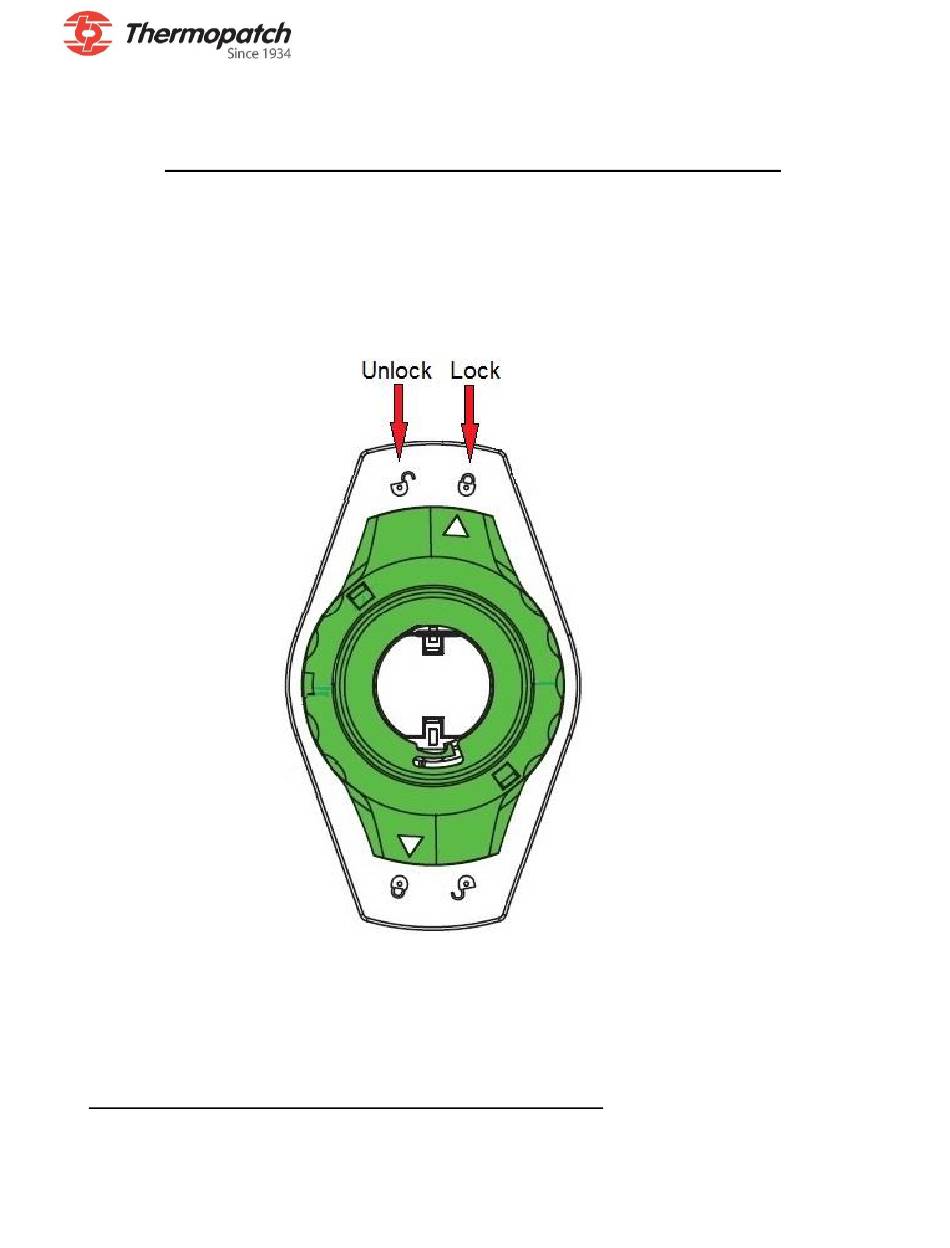

1. To load a roll of labels, open the side cover. Remove the roll retainer by turning the
green locking knob left to the unlock position, and pull it off.
2. Insert the label roll onto the roll holder, reinstall the roll retainer and push it against the
roll of tape. (It will center the labels when you push against it) Turn the green locking
knob right to the locked position.
Make sure not to push in too hard on the roll retainer. This can cause drag on the roll
of label tape resulting in printing problems.
Advertisement
Table of Contents
Related Manuals for Thermopatch EOS Series
Summary of Contents for Thermopatch EOS Series
- Page 1 800-252-6555 EOS label tape and Ink ribbon loading instructions 1. To load a roll of labels, open the side cover. Remove the roll retainer by turning the green locking knob left to the unlock position, and pull it off. 2. Insert the label roll onto the roll holder, reinstall the roll retainer and push it against the roll of tape.
- Page 2 NOTE: If your roll of label tape has a three inch core, you will need to install the core adaptor to stop the roll of labels from dragging on the bottom of the printer. Center the core adaptor on the roll holder and tighten the locking screw to hold the adapter in place.
- Page 3 3. Thread the labels under the black roller and out the front of the printer. 4. Make sure that the label roll is between the 2 red label guides and under the label sensor bar. 5. Adjust the label guides by turning the green adjustment knob on the side of the printer. Make sure the red guides do not pinch the labels together.
- Page 4 6. Insert the ink ribbon on the back roll and thread it under the printhead and tape it to the rewind roll. See arrows for which direction the ink ribbon feeds and which way the rewind roll turns. 7. Plug in the printer and turn it on. 8.
- Page 5 9. You adjust the position of the label sensor, (yellow light), with the small red pin that is located between the printhead locking lever and the knob for adjusting the label tape guides. See step #4 for location of the adjustment pin You will need a pen or something small to push the red pin in, so it pops out.
