Summary of Contents for Quantum TRU-BALANCE 3

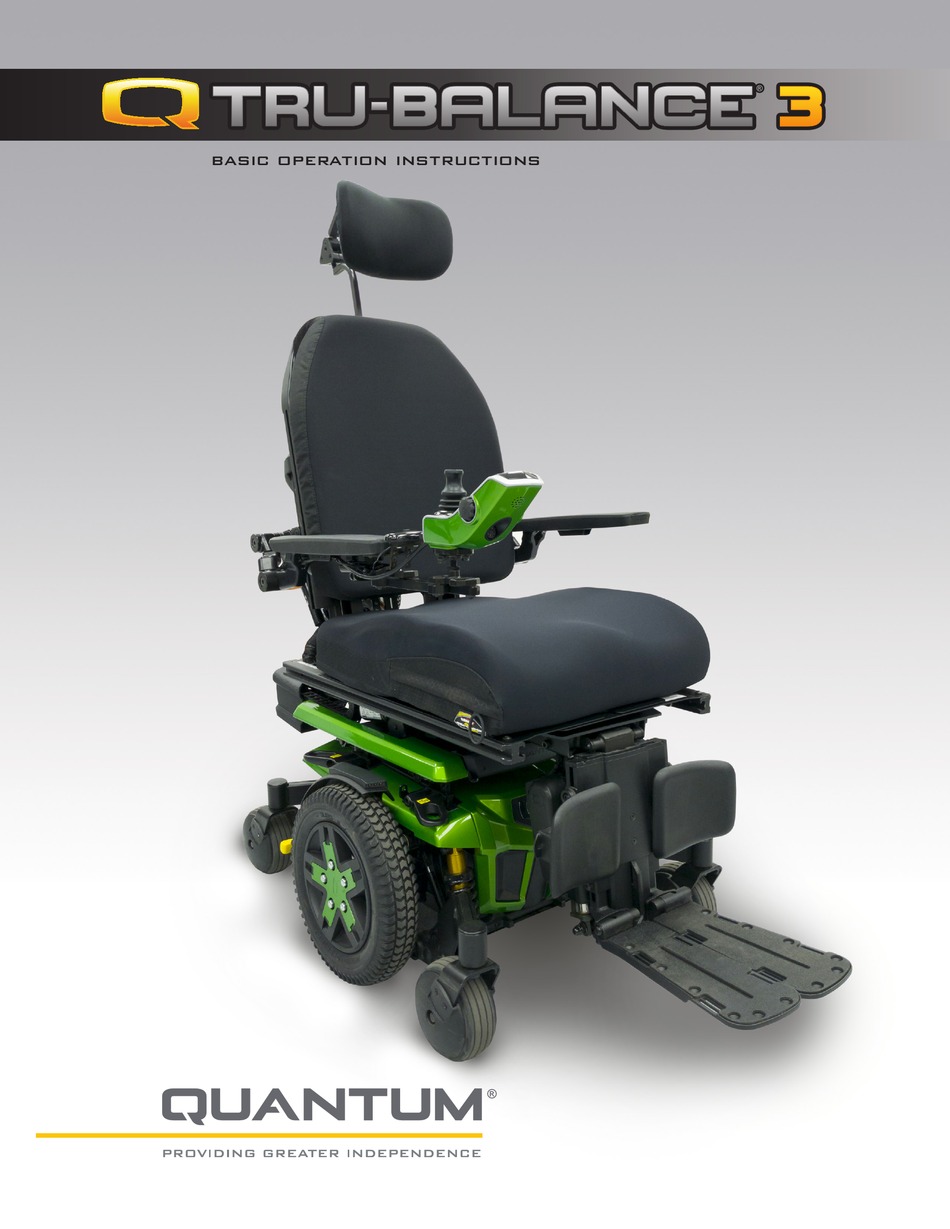

- Page 1 basic operation instructions...
- Page 2 A wheelchair component is a device intended for medical purposes that is generally sold as an integral part of A Quantum Rehab Provider or a qualified technician must perform the initial setup of this power chair and a wheelchair, but may also be sold separately as a must perform all of the procedures in this manual.
-
Page 3: Table Of Contents
BASIC OPERATION INSTRUCTIONS Table of Contents Language Usage This owner’s manual is intended for distribution in all English- Product Safety Symbols ......... 4 speaking countries where our Power Chairs are sold. We have chosen to compose this manual using language and spellings common to the USA. -
Page 4: Product Safety Symbols
Chair. It is fully adjustable to meet the individual needs of the user, and it is mounted to a Quantum power base to provide maximum maneuverability. Read and follow the instructions in the Reusable hook and loop fasteners are included in your owner’s... - Page 5 The center of gravity of your seating system was factory set to a position that meets the needs of the demographic majority of users. Your Quantum Rehab Provider has = Accessory Channel evaluated your seating system and made any necessary = Cushions Not Shown adjustments to suit your specific requirements.
-
Page 6: Operating The Tru-Balance® 3 Power Positioning

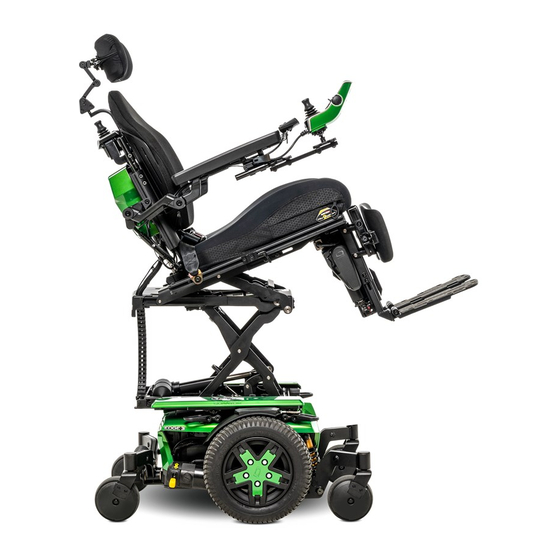

15). 12 in. (30.5 cm) Range of Motion Your TRU-Balance 3 Seating System provides up to 50° of tilt, 12 in. (30.5 cm) of lift, can recline 85°–175°, and can tilt/ recline up to 175°. See figure 2. 50°... -
Page 7: Ilevel® Feature
Feature (Optional) Your power chair may be equipped with the iLevel feature that will be used in conjunction with your TRU-Balance 3 Power Positioning System. The iLevel feature is mounted on a Quantum power base for maximum stability when the seating is elevated. - Page 8 25% when elevated. If this warning appears while on level ground, please discontinue use of iLevel feature and consult your Quantum Rehab Provider for assistance.
-
Page 9: Flip-Forward Back
BASIC OPERATION INSTRUCTIONS Flip-forward Back (Optional) The flip-forward back allows the user to flip the seatback forward for easier transportation. See figure 5. Your seating system may be equipped with one of two flip-forward backs. To flip the seatback forward: 1. -
Page 10: Armrest Options
Not all 9. Tighten front screw on front armrest support joint. See figure 8. armrest options are available on all TRU-Balance 3 Power Positioning Systems. 10. Repeat, if necessary, for the other armrest. - Page 11 BASIC OPERATION INSTRUCTIONS Seatback Seatback Side Rail Rear Armrest Support Joint Rear Screw Setscrews Front Armrest Support Joint Front Screw Armrest Support Turnbuckle 14–16 in. (35.6–40.6 cm) 11–13 in. (27.9–33 cm) 8–10 in. (20.3–25.4 cm) Screw Bottom Screw Figure 8. Flip-up Armrest Height and Angle Adjustments...
- Page 12 BASIC OPERATION INSTRUCTIONS Two Post Armrests The height adjustment range for the Two Post Armrest is 9–13 in. (22.9–33 cm) in 1-in. (2.54-cm) increments. This range is measured from the top of the seat rail to the top of the arm pad. You can also flip up the armrests or remove them for transfer.
- Page 13 BASIC OPERATION INSTRUCTIONS Heavy Duty Drop-in Armrests The Heavy Duty Drop-in Armrests are designed to be removed for easier transfer onto and off of the power chair. See figure 11. The armrest height and position can be adjusted. See figure 12. To remove the armrest assembly: 1.
- Page 14 BASIC OPERATION INSTRUCTIONS Adjustable Drop-in Armrests The Pediatric Single Post Quick Height Adjustable Drop-in Armrests can be adjusted and easily removed for easier Locking transfer onto and off of the power chair. The total height adjustment range is 3 in. (7.62 cm) in 3/8-in. (0.95-cm) increments.
-
Page 15: Optional Toggle Operation
BASIC OPERATION INSTRUCTIONS Toggle 1 2 3 4 Operation Tilt Return to Seated Position Recline Return to Seat Position Elevate Seat Return to Seat Position Combined Leg Rests/Foot Platform Up Combined Leg Rests/Foot Platform Down Independent Leg Rests Up Left Right Independent Leg Rests Down Left... -
Page 16: Transfers
BASIC OPERATION INSTRUCTIONS Transfers Optional transfer bars are available. Transfer bars are designed to make it easier to reposition while seated in the power chair and to transfer into or out of the power chair. Refer to the Consumer Safety Guide provided with your power chair owner’s manual for additional information on transfers. - Page 17 BASIC OPERATION INSTRUCTIONS To change the controller extension: 1. Turn off the power to the controller. 2. Remove the controller harness from the clips securing it to the armrest. 3. Flip and then rotate the release lever to loosen the clamp.
-
Page 18: Seatback
BASIC OPERATION INSTRUCTIONS Seatback The Seatback can be adjusted for height and width. To adjust the height and/or width of the seatback: 1. Loosen the hardware. See figure 21. 2. Place the seatback into the desired height and/or desired width. 3. -
Page 19: Cleaning
BASIC OPERATION INSTRUCTIONS Cleaning The seatback cushion can be easily cleaned. WARNING! Headrest Do not use bleach when washing the outer cover. Doing so may cause damage to the cover. Optional Lateral Anchor Hook Follow all safety instructions for the proper use of the Supports (1 of 2) disinfectant and/or cleaning agent before applying it... -
Page 20: Lateral Adjustment
Lateral Adjustment The laterals can be easily installed and adjusted to different heights and widths. NOTE: Laterals should only be installed and adjusted by your Quantum Rehab Provider. Lateral To install laterals: Track 1. Install but do not tighten the attachment screws in the... - Page 21 NOTE: If the power chair is occupied when installing or adjusting the laterals, first ensure that the occupant Plastic shroud is in a secure position. Contact your Quantum Rehab Provider with any questions you may have. To install laterals: 1. Remove the plastic shroud from the lateral extrusion on the side of the seatback.
-
Page 22: Headrest Adjustment
Make sure all hardware is secured properly, but do not „ overtighten any hardware. To clean the TRU-Balance 3 seating system, wipe it with „ a cloth dampened with mild soap and water. Thoroughly dry the unit before using. To properly clean the TRU- Comfort back cushion, follow the cleaning instructions in the “TRU-Comfort”... -
Page 23: Warranty
Three-Year Limited Warranty (1) year from the date of purchase and to the extent For three (3) years from the date of purchase, Quantum will permitted by law. Any and all implied warranties are repair or replace at our option to the original purchaser, free excluded. - Page 24 24 BASIC OPERATION INSTRUCTIONS...
- Page 25 BASIC OPERATION INSTRUCTIONS...
- Page 26 26 BASIC OPERATION INSTRUCTIONS...
- Page 28 B.V. 401 York Avenue (Authorised EU Representative) Duryea, PA 18642 De Zwaan 3 www.quantumrehab.com 1601 MS Enkhuizen The Netherlands Canada www.quantumrehab.eu 5096 South Service Road Italy Beamsville, Ontario L0R 1B3 Via del Progresso, ang. Via del Lavoro www.quantumrehab.com Loc. Prato della Corte 00065 Fiano Romano (RM) Australia www.quantumrehab-italia.it...
