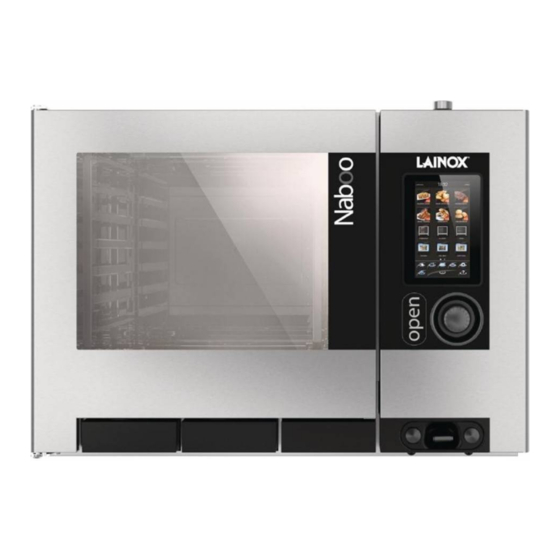

- Page 1 I N S T R U C T I O N M A N UA L Naboo Co o k i n g D e v i c e Technical assistance 90028010rev00 90028010rev00...
- Page 2 90028010rev00...
-
Page 3: Table Of Contents
TABLE OF CONTENTS PAGE 1 • GENERAL INFORMATION 2 • SPECIAL INSTRUCTIONS 3 • BASIC KNOWLEDGE 4 • STARTING NABOO 5 • PRIMARY ICONS 6 • INTERACTIVE COOKING 7 • SETTING UP MANUAL COOKING 8 • SETTING UP MULTI-LEVEL MANUAL COOKING 9 • INTELLIGENT MULTI-LEVEL RECOGNITION 10 • RECALLING A MULTI-LEVEL FOLDER 11 • WASHING SYSTEM 12 • PROGRAMMING 13 • MY NABOO 14 • SETTINGS MODELS NAEB ../ NAGB ..NAEV ../ NAGV ..The manufacturer accepts no liability for any inaccuracies in this manual The reproduction or copying of any part of this manual by any means attributable to printing or copying errors. We reserve the right to modify whatsoever is strictly forbidden unless authorized previously in writing by our products as we deem fit, without impairing their basic features. - Page 4 1 • AVVERTENZE GENERALI 1 • GENERAL REMINDERS Repairs may become necessary over time; these and all major servicing LOGO o p e r a t i o n s m u s t b e p e r f o r m e d TYP.
- Page 5 2 • INDICAZIONI PARTICOLARI 2 • POINTS TO REMEMBER • Before any food is cooked in a new oven, the interior must be thoroughly cleaned (see “Daily Cleaning”). • At the end of the working day, clean the • CAUTION oven thoroughly inside and out; this will No cooking with alcohol added is ensure smooth operation of the appliance permitted!
-
Page 6: Basic Knowledge
3 • BASIC KNOWLEDGE You can interact with NABOO using your fingertips to touch, drag and scroll the objects on the touchscreen. Control the touchscreen using the following actions: • Touch Touch once to select or start a recipe. • Press and hold Press and hold an element for more than 2 seconds. • Scroll Drag up or down to scroll. On some screens you can also scroll from side to side. -
Page 7: Primary Icons
5 • PRIMARY ICONS 1 - ICS Multi-level Cooking 7 - Programming mode 2 - ICS Automatic Cooking 8 - Washing 3 - Multi-level folder 9 - Settings 4 - Cooking folder 10 - My Naboo - Recipe archive present in Naboo 5 - Manual mode 11 - Cloud 6 - Multi-level mode... -
Page 8: Interactive Cooking
6 • INTERACTIVE COOKING Select the ICS icon to begin "one touch" cooking, starting with predefined settings. Naboo starts and when it reaches the set temperature, a popup appears instructing you to insert the product. Based on the selected cooking method, ICS automatically proposes parameters that can be customised as needed. • DEGREE OF BROWNING This is set through the touchscreen. Scrolling to the right increases the value and scrolling to the left decreases it. • DEGREE OF COOKING This is set through the touchscreen. Scrolling to the right increases the value and scrolling to the left decreases it. - Page 9 6 • INTERACTIVE COOKING Press "Display recipe" to view all of the cooking phases. Recipe view Press "HACCP" to see the HACCP graphic again. Modify At the end of cooking, a buzzer sounds and a popup signals that cooking has completed. 90028010rev00...
-
Page 10: Setting Up Manual Cooking
7 • SETTING UP MANUAL COOKING Press the icon to set Manual cooking. • Select a cooking mode. The cooking modes are: Convection, Steam and Mixed. Naboo starts with a default temperature based on the mode selected and infinite time. Once the cooking mode has been set, the following cooking parameters can be customised: • Temperature This is set through the touchscreen. Scrolling to the right increases the value and scrolling to the left decreases it. The value shown in the centre is the set value; the value to the right is the actual value. • Timed / Core probe Timed cooking is set by default. - Page 11 7 • SETTING UP MANUAL COOKING • Fastdry/Autoclima This is set through the touchscreen. Scrolling to the right increases the value and scrolling to the left decreases it. The value displayed in the centre is the set value. NOTE: In steam mode, the ECOVAPOR and TURBOVAPOR mode selection keys are displayed. • Fan Speed. This is set through the touchscreen. Scrolling to the right increases the value and scrolling to the left decreases it. If Time /Core Temperature is set, when finished cooking, a buzzer sounds and a popup signals that cooking is complete. 90028010rev00...
-
Page 12: Setting Up Multi-Level Manual Cooking
8 • SETTING UP MULTI-LEVEL MANUAL COOKING Press the icon to set Multi-level Manual cooking. Select a cooking mode. The cooking modes are: Convection, Steam and Mixed. Naboo starts with a default temperature based on the mode selected and infinite time. Once the cooking mode has been set, the following cooking parameters can be customised: • Temperature This is set through the touchscreen. Scrolling to the right increases the value and scrolling to the left decreases it. The value shown in the centre is the set value; the value to the right is the actual value. • Timed / Core probe Timed cooking is set by default. To switch to probe cooking, press the related key. This is set through the touchscreen. Scrolling to the right increases the value and scrolling to the left decreases it. The value shown in the centre is the set value; the value to the right is the actual value. 90028010rev00... - Page 13 8 • SETTING UP MULTI-LEVEL MANUAL COOKING • Fastdry/Autoclima This is set through the touchscreen. Scrolling to the right increases the value and scrolling to the left decreases it. The value displayed in the centre is the set value. NOTE: In steam mode, the ECOVAPOR and TURBOVAPOR mode selection keys are displayed. • Fan Speed. This is set through the touchscreen. Scrolling to the right increases the value and scrolling to the left decreases it. 90028010rev00...
- Page 14 8 • SETTING UP MULTI-LEVEL MANUAL COOKING Pressing the "PLAY" button starts the cooking cycle and switches to the cooking level settings screen. Select the desired level directly on the screen. • Level customisation: Press once on the set level to modify the values and confirm with OK. A popup appears each time indicating the completed level. 1 4 90028010rev00...
-
Page 15: Intelligent Multi-Level Recognition
9 • INTELLIGENT MULTI-LEVEL RECOGNITION When the " " icon is pressed during multi-level cooking, Naboo verifies the cooking compatibility of the various dishes and proposes those that can be performed at the same time. Select the cooking cycles that are to be added and press the "ADD" icon. Once added, they can be dragged to the levels desired. 1 5 90028010rev00... -
Page 16: Recalling A Multi-Level Folder
10 • RECALLING A MULTI-LEVEL FOLDER Select the icon for the desired multi-level folder. Naboo starts. Drag the cooking cycles directly to the levels desired. A popup appears each time indicating the completed level. 1 6 90028010rev00... -
Page 17: Washing System
11 • WASHING SYSTEM Press the icon to select the desired washing cycle. Naboo is equipped with 5 washing programs: • Manual (A simple procedure that allows thorough cleaning in a short period of time with limited intervention on the part of the operator). • Rinse (Procedure for a quick rinse of the oven without the operate intervening directly in the cleaning operations). -
Page 18: Programming
12 • PROGRAMMING Press the icon to create a new Manual Program, Multi-level program or modify an existing program. SETTING UP A MANUAL PROGRAM Press the icon to create a new Manual Program. Proceed as if setting up Manual cooking. To add a cycle, press "+" and set the subsequent cycles as with manual cooking until the program is completed. SETTING UP A MULTI-LEVEL PROGRAM Press the icon to create a new Multi-level Program Proceed as if setting up Manual Multi-level cooking. MODIFYING AN EXISTING PROGRAM Press the icon to modify an existing program. Search for the program to be modifying by keying in at least part of the name of the program. - Page 19 12 • PROGRAMMING SAVING A PROGRAM Press the icon to access the screen to save the program. • Set the name of the program (minimum 3 characters) • Set the program icon by pressing the icon and selecting one from among those proposed. • Set the additional information: - Context: Information regarding the description of the recipe, season, origin and history of the dish.
-
Page 20: My Naboo
13 • MY NABOO Press the icon to access My Naboo. Type Country Category Find My Naboo is the archive of all of the Naboo cooking programs. From My Naboo you can manage all of the programs contained in Naboo. By selecting a program you can see all of the information regarding the program and the related cooking phases. - Page 21 13 • MY NABOO SEARCH PROGRAMS Type Country Category Find In My Naboo I can look up programs by: • Name: by keying the text to look for in the appropriate field. • Type: by choosing from among the available values (for example: Pasta, Meat, Vegetables, Fish, Smokegrill, Night Cooking, Pastries, etc.). • Country: by choosing from among the available values (for example: International, Italy, Germany, Austria, France, Russia, etc.). • Category: by choosing from among the available values (for example: Quick cooking, Grill cooking, Finger Food, Fast Food, Happy Hour, etc.).
-
Page 22: Settings
14 • SETTINGS Press the icon to access the Naboo settings. • In this menu, the settings can be modified for the following: Block Software update Brightness SERVICE menu and Energy Savings Volume Wi-Fi Size Language Home icon HACCP Log download Date and Time Multi-level settings 90028010rev00... - Page 23 90028010rev00...
- Page 24 ALI S.p.A. - Via Schiaparelli 15 - Z.I. S. Giacomo di Veglia - 31029 Vittorio Veneto (TV) - Italy - Tel. (+39) 0438 9110 - Fax (+39) 0438 912300...
