AMB-OS AMR-100 Installation

NOTE
This document summarizes the installation of the AMR-100. For the complete
instructions on installing the AMR-100I, refer to the AMR-100 installation manual.

INSTALLATION

AUDIO

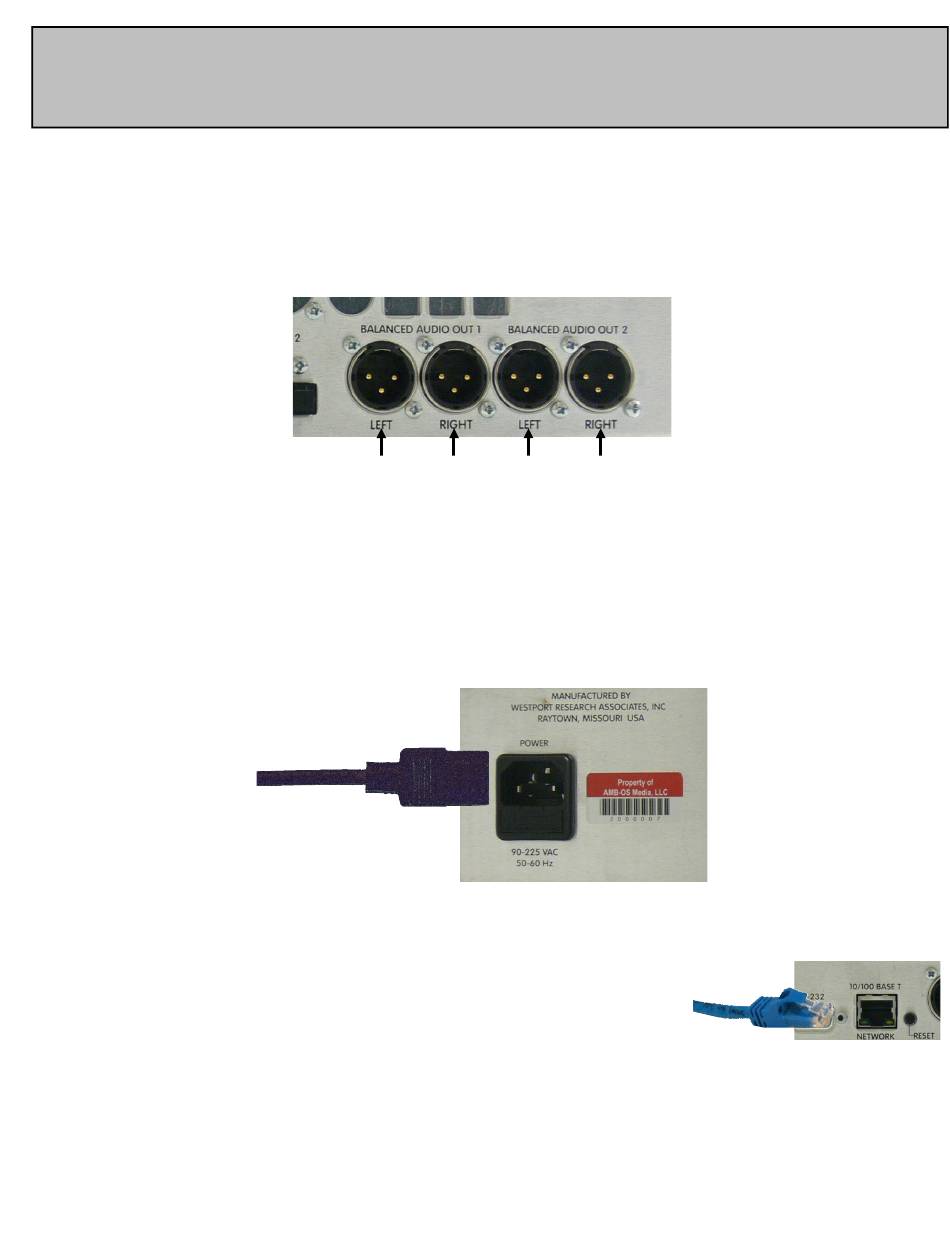

The analog audio connectors are standard XLR connectors. The two stereo ports can be played in stereo (2 stereo
ports), all mono (4 mono ports) or mixed (1 port stereo and the other 2 mono channels). Please refer to the AMR-100I
manual for a full discussion on the use of ports.
Left Right Left Right
Port 1 Port 2
The audio ports do not need to be connected in order to transfer files from the AMR-100I to your computer playback
system.

POWER

After connecting the Audio, you can connect the AC. When you plug in the power cord, the light on the front will
light and the unit will begin its power up sequence and initialization process. This takes about 20 seconds.
Remember, the power light on the front panel just indicates power and is not a switch.
After the receiver has finishing booting, set the IP address of the receiver and connect the Ethernet cable.
Ethernet CABLE
Plug in the Ethernet cable in the RJ-45 connection on the back of the unit.
After a short while, the status indicators will change to black with clear
text indicating a successful connection to the Internet and the Amb-OS
servers. This could take up to twenty minutes, but pressing the reset switch on the
back of the AMR-100 causes the receiver to communicate immediately to the AMB-OS receivers.
