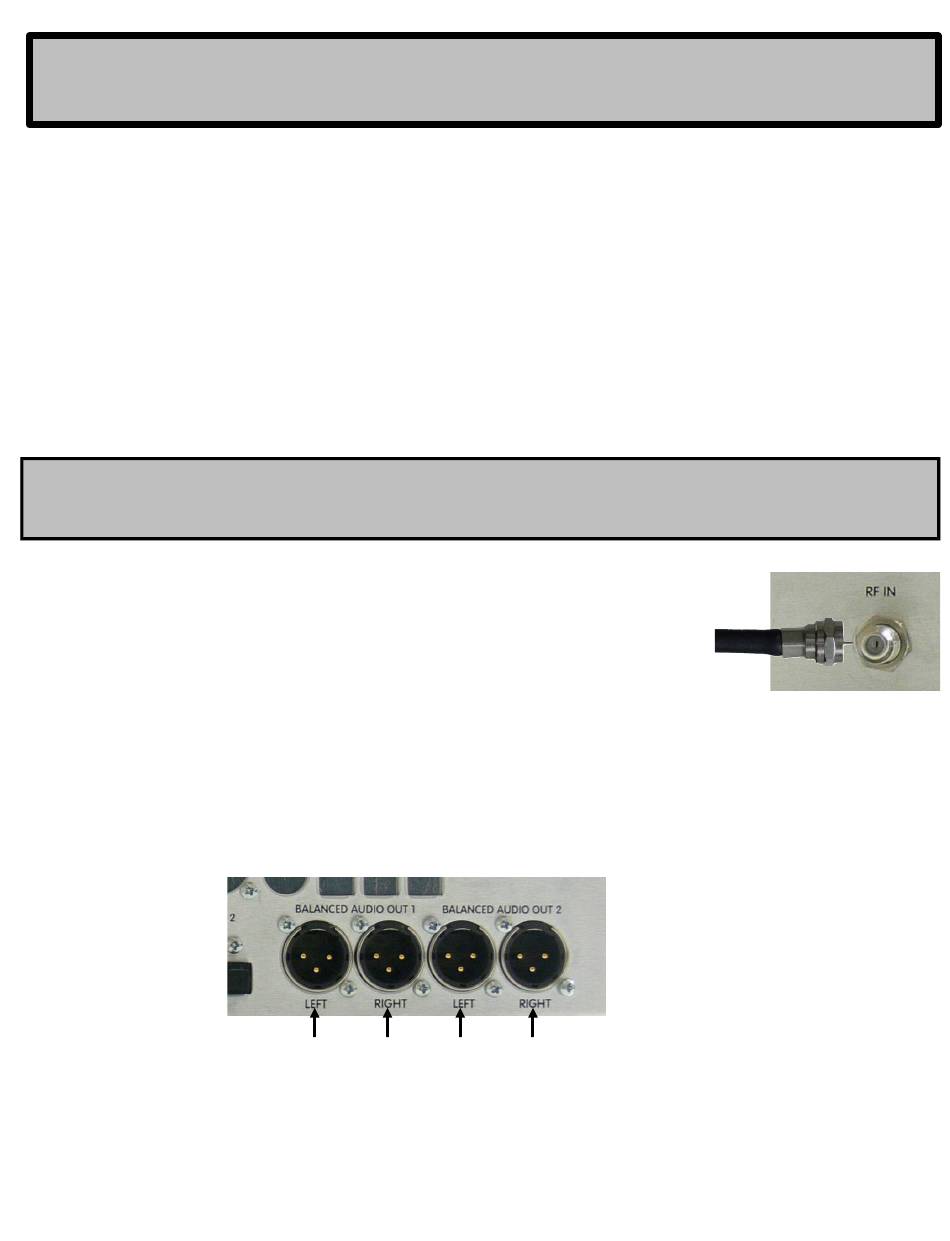

This document summarizes the installation of the AMR-100. For the complete
instructions on installing the AMR-100, refer to the AMR-100 installation manual.
Connection order
1. Attach the RF cable
2. Attach the Audio cables (if used)
3. Apply power
4. Configure the Ethernet settings (if not using DHCP)
5. Attach the Ethernet cable (strongly recommended)
The following are provided to connect the AMR-100 to the satellite antenna.
1 – RF Splitter
1 – DC Block
2 – RG-6 cables
Shorting the center lead of the RF cable to the shield can damage the receiver.
The AMR-100 uses the same satellite and transponder as the existing Wegener Unity
receiver(s) and the Moody XDS receiver. When replacing an existing receiver and just using
the AMR-100 as the only receiver, attach the RF cable to the RF connector on the back
of the receiver and then connect the audio, power and Ethernet.
With just one additional receiver sharing the satellite antenna use the supplied splitter
and cables to connect RF to both receivers. Refer to RF wiring diagrams.
To connect the AMR-100 to RF with multiple receivers sharing the satellite antenna refer to the instructions in RF
wiring diagrams. If the DC power for the antenna's LNB comes from another receiver, it can continue to supply
Power, but the supplied two port splitter and the DC block should be used. Follow instructions in the RF wiring
diagram for either two receivers or multiple receivers.
The analog audio connectors are standard XLR connectors.
NOTE
INSTALLATION
RF
WARNING
AUDIO
Left
Right
Left
Port 1
Right
Port 2
®
4000
Advertisement
Table of Contents
Related Manuals for AMB-OS AMR-100
Summary of Contents for AMB-OS AMR-100
- Page 1 RF to both receivers. Refer to RF wiring diagrams. To connect the AMR-100 to RF with multiple receivers sharing the satellite antenna refer to the instructions in RF wiring diagrams. If the DC power for the antenna’s LNB comes from another receiver, it can continue to supply power, but the supplied two port splitter and the DC block should be used.
- Page 2 19. Press [BACK] to save the changes. After configuring the Ethernet settings it may take several minutes for the AMR-100 to communicate the Amb-OS servers and clear the Ethernet fault indicated by relay 6 being active (last box on the right of the display).
- Page 3 DC block on the input on the AMR-100 To have the AMR-100 to provide power to the LNB, install the DC Block on the Wegener Unity ® or Moody XDS receiver and swap the RG-6 cables coming from the splitter. Remember, that in order for a receiver to power the LNB through the supplied splitter it must be connected to the power pass port (see #3 above).
- Page 4 ® With only one Wegener Unity 4000 receiver and it supplies the DC power to the LNB, the newly-added AMR-100 must have the DC Block installed on it! With a Wegener Unity ® receiver and a Moody XDS receiver or any combination of multiple receivers connected to the satellite antenna and have an open position on an existing multiple port splitter.
