ASSEMBLY INSTRUCTIONS

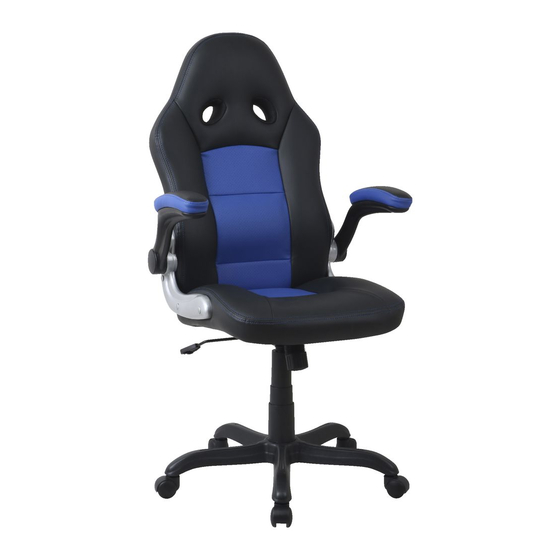

BATHURST HIGH BACK RACER CHAIR
This design and instruction booklet is subject to copyright.
www.officeworks.com.au
For spare parts or hardware call (03) 9310 3011 or email hardware@kyvas.com.au
JBBATHCHRD/JBBATHCHBE
JBBATHCHWH/JBBATHCHBK
Weight capacity: 120kgs
1/10
1CTN
Advertisement
Related Manuals for J.Burrows JBBATHCHRD
Summary of Contents for J.Burrows JBBATHCHRD

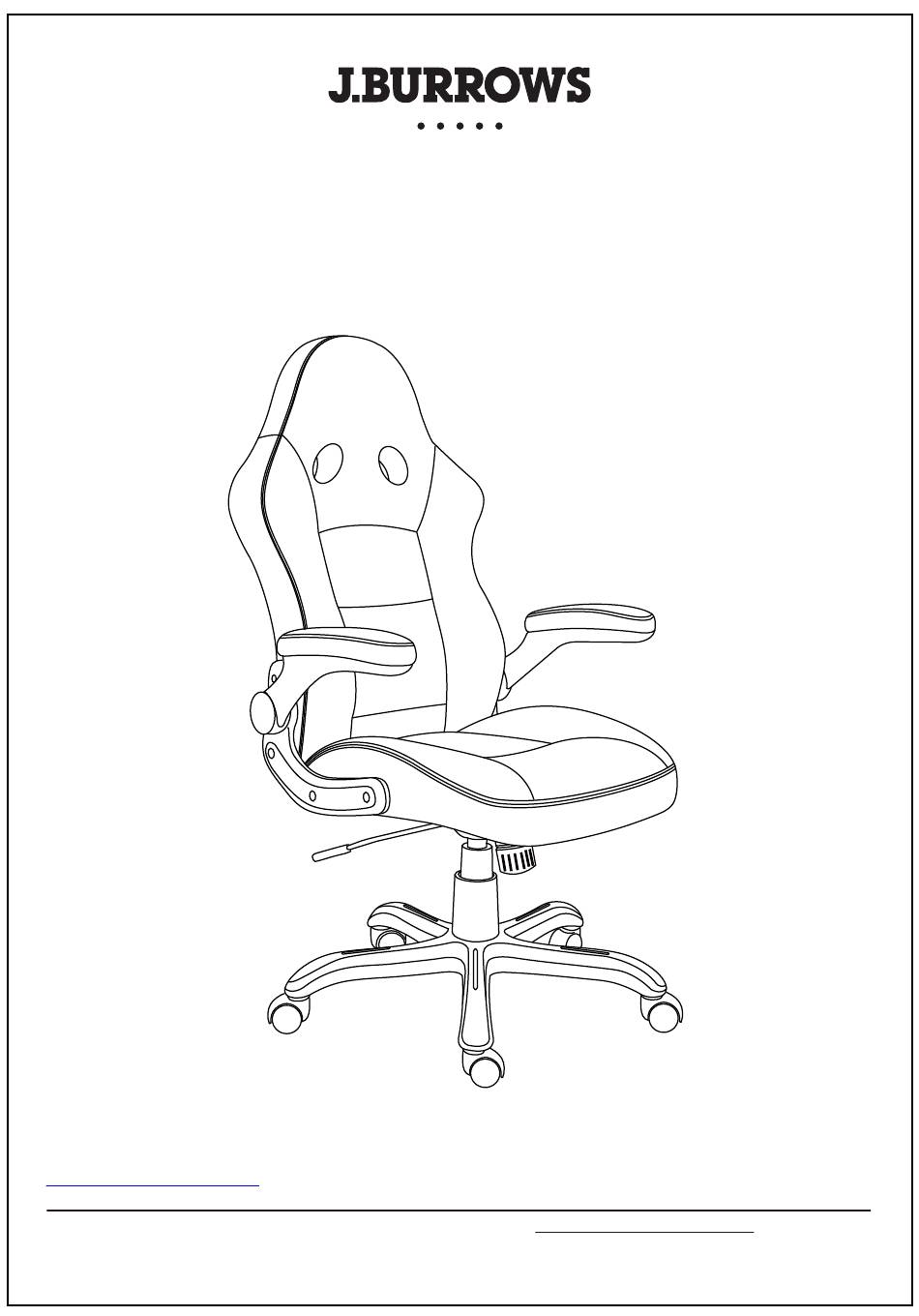

- Page 1 ASSEMBLY INSTRUCTIONS BATHURST HIGH BACK RACER CHAIR JBBATHCHRD/JBBATHCHBE JBBATHCHWH/JBBATHCHBK Weight capacity: 120kgs This design and instruction booklet is subject to copyright. www.officeworks.com.au 1CTN For spare parts or hardware call (03) 9310 3011 or email hardware@kyvas.com.au 1/10...
- Page 2 Assembly Video • To view an assembly video, go to https://www.officeworks.com.au • Search the product by item code or name: • Click on the icon to watch the video. (03) 9310 3011 NOTE • Please check you have all hardware before assembly. •...
- Page 3 3/10...
- Page 4 Step 1 Note: Turn the Star Base (G) upside down. Push the Castors (H) firmly into hole at the end of each leg. Turn the Star Base (G) upright and insert Gas Lift (E) into the center hole of Star Base (G). Place cover (F) over the Gas Lift (E). Step 2 Note: Align the Seat Plate (D) so the FRONT of the Seat Plate matches the FRONT label on the bottom of the Seat Cushion (B).
- Page 5 Step 3 Note: Place assembled seat on the Gas Lift (E). Push down firmly until connection is secure. Step 4 Note: Attach Armrests (C) to the assembled Seat Cushion (B) using 4x Screws (J) with Allen Key (M). Do not tighten Screws fully until you have completed assembly. 5/10...
- Page 6 Step 5 Note: Attach Back Cushion (A) to Armrests (C) by securing 2x Screws (J) to the lower holes of the Back Cushion (A) as shown. Do not tighten Screws fully until Step 7. Step 6 Note: Push the Back Cushion (A) to the upright position. Assemble 2x Screws (J) into the top holes of Back Cushion (A).
- Page 7 Step 7 Note: Fully tighten all Screws (J) with Allen Key (M). Press the Plastic Caps (L) into the Armrest holes to cover the screws. Step 8 Your Bathurst High Back Racer Chair is now complete and ready for use. IMPORTANT NOTE: Periodically check and re-tighten screws.
-
Page 8: Care Instructions
Care Instructions • Wipe with a damp cloth and mild soap. Wipe dry immediately with an absorbent dry cloth. • Treat spills immediately with an absorbent cloth by blotting the spill. • Do not use detergents, solvents or abrasive cleaners. •... - Page 9 BATHURST HIGH BACK RACER CHAIR Functionality Flip Back Armrest FLIP BACK ARMREST Chair Height Adjustment - To increase chair height pull lever upward while li ing body weight slightly off the seat. - Release lever at desired height. - To lower chair height sit fully into the chair and pull lever upward.
- Page 10 Warranty 3 years Product Warranty – valid for Australian customers only Officeworks Ltd warrants that this product will be free from defects and work as intended for 3 years from the date of purchase by the original customer. If the product has any defects or does not work as intended during the Warranty Period, Officeworks will, at its election and at its expense, repair or replace the product.
