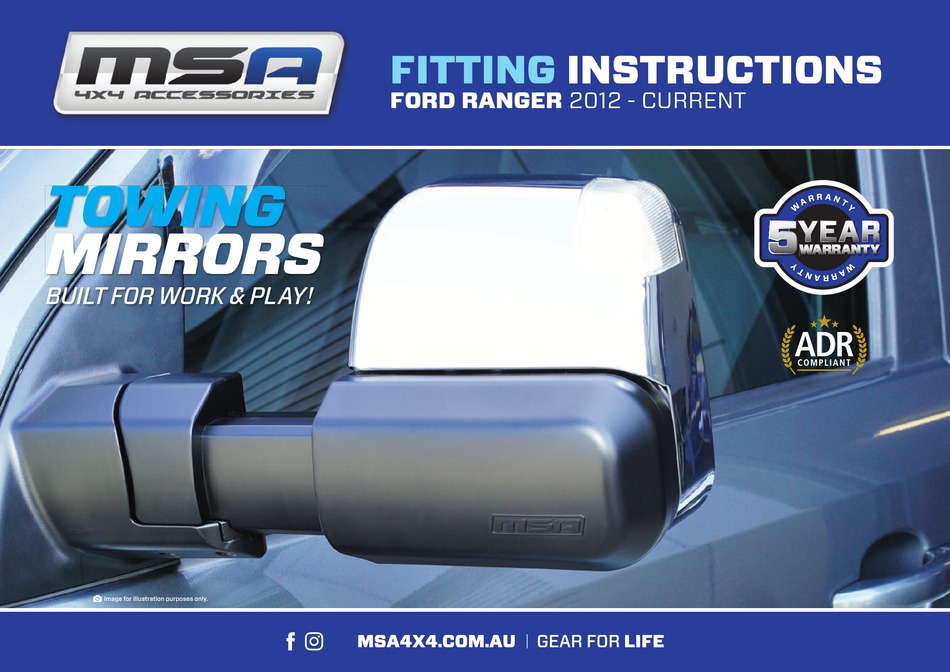

- Page 1 FITTING INSTRUCTIONS FORD RANGER 2012 - CURRENT TOWING MIRRORS BUILT FOR WORK & PLAY!

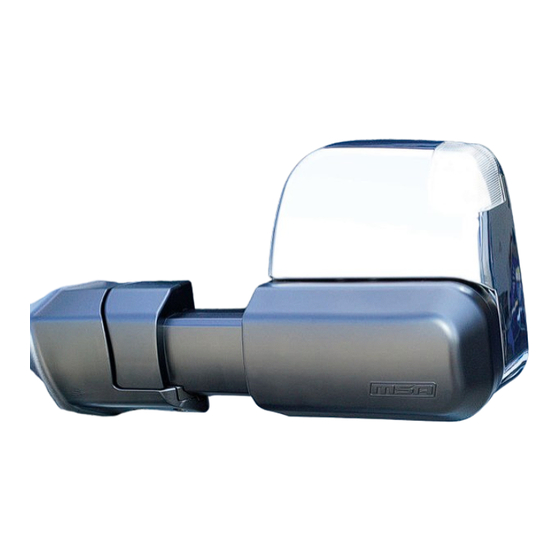

- Page 2 TOWING YOUR PURCHASE OF A MIRRORS QUALITY MSA 4X4 TOWING MIRROR! MSA 4X4 Towing Mirrors are simple to Getting Started: Here’s what comes inside the box: fit as they mount onto your vehicle door in the same position as your existing Left hand side mirror mirrors, using existing holes and wiring.
- Page 3 Here’s what you need to know before you install your new MSA 4X4 Towing Mirrors: MSA 4X4 Towing Mirrors do not o er certain original functions such as automatic fold in and out, and auto mirror dip when in reverse.
- Page 4 Retain the three original equipment bolts as you will require them to install the MSA 4X4 Towing Mirrors on this model. Please note: some aftermarket wind deflectors are a xed to the original mirrors and may need to be removed and re-fixed if they a ect the assembly process, these can be re-fixed once your mirror is on.
- Page 5 FORD RANGER TOWING MIRRORS 2012 - CURRENT STEP 3 Plug & Play The mirrors are supplied with a plug and play loom that will directly plug into the original one you have just disconnected, it will only go in one way. Please ensure this clicks firmly into place. Ensure that you run any excess in the wire in such a way that it doesn’t get caught up or damaged...
- Page 6 When rotating the mirror into the horizontal position, the mirror’s actuator automatically adapts, allowing you to retain the standard adjustments (up, down, side to side) from your vehicle’s standard mirror adjuster. Your new MSA 4X4 Towing Mirrors are now ready to enjoy! STANDARD DRIVING STANDARD DRIVING...
- Page 7 FORD RANGER TOWING MIRRORS 2012 - CURRENT - TOWING MIRROR DIMENSIONS Towing Extended Position 2500mm Standard Horizontal Position 2350mm Standard Driving Extended 2300mm Standard Driving Position 2150mm PLEASE NOTE All dimensions are taken from the widest part of the mirror body on that position.
- Page 8 fitment details where relevant. 5-year manufacturer’s warranty applies to the original purchaser only. If we determine that an MSA 4X4 Towing Mirror is defective in materials or workmanship during the 5-year Warranty, we will either repair or replace the product. Repair or replacement is solely at the discretion of MSA 4X4 Accessories Pty Ltd.
