Summary of Contents for Menards MasterForce 260-9515

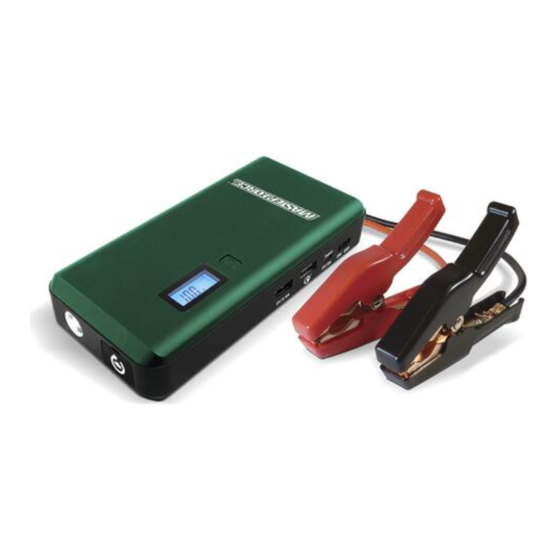

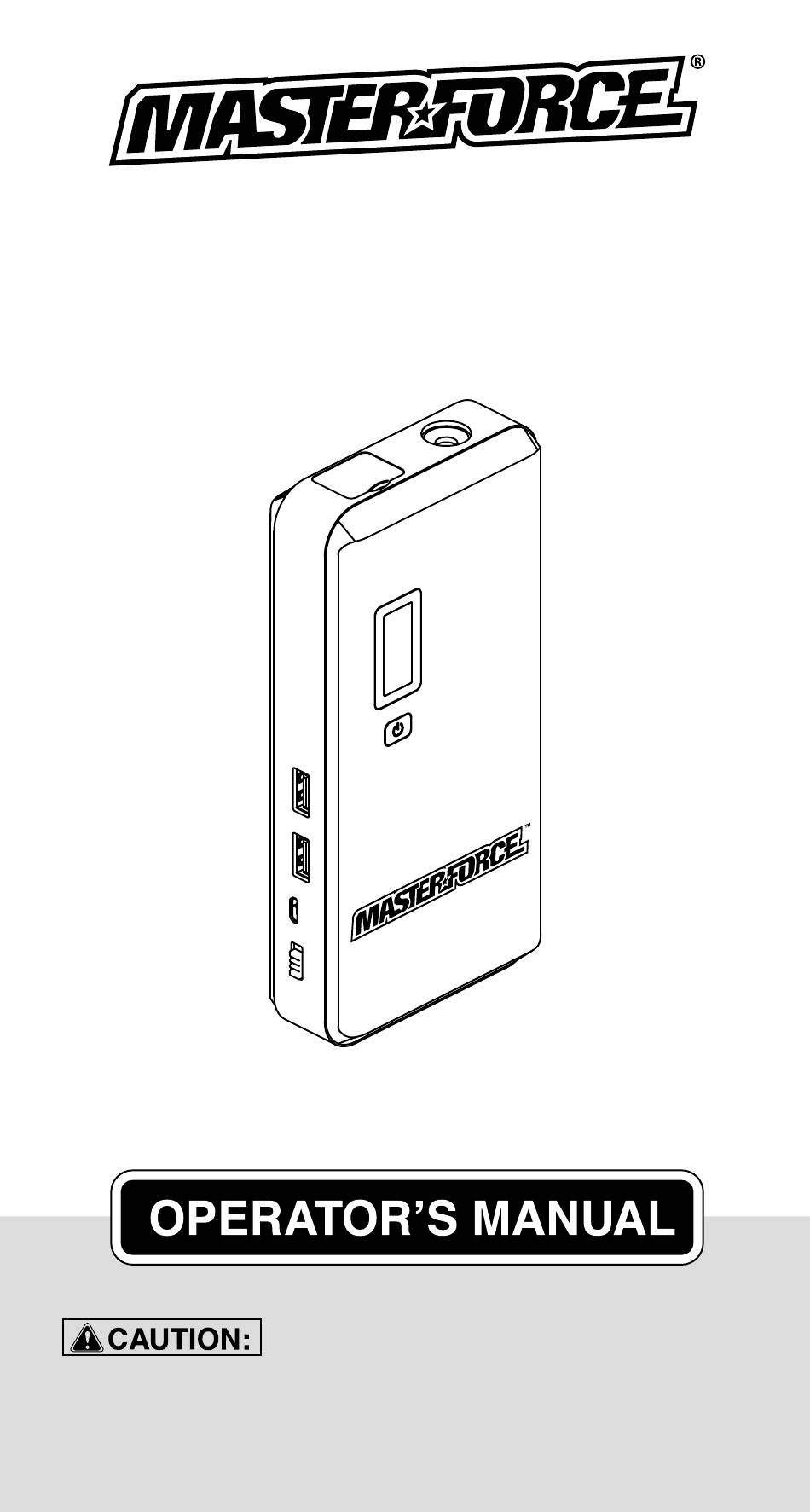

- Page 1 800 Peak Amp Lithium Ion Jump Starter and USB Power Source 260-9515 To Reduce The Risk Of Injury, User Must Read And Understand Operator’s Manual. Save These Instructions For Future Reference. 0099002166-00...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Symbols................. Page 3 Safety Information ..............Page 4 Important Safety Instructions ..........Page 5 Personal Precautions ............... Page 6 Preparing to Use the Unit ............Page 7 Follow These Steps When Connecting to a Battery ....Page 7 Features .................. -
Page 3: Safety Symbols
SAFETY SYMBOLS Some of the following symbols may be used on your jump starter. Please study them and learn their meaning. Proper interpretation of these symbols will allow better and safer operation of the jump starter. Symbol Name Designation/Explanation Volts Voltage Amperes Current... -
Page 4: Safety Information
SAFETY INFORMATION The purpose of safety symbols is to attract our atten- tion to possible dangers. The safety symbols, and the explanations with them, deserve your careful attention and understanding. The symbol warnings do not by themselves eliminate any danger. The instructions and warnings they give are no substitutes for proper acci- dent prevention measures. -
Page 5: Important Safety Instructions
1. IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS. WARNING – RISK OF EXPLOSIVE GASES. WORKING IN THE VICINITY OF A LEAD-ACID BATTERY IS DAN- GEROUS. BATTERIES GENERATE EXPLOSIVE GASES DURING NORMAL OPERATION. IT IS IMPORTANT THAT YOU FOLLOW THESE INSTRUCTIONS EACH TIME YOU USE THE UNIT. To reduce the risk of battery explosion, follow these instructions and those published by the battery manufacturer and the man- ufacturer of any equipment you intend to use in the vicinity of a... -
Page 6: Personal Precautions
2. PERSONAL PRECAUTIONS RISK OF EXPLOSIVE GASES. A SPARK NEAR THE BATTERY MAY CAUSE A BATTERY EXPLOSION. TO REDUCE THE RISK OF A SPARK NEAR THE BATTERY: 2.1 NEVER smoke or allow a spark or flame in the vicinity of a bat- tery or engine. -
Page 7: Preparing To Use The Unit
3. PREPARING TO USE THE UNIT RISK OF CONTACT WITH BATTERY ACID. BATTERY ACID IS A HIGHLY CORROSIVE SULFURIC ACID. 3.1 Make sure the area around the battery is well ventilated while the unit is in use. 3.2 Clean the battery terminals before using the jump starter. During cleaning, keep airborne corrosion from coming into contact with your eyes, nose and mouth. -
Page 8: Features
4.7 For a positive-grounded vehicle, connect the NEGATIVE (BLACK) clamp from the jump starter to the NEGATIVE (NEG, N, -) ungrounded post of the battery. Connect the POSITIVE (RED) clamp to the vehicle chassis or engine block away from the battery. Do not connect the clamp to the carbure- tor, fuel lines or sheet-metal body parts. -
Page 9: Specifications
6. SPECIFICATIONS Internal battery type ......Lithium ion polymer Capacity .............. 41.44 Wh USB output ............. 5V DC, 2.4A Quick Charge 3.0: 5V, 3A / 9V, 2A / 12V, 1.5A Jump start ........ 800A peak/400A cranking Charging Temperature......32 ° -122 ° F (0 ° -50 ° C) 7. -
Page 10: Operating Instructions
5. When the battery is fully charged, disconnect your charger from the outlet, and then remove the charging cable from the charger and the unit. Slide the ON/OFF switch to the OFF position, if you are not using the unit immediately. 9. - Page 11 NOTE: Cold weather may affect the performance of the jump starter’s lithium battery. If you hear only a click and the engine does not turn over, try the following: With the jump starter connected to the car battery and the green LED illuminated on the smart cable, turn on all lights and electrical accessories for one minute.
-
Page 12: Maintenance Instructions
USING THE LED LIGHT 1. Slide the ON/OFF switch to the ON position. 2. Hold down the display button for 3 seconds. 3. Once the LED light is on, press and release the display but- ton to cycle through the following modes: •... -
Page 13: Troubleshooting
12. TROUBLESHOOTING JUMP STARTER PROBLEM SOLUTION The jump starter’s display Make sure the unit is charged. will not turn on. Connect to a power source, to reset. Make sure the ON/OFF switch is set to the ON position. The thermometer The unit is too hot or cold. - Page 14 SMART CABLE LED AND ALARM BEHAVIOR BEHAVIOR REASON Green LED blinking; Red Cable is connected to battery LED off; no beep. only. Cable is connected to jump starter only. Green LED solid; Red Cable is connected correctly to LED off; no beep. both battery and jump starter.
-
Page 15: Warranty
MASTERFORCE™ product breaks or fails due to a defect in material or workmanship within three (3) years from the date of original purchase, simply bring the item with the original sales receipt back to your nearest MENARDS retail store. At its ®... - Page 16 © 2020 Menard, Inc., Eau Claire, WI 54703 03/2020...
