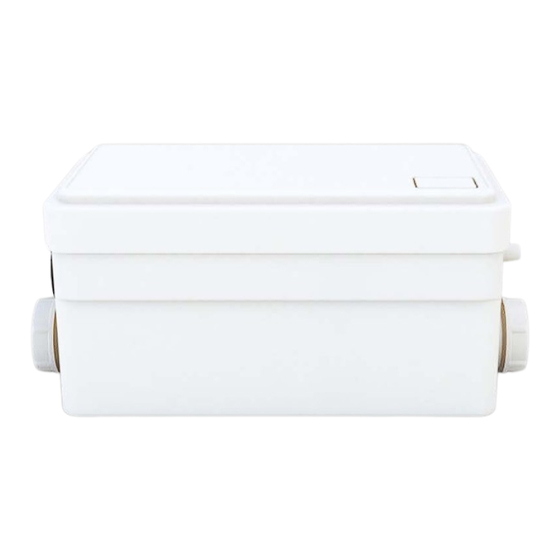

- Page 1 ADAPTABLE WASTE PUMP FOR SHOWER SHOWER PUMP SHOWER & BASIN WASTE PUMP Installation and Utilization Instructions...
- Page 2 HOMAC 250 Power: 250W Voltage: 220~240V /50Hz Horizontal discharge: 100M Vertical discharge: Max. Water temperature: 65’C Thermal protection: 90’C Max. flow rate: 120L /Min IP rate: IPX7 ② ③ ① ⑤ ④ ① Exigency Outlet ② Air Vent ③ Outlet φ23/28mm ④...
- Page 3 Fig1: Size Fig2: Spare parts...
- Page 4 Fig3: Equipment 1, Outlet check valve is necessary 2, Install an extra manual check valve for repair (Suggestion) 3, Lift the shower 11cm high, when you connect the side inlet 4, Using filter in shower & lavatory to reduce hair come into machine Fig4: Connection...
- Page 5 Fig5: Inlet cover (Cover the inlets for unused) Fig6: Fixation...
- Page 6 Fig7: Outlet (Check Valve 23/28mm) Discharge pipe insert the check valve is only 1~2CM, avoid too much insert Fig8: Pumping head...
- Page 7 Fig9: Flow Rate Fig10: Min Size below the shower is 160mm...
- Page 8 Fig11: angle We suggest to using 2pcs 45’ elbow to instead of 1pc 90’ elbow Fig12&13: Discharge Pipe connection...
-
Page 9: Installation
1. Warning -The appliance is only ready for use after installation. -The appliance must be supplied through a residual current device (RCD) having a rated residual operating current not exceeding 30mA. -If the supply cord is damaged, it must be replaced by the manufacture or its service agent or a similarly qualified person in order to avoid a hazard. -
Page 10: Warranty
This applies particularly when replacing power cord. 7. WARRANTY This HOMAC 250 appliance bears a 1 year warranty starting from date of purchase, subject to proper installation and use, in compliance set out in this notice 8. TROUBLE SHOOTING GUIDE... - Page 11 PROBLEM CAUSE SOLUTION Clogged drain pipe or Clean pipes and valves. Motor runs properly, but valve; Outlet valve is half pump does not drain water Check outlet valve closed Pump doesn’t start; Clogged ventilation duct Clean ventilation duct water doesn’t drain Power cut off.
-
Page 12: Maintenance
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal Manufactory: Ningbo Homac Electrical Appliance Co., Ltd Address: No.369, South of Dongshao, Jiangbei District, Ningbo, Zhejiang Province, China (315032)
