Vigitron OmniiCopper Vi27000 Series Installation Manual

Vi27004 4-Port
Single-Pair Ethernet & PoE Transmission Solution Installation Manual
The OmniiCopper™ Vi27000 Series is a revolutionary data transmission
solution that extends full-duplex High-Speed Ethernet and PoE over
Single-Pair Wire infrastructures. The Vi27000 is a transmitter that operates in
conjunction with 1-Port Vi27001 or 4-Port Vi27004 Receivers over virtually any
2 conductor wires reliably. The Vi2700X's unique transmission technology
eliminates the potential for cross talk, resulting in the perfect solution for
bundled cable runs that are used in many elevators and building
communication systems.
Up to 36W power can be provided from a PoE source at each port to eliminate
the need for a local power supply at the camera location. Vi27004 requires a
12VDC power supply to operate. The Vi27004 operates at the extended
temperature range -30°C to +50°C.
Installation cost savings, tested and proven design and performance go into
making the Vi27000 Series as the perfect solution for building CCTV wiring.
Important Safety Warning
- Read these instructions.
- Keep these instructions.
- Heed all warnings.
- Follow all instructions.
- Do not use this apparatus near water.
- Clean only with a dry cloth.
- Install in accordance with the manufacturer's instructions.
- This installation should be made by a qualified service person and should conform
to all local codes.
- DO NOT bundle low-voltage signals in the same conduit as high-voltage wiring.
- To reduce the risk of fire or electrical shock, do not expose these products to rain,
moisture, dripping or splashing.
- No objects filled with liquids, such as vases, shall be placed on Vigitron equipment.
- DO NOT install the unit in a place where the operating ambient temperature
exceeds 50°C.
- Make sure that the external power supply output voltage is in the recommended range.
- Do not install near any heat sources such as radiators, heat registers, stoves or
other apparatus (including DVRs) that produce heat.
- Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
- Only use attachments/accessories specified by the manufacturer.
- Unplug this apparatus during lightning storms or when unused for long periods of time.
- Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as a power supply cord or plug is
damaged, liquid has been spilled, or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
- The mains plug is used as the disconnect device and shall remain readily operable.
WARNING! - To reduce the risk of fire or electric shock, do not expose this
apparatus to rain or moisture. This apparatus shall not be exposed to dripping or
splashing and no objects filled with liquids, such as vases shall be placed on the
apparatus.
WARNING! - This apparatus is a Class I product. This product must be
connected to a mains socket outlet thru an AC to DC Power supply.
WARNING! - The mains plug is used as the disconnect device and shall
remain readily operable.
RISK OF ELECTRIC SHOCK
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK,
DO NOT REMOVE COVER. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
CAUTION
DO NOT OPEN
The Smart Choice for Transmission Solutions

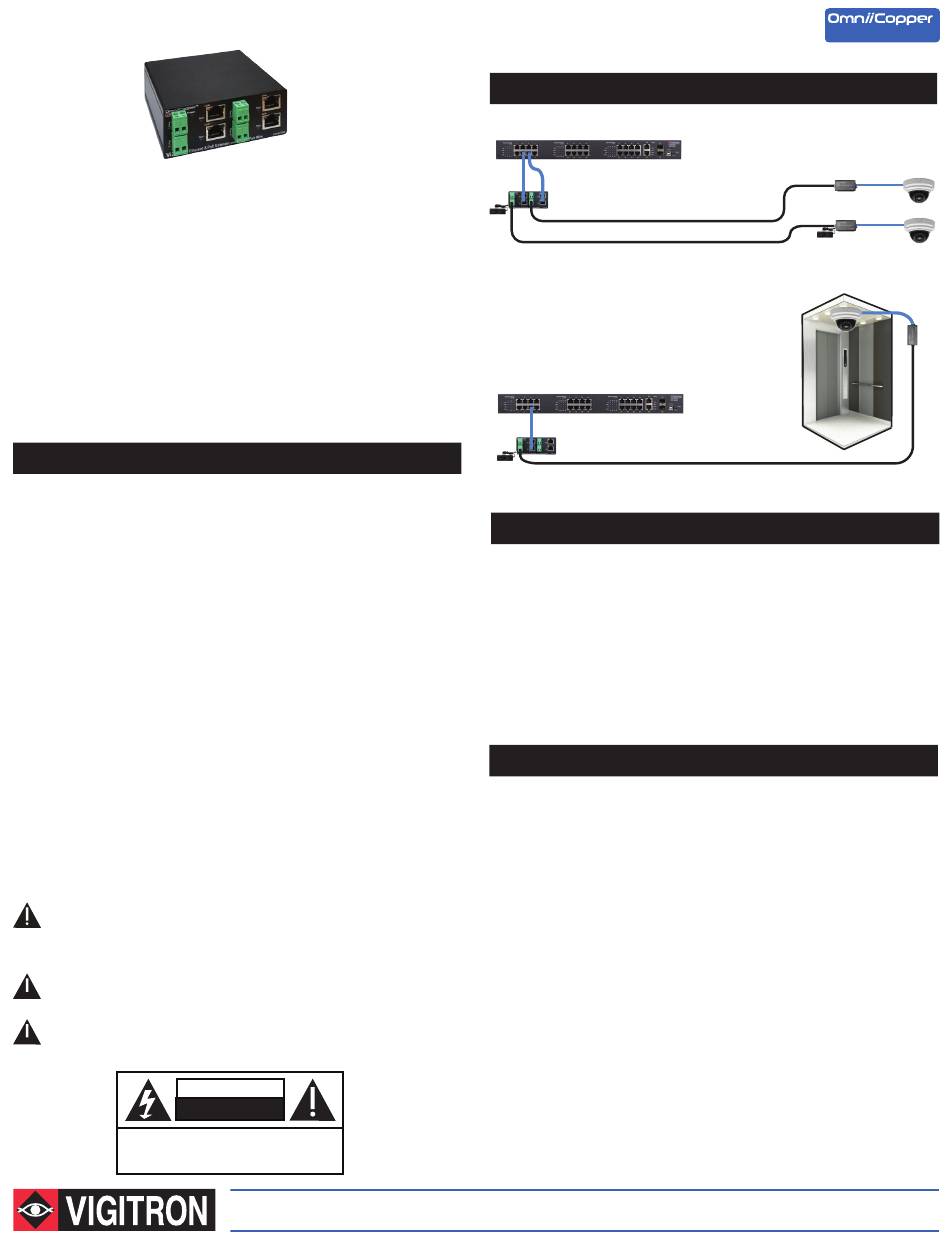

Application Drawing
Network Switch
Data + PoE
Cat5/6
Vi0014
Both the Vi27004 and the Vi27000 can use local power supplies to power themselves and provide PoE to
the IP camera .
PoE Switch
Data + PoE
Cat5/6
Vi0014
The Vi27000 series enables transmitting Ethernet and PoE over a wide veriaty of single pair wires and is
ideal for Elevator Applications.
IP Camera-end Installation
- Install the Vi27000 "Remote Unit" near the Camera end.
- Connect the IP camera RJ45 connector to the 10/100BaseT Ethernet port of
Vi27000 using a standard Cat5/6 cable of maximum 100 m .
- Connect one end of the long Single Pair Wire to the 2-pin Terminal block of
Vi27000. Make sure the Single Pair Wire polarity matches on the Vi27004 End.
The link LED on the 10/100 connector should be "ON" to indicate proper connection
between the camera and Vi27000.
The PoE LED on the 10/100 connector should be "ON" when PoE is used to power
up the camera. The Status LED on the Single Pair Wire side should be "ON" and
flashing to indicate proper connection.
Ethernet Switch-end Installation
- Install the Vi27004 "Local Unit" near the network switch.
- Power up the Vi27004 with 12VDC Power Supply.
- Connect the RJ45 connector of the Ethernet switch to the 10/100BaseT Ethernet
ports of Vi27004 using a standard Cat5/6 cable of maximum 100 m.
- Connect one end of the long Single Pair Wire to the to the 2-pin Terminal block of
Vi27004. Make sure the Single-Pair Wire polarity matches to the Vi27000 End.
The link LED on the 10/100 Ethernet connector should be "ON" and flashing to
indicate proper connection between the switch and Vi27004 port. Also the Status
LED on the Single-Pair Wire side should be "ON" and flashing to indicate proper
connection.
- The Vi27004 passes through PoE from PoE Switch to power the Vi27000 and
camera.
- If a PSE source such as a PoE network switch is not available, external power
must be provided to the Vi27000 by a local power supply.
CAUTION:
If an external power supply adaptor is plugged into Vi27000 or Vi27001, the unit will
not use or pass thru PoE power from the PoE switch. It will use the power from the
plugged in DC power supply.
The Power LED on the Vi27004 only indicates that the Vi27004 is powered up, it
does not indicate the PoE is outputing. To View PoE Status, view indication on the
PoE switch on or PoE LED indicator on the Vi27000.
Ethernet Extenders
Vi27000
Data +
Cat5/6
Data + PoE Vi27000
Data +
Single Pair Wire
Cat5/6
Data + PoE
Vi1120/Vi0017
Single Pair Wire
Elevator
Data + PoE
Single Pair Wire
www.vigitron.com
TM
PoE Camera
PoE
PoE Camera
PoE
Vi27000
