HOW TO INSTALL YOUR GoBidet™ 2003

Tools Needed:

Pliers, Slot Head Screwdriver, 5/64" Allen Wrench, Adjustable Wrench or 7/16", 1/2", 9/16", 5/8", 3/4" Combination Wrenches as
required, Silicone Grease
Note: To avoid damaging nish during installation of this product, do not use Adjustable Pliers for assembly. Use Adjustable
Wrench or a Combination Wrench as needed.
Remove Toilet Seat. Fig 1.
1. Turn o water supply to toilet at Shut-o Valve (A).
. 2 F u l h s i o t t e l o t e m p y t l l a w t a . r e
3. Disconnect Water Supply Line (B) from the toilet tank.
Note: Water may leak from toilet when water supply line is removed.
4. Loosen Nuts holding Toilet Seat (C) in place on underside of bowl.
Remove Toilet Seat and clean top of toilet bowl. Save seat mounting
parts for re-use.

GoBidet Assembly

Note: If installing on a one-piece toilet, rst swap
the location of the Plastic Cap (D) and Mounting
Bracket Bushing (E). Tighten Bushing with Pliers.
If installing on a two-piece toilet, this step is not
necessary.
. 5 U n h t e r d a H x e N t u F ( f ) o r m M o u t n n i g
Bushing and remove Plastic Washer (G) and
Rubber Washer (H).
6. Loosen Hex Nut (I) securing Mounting Bracket
(J) to Water Control Valve (K).
7. Place Mounting Bracket (J) on Toilet with Spray
Arm Assembly (L) positioned over the bowl rim.
Insert Mounting Bracket Bushing (E) into left
hole. On the underside of bowl, install the
Rubber Washer (H) rst. Place the Plastic
Washer (G) on next and secure with Hex Nut (F).
Do not tighten completely.
8. Fully extend Spray Arm (M) by pulling Control
Knob (N). Adjust placement of Mounting Bracket
(J) and Water Control Valve (K) so Spray Head
(O) is in center of bowl. Now retract Spray Arm
(M) fully by pulling Control Knob (N) backward
to ensure it rests just beneath left side of bowl
rim. When positioned correctly, tighten Hex Nut
(I) that secures the Mounting Bracket (J) to the
Water Control Valve (K).
9. Fully tighten Hex Nut (F) on underside of
Mounting Bracket (J). Do not overtighten.
Placement on Toilet
U
L
K
M
O
Spray Arm Operation
Retract

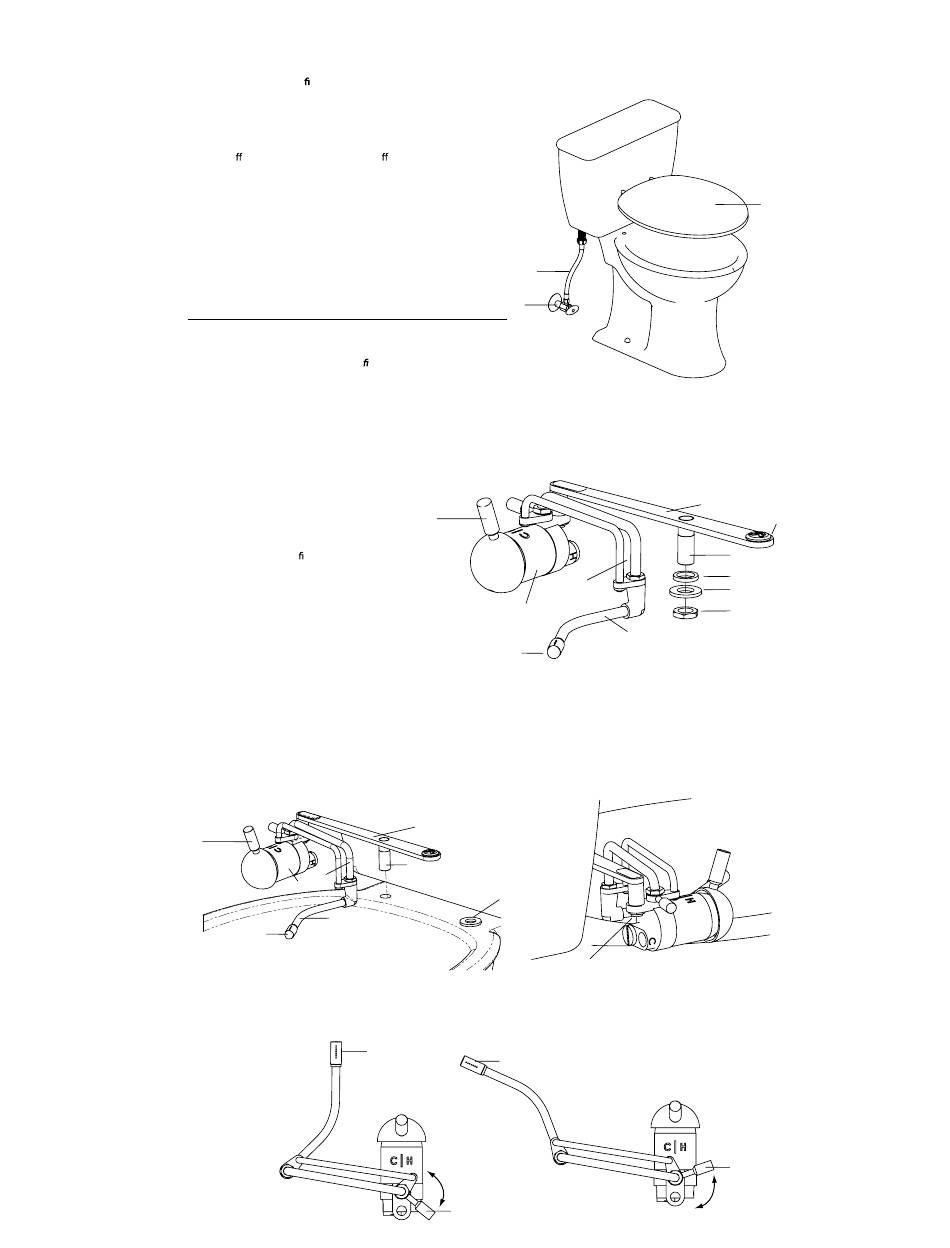

FIG. 1
B
A
B a r k c t e
Product Detail
U
K
O
Side View
J
E
T
O
O
N
J
E
H
L
G
F
M
I
N
Extend
C
D
