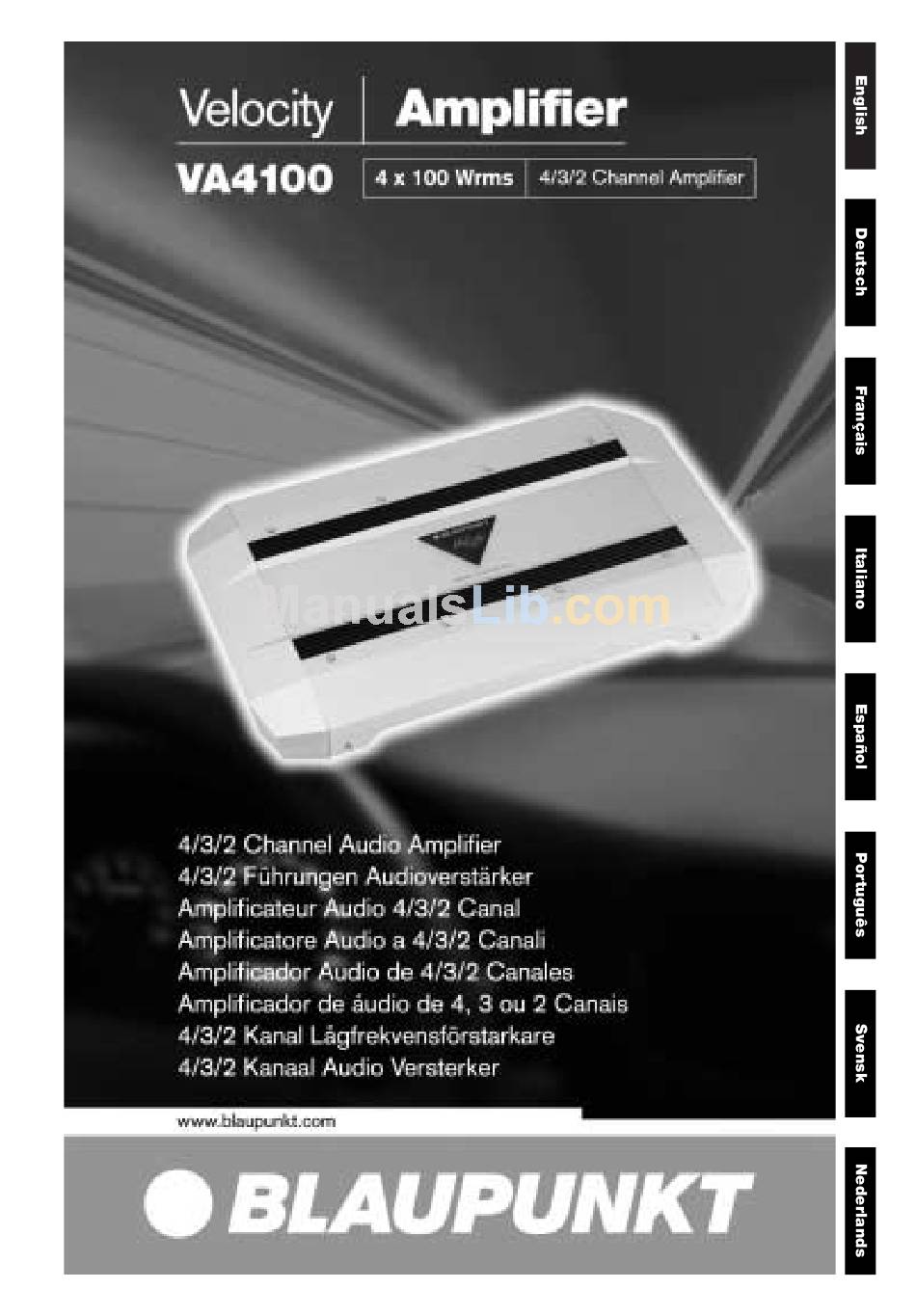

- Page 1 www.midwestelectronics.com...
- Page 2 Thermal shutoff temperature (average heat-sink temp) This information is subject to change without notice! • Änderungen vorbehalten! • Sous réserve de modifications! Modifiche riservate! • Wijzigingen voorbehouden! • Ändringar förbehålles! • Modificaciones reservadas! • Sob reserva de alterações! - VA4100, 4/3/2 C VA4100 4/3/2 15.1x9.1x2.4 inches (382x231x60mm)
- Page 3 & M SSEMBLY OUNTING – 2 – www.midwestelectronics.com...
-
Page 4: Benefits & Features
MOST important to us are the concerns with safety and the installation process. Since our Blaupunkt retail dealers have the tools and experience for an optimized and safe installation, we always recommend they do the final vehicle integration. But, should you choose to install these products yourself, please take the time to read this manual completely and abide by all precautions. -
Page 5: Safety Concerns
AFETY ONCERNS We always recommend you have your Blaupunkt amplifiers professionally installed but the installation process is often so easy that the average consumer can achieve success with little trouble. Regardless of the person installing, you should be sure to review the following points before proceeding with the installation: •... -
Page 6: System Planning
YSTEM LANNING Before wiring up an audio system that may not achieve the sound quality you want, be sure to choose a system concept that fits your listening requirements. Basic systems, a receiver with internal 4x20 watts and 4 coax speakers, are adequate for many listeners. - Page 7 EHICLE IRING VEHICLE FUSING For safety purposes, a high current fuse (or circuit breaker) MUST be installed in line with the amplifiers(s) immediately at the battery to prevent vehicle damage should the battery line in advertently shorted to the vehicle chassis. The chart at the right shows the recommended master fuse sizes for an average audio system with noted “rms”...
- Page 8 & C ONNECTIONS ONTROLS REMOTE GAIN CONTROL JACK REMOTE GAIN CONTROL JACK - For connecting the remote gain control (included). This allows you to adjust the gain while seated in the vehicle with the system operating. FRONT & REAR CHANNEL CONTROLS GAIN CONTROL - The gain control allows for a range of 0.3-6Volts input.
- Page 9 & C ONNECTIONS ONTROLS SPEAKER OUTPUTS SPEAKER OUTPUTS - The amplifier is connected to appropriate impedance speakers via these leads. It is IMPERATIVE that these leads NOT be connected or touch the vehicle chassis in any way or the amplifier will be damaged.
-
Page 10: System Configuration
YSTEM ONFIGURATION Full-Range Full-Range 5 Channel Combo (2ch HP + 3ch passive Multi-Mode) The multi-mode system is a “poor-man’s” satellite/subwoofer sys- tem. This amplifier is able to drive speakers in stereo mode and at the same time drive low frequencies to a dedicated subwoofer speaker. - Page 11 YSTEM ONFIGURATION Full-Range Full-Range Full-Range Full-Range 3 Channel Combo (2ch HP + 1ch Subwoofer) Like the four channel systems as shown above, the benefits, and performance trade-offs are similar. But, this system configuration offers an additional advan- tage with the internal high-pass crossover. This crossover reduces the bass to the front speakers thus protecting them under heavy low frequency loads.
-
Page 12: Shooting Guide
ROUBLE SHOOTING Below is a basic trouble-shooting guide to assist in seeking out and correcting a problem that may occur in the installation process. Although lengthy, this chart cannot address every single problem possible but mainly the ones most common. SYMPTOM No power (power light not on) Power but no sound (power light is on) -
Page 13: Technical Support
NITED TATES Robert Bosch Corporation (for products sold in the United States) warrants new Blaupunkt car audio products distributed in the United States through authorized Blaupunkt dealers, or which are imported as original vehicle equipment by the automobile manufacturer, to be free from defects in material and workmanship, in accordance with the following terms and conditions:... - Page 14 01-576 9473 01-10098830 02-369 6464 40 2085 023-565 6331 66-817 157 01-2185 11111 916-467952 08-7501810 01-8471650 02-6130 0514 01-324 8756 022-8771260 0212-3460040 708-681-7188 http://www.blaupunktusa.com +604-6413 Blaupunkt GmbH Robert Bosch Strasse 200 D-31139 Hildesheim Germany www.blaupunkt.com www.midwestelectronics.com VENTE Printed in China...
