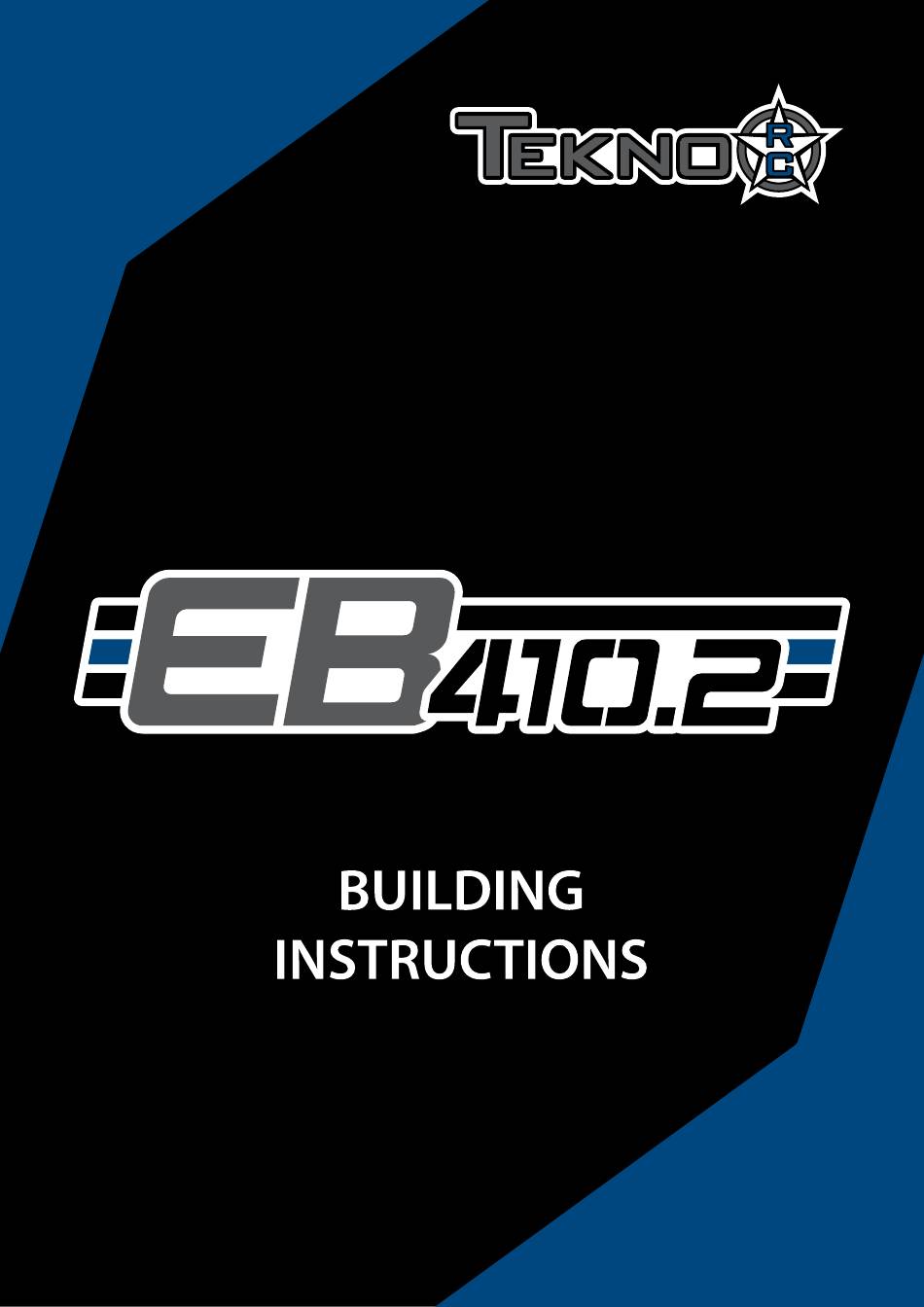

Tekno EB410.2 Building Instructions

Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading

Related Manuals for Tekno EB410.2

Summary of Contents for Tekno EB410.2

  • Page 2 Body reamer Disclaimer: Tekno RC is not responsible or liable for any property or personal damage, loss, or injury incurred as a result of using this product. This kit is meant for use by persons 14 years of age or older and in the strict con nes of a legally permitted RC track or facility.
  • Page 3 Bag A TKR6514 Center Di erential (overview) TKR5144 TKR6550 TKR6511 TKR6514 TKR6515 TKR6514 TKR6513X TKR6550 TKR6517 TKR6522B TKR1303 x4 TKR6514 *TKR6670 (Option) Step Step TKR6550 TKR6550 TKR6517 TKR6514 TKR6513X TKR5144 Grease Note: Apply grease to the groove where the o-ring is placed as well as the o-ring itself.
  • Page 4 Bag B TKR6514 Front and Rear Di erential (overview) TKR5144 TKR6550 TKR6511 TKR6514 TKR6515 TKR6514 TKR6513X TKR6550 TKR6517 TKR6512 TKR1303 x4 TKR6514 TKR6550 Step Step TKR6550 Repeat for rear di Repeat for rear di TKR6517 TKR6514 TKR5144 TKR6513X Grease Note: Apply grease to the groove where the o-ring is placed as well as the o-ring itself.
  • Page 5 Bag C TKR1402 TKR6526C Step Steering/Bulkhead Assembly TKR1402 TKR6526C TKR6526C TKR6207 TKRBB040725 Step TKR1221 Thread TKRBB040725 Lock TKRBB040725 TKR6208 Note: Use a 5.5mm wrench (TKR1119) here to assist in TKR6627 tightening this assembly. TKRBB040725 TKR6208 TKR1221 TKR6627 TKR1602 TKR6597 Step Step Thread TKRBB040725...
  • Page 6 Bag D Rear Bulkhead Assembly TKR1403 Step Step Thread Lock TKR6590 TKR1602 TKR6597 TKRBB05114 TKR6551 TKR6519B TKRBB05114 Note: Screw the TKR1402’s all the way down, then back o 1/4 turn. Step TKRBB10154 TKR6519B Grease TKR1402 TKR1301 M2.5x6mm Flat Head Screw TKR1402 TKR1402 M3x8mm Button Head Screw...

  • Page 7: Rear End Assembly

    Bag E Rear End TKR6610 - 1.7mm Below options sold separately. Assembly *TKR6610 - 1.5mm *TKR6610 - 1.6mm *TKR6610- 1.8mm *TKR6610- 1.9mm Step (Option) TKR6547 TKR1601 Note: Do not over-tighten. (”C” Block) Step Stock Position Note: With center dot TKR6590 TKR1463 inserts, Anti-Squat = 2°...
  • Page 8 Bag F Rear Hub/CVA Assembly Grease TKR6856 TKR1221 TKR6212 TKR6576 TKR6270R TKR6572B TKR6576 Step TKR6856 TKR6856 Thread Lock TKRBB10154 TKR1211 TKRBB06124 TKR6576 TKR1229 TKR5571M *TKR5571A *TKR5571 TKR1609 *TKR1654X (+1mm) Note: These screws *TKR1654 (+1mm) HUB INSERTS only need to be (Option) snug.
  • Page 9 Bag F Rear Camber Links TKR6253B Left/Right x 2pcs Build Tip: Use some grease or Chapstick Step on the threads to help prevent “pop-o ” when TKR6250 adjustments are being made. Build Note: Hold the turnbuckle stationary with pliers and push the rod end hard onto the turnbuckle while turning at the same time.
  • Page 10 Bag F Rear Tower/Wing Mount Step TKR1411 Step TKR6546B TKR1411 TKR1405 TKR6538 TKR1405 M3x14mm Button Head Screw TKR1411 M3x25mm Button Head Screw Stock position is 3/D...
  • Page 11 Bag G Front End TKR6611 - 1.4mm Below options sold separately. *TKR6611 - 1.0mm Assembly *TKR6611 - 1.1mm *TKR6611- 1.2mm *TKR6611- 1.3mm TKR6547 (Option) Step TKR1601 Note: Do not over-tighten. (”B” Block) TKR1409 TKR6541HD TKR6544B Stock Position Note: With center dot down inserts, Kick Up = 10°...
  • Page 12 Bag H Note: These optional steering stop screws and washers are Step included in case you are Front Spindle/CVA Assembly expreiencing erratic steering TKR1221 control. They provide a mechanical limit to the steering throw and make the car easier to drive by greatly Grease improving the consistency of the steering.
  • Page 13 Bag I TKR6253B TKR6253B Steering Links TKR6253B TKR6253B TKR6252 Left Right TKR6252 Right Left TKR6252 TKR6252 Build Tip: Use some grease or TKR6253 TKR6253 Chapstick on the threads to help prevent “pop-o ” when TKR6253B TKR6253B adjustments are being made. Build Note: Hold the turnbuckle stationary Step with pliers and push the rod end hard onto the...
  • Page 14 Bag I Front Camber Plate/Tower TKR1211 Step TKR6527B TKR1211 TKR6681 TKR6527B Note: Always press Step on with T logo visible. TKR1409 x4pcs TKR1403 TKR1201 M3 Lock Nut Black TKR1403 M3x10mm Button Head Screw TKR1405 M3x14mm Button Head Screw TKR6208 M3x8mm Ball Stud Stock position is 2/A...
  • Page 15 Bag J A Block Inset Front/Center Assembly Step BLOCK BLOCK Note: It is nessesary to slightly loosen both screws holding the A block in place before attaching the front clip to the chassis. This is due to the fact that the A block is now TKR6501B keyed into the front of the chassis.
  • Page 16 Bag J TKR6634 Center/Rear Assembly TKR1402 TKR6634 Step TKRBB10154 Thread TKR6634 TKRBB10154 Lock *TKR6635C (Option) TKR6600 Step Use with Use with Use with No Riser Step 1mm Riser 2mm Riser (stock setting) TKR1211 TKR6538 Same / Reversed Note: Use both rear braces for the least chassis flex.
  • Page 17 Bag K Step Step Step Front Shock Assembly Thread Lock Refer to filling Step TKR1245 instructions on Note: Do not page 19 during over-tighten this step. TKR6705B *TKR6731 *TKR6732 TKR6780 *TKR6735 *TKR6736 *TKR6737 TKR6712 Note: 1.2mm *TKR6738 *TKR6712A piston with (Option) (Option) writing up.

  • Page 18: Rear Shock Assembly

    Bag L Step Step Step Rear Shock Thread Assembly Lock Refer to filling TKR1245 Step instructions on Note: Do not page 19 during over-tighten this step. TKR6780 TKR6705B *TKR6731 TKR6712 *TKR6732 *TKR6712A *TKR6735 (Option) *TKR6736 *TKR6737 Note: 1.3mm *TKR6738 piston with (Option) writing up.
  • Page 19 Shock Filling Instructions For both front and rear shocks We've found it's easiest to complete steps 1 & 2 on each shock before moving on to step 3. By the time you've finished step 2 on the last shock, the first one will be ready for step 3. Step 1.

  • Page 20: Final Assembly

    IMPORTANT RADIO SETUP TIPS, MUST READ: TKR6586 The Tekno RC EB410.2 is highly tunable, but can be very aggressive depending on track conditions and tires used. Note: This shim only To help with this, we recommend that you are well informed...
  • Page 21 Bag M Final Assembly TKR1523 TKR1221 Thread Lock TKR1523 TKR1221 Note: MESH SHOULD BE AS TIGHT AS POSSIBLE WITHOUT BINDING. Step Note: Refer to page 20 or 28 for a recommended pinion Pinion/Set screw chart to best suit your motor. (not included) Thread Lock...
  • Page 22 Bag M Note: Servo horn orientation. Step Final Assembly Actual Size 3.00mm TKR6526B *TKR6563A (Option) TKR6207 Note: Always press on with T logo visible. TKR6253B TKR5238 Step TKR6253B Note: Only this angled link Step can be installed both ways. TKR5126 TKR1601 Cap Head Screw (not included)
  • Page 23 Bag N Final Assembly TKR6538 Step TKR6634 *TKR6598C (Option) TKR1321 TKR1403 TKR1403 TKR1403 TKR1402 Thread Lock Step TKR6634 TKR1321 *TKR6635C TKR5230 M3x6mm Flat Head Screw (Option) TKR1402 M3x8mm Button Head Screw TKR1403 M3x10mm Button Head Screw TKR5230 M3x18 Threaded Rod Bag O WING OPTIONS Wing...
  • Page 24 Bag O TKR6686 Body/Tires TKR6686 Step TKR6686 Thumb Screw Assembly Step TKR6586 TKR6280 *TKR6503C (Option) TKR5125 Wheels/Tires (not included) BATTERY INSTALLATION TKR6274 TKR6274 TKR6608 Step Note: For hook and loop tape placement. Look for indentations on the side walls of the body. TKR1235 Body Clip TKR1235...
  • Page 25 Bag P Step TKR1403 Optional Tall Servo Mounting Note: From Bag M Note: TKR1221 Steering servo (not included) Servo horn orientation. Note: We recommend using TKR6526 Step a servo with at least *TKR6563A 180 oz/in torque and metal (Option) gears. Running less than our recommended rating will increase the chance of TKR6207...
  • Page 26 TKR6252 - Turnbuckle (M3 thread, 40mm length, 4mm adjustment, 2pcs) TKR6780 - Shock Cap Bushings (requires TKR6527B, EB/ET410, 4pcs) TKR6253B - Rod End Set (turnbuckles, sway bar, steering, EB410.2) TKR6787 - Shock Spring Set (front, 1.3x7.75, 3.85lb/in, 45mm, red) TKR6270R - Stub Axles (rear, hardened steel, EB410, 2pcs) TKR6793 - Shock Spring Set (rear, 1.2x9.38, 2.20lb/in, 53mm, pink)

  • Page 27: Setup Information

    Set Up Information The purpose of making adjustments is to make the car go faster around the track, or to make it more controllable, or both if possible. A car that's easier to drive should produce lower, more consistent lap times. It will also inspire more confidence in the driver, which is always good when nerves start getting the best of you.
  • Page 28 7.5T 20/81 tooth 21/81 tooth 13-14/53 tooth 13-14/53 tooth moving the pinion gear. Tekno RC is not responsible for 8.5T 21/81 tooth 22/81 tooth 14/53 tooth 14-15/53 tooth damage done to your electronic equipment or gears due 10.5T...

  • Page 29: Radio Information

    Please read thoroughly The Tekno RC EB410 is highly tunable, but can be very aggressive depending on track conditions and tires used. To help with this, we recommend that you are well informed about setting up your Steering End Points (EPA), Dual Rate (D/R), Exponential Curves, and Servo Speed.
  • Page 30 Maintenance: Performing regular maintenance will greatly improve your on track consistency and also extend the life of your vehicle. Going through critical areas of the vehicle regularly will also allow you to find possible issues before they become a problem that may cost you a race. Follow the guidelines below for maximum performance. Bearing Maintenance: Bearings should always be smooth and free in order to preform their function.
  • Page 31 Box Stock INDOOR OUTDOOR SMALL MEDIUM LARGE MEDIUM HIGH SMOOTH BUMPY RUTTED LOOSE / LOAMY HARD PACKED BLUE GROOVE CLAY ASTRO DUSTY MUDDY FRONT CENTER REAR -2° RIDE HEIGHT: CAMBER: 15° 0° CASTER: SWEEP: 10° .5° out PINION / SPUR: KICK UP: TOE: 1.4mm...
  • Page 32 Tekno RC 10755 Scripps Poway Pkwy #598 San Diego CA 92131...
