Compass Manufacturing International / Louisville, KY /
(Includes standard size BBC3642, BBC3945, BBC4248, BBc4851)
Parts with Universal Box
2 -Side Panels; 1 Left and 1 Right
1 -Bottom Panel
1 -Back Panel
1 -Shelf
1 -Toe Kick
4 -Wood Corner Brackets
1 -Hardware Package
1 – Drawer Slide set (1-left & 1 Right) for Single Door Base Cabinets
Note: Drawer Slide Set will contain, 2 - Drawer Slides, 2 - Orange Color Plastic Drawer Clips with screws,
2 – Plastic Grey Color Rear Brackets with screws.
Parts with Face Frame and Door
1 - Face Frame with Door/s & Drawer Fronts
1 - Drawer Front
1 - Drawer Bottom
1 - Individually Packed Dovetail Drawer sets.
(Note: Each set of these should contain 1 - Left side, 1 - Right side and 1 – Back. The Front of the Drawer Box is mounted to the
back of the Drawer Front and will be in the Face Frame and Door carton)
1) Identify all parts.
2) You should have 2 qty boxes for your base cabinet; one carton containing the Face Frame and Door/s attached. The
drawer front/s, will be packaged in the Face Frame box with the front of the drawer box attached. The other carton
contains the cabinet body parts.
3) Make sure to have a clean clear area to work with so the cabinet does not get damaged.

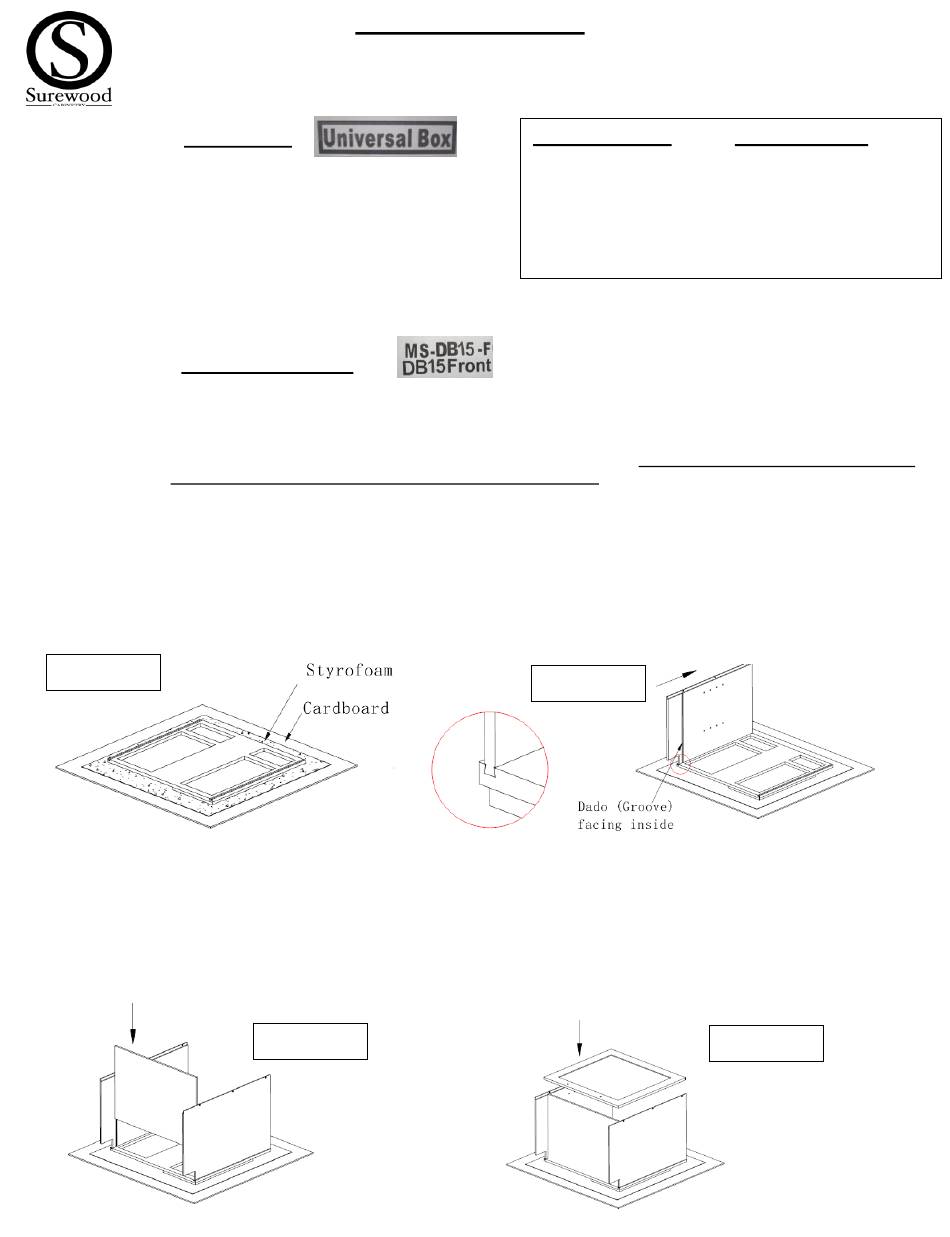

4) Lay Face Frame of Cabinet face down on a soft smooth protected surface (carpet, foam, rubber mat)(Diagram A).
Diagram A
5) Slide Right Side panel in left pre-cut slot on face frame making sure that the pre-cut slots on the panel are facing
towards inside of the cabinet (Diagram B). (Note: placing a thin bead of wood glue in the grooves before sliding panels
in will help with the sturdiness and assembly of cabinets. If the panels are a little too tight to slide freely, use a rubber
mallet to gently tap into place.)
6) Repeat step 5 with Left side panel.
7) Slide base bottom panel into pre-cut slot provided by side panels (Diagram C).
Surewood Cabinets
Base Blind Corner Cabinet- Assembly Instructions
Diagram C
www.cmiproduct.com
Tools Required
Philips Screwdriver
Wood/Rubber Mallet
Hard Wood Block
Utility Knife
Fine Sandpaper 240 grit
Tape Measure
Square
Small wood chips or toothpicks
Diagram B
Tools Optional
Power Drill/Screw driver
Power Pin gun w/ 5/8" pins
Square
Diagram D
