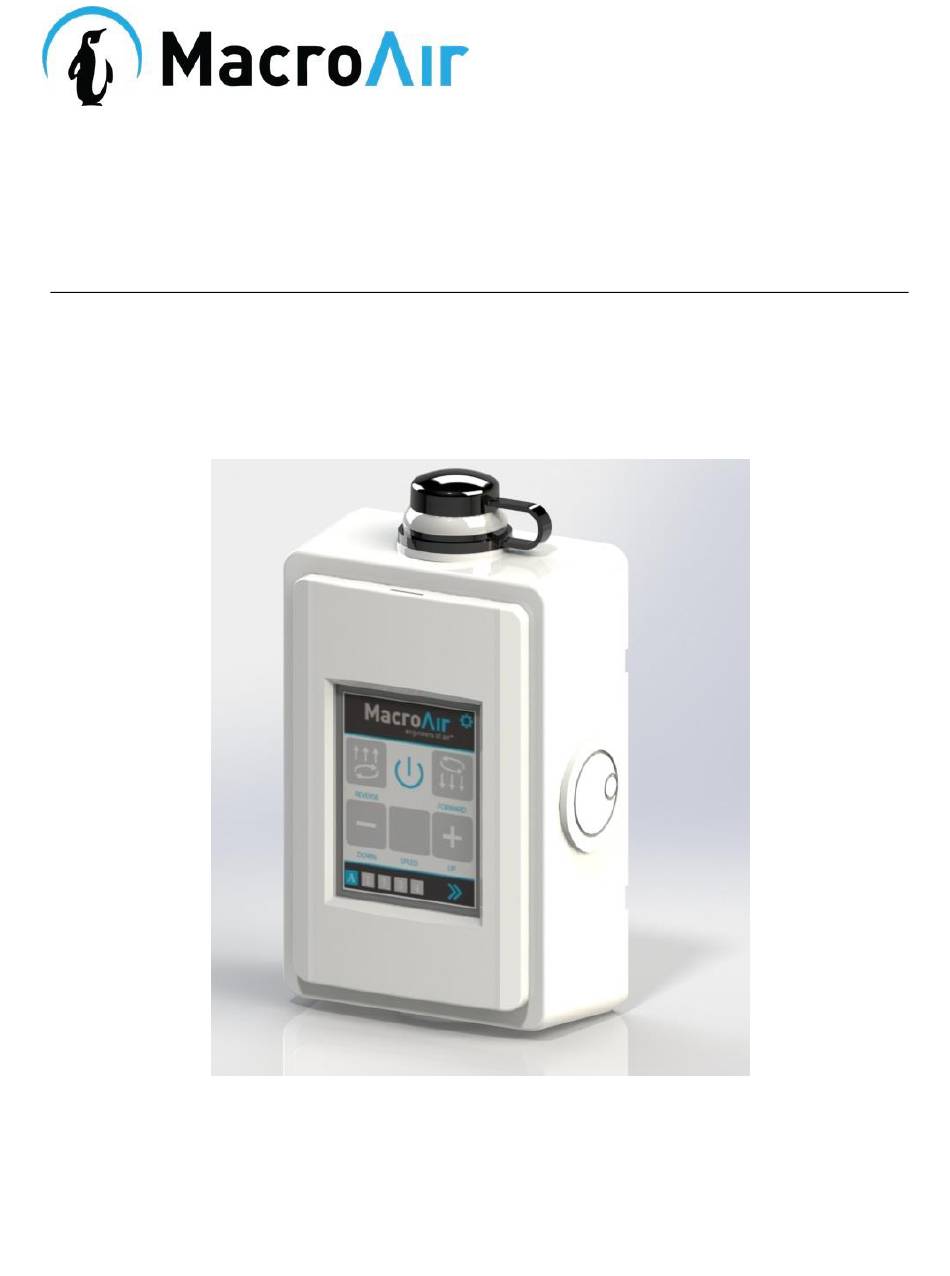

- Page 1 Operation Manual Controller 4...
-
Page 3: Table Of Contents
Fan Diameter Screen ............ 22 Mkey Screen (Certain Fan Models) ......23 Information Warranty ..............24 Technical Support ............. 25 © 2020 MacroAir Technologies Toll Free: 866 668 3247 Fax: 909 890 2313 www.macroairfans.com Controller 4 Operation Manual 90-30027-00 Rev A-01 Date: 032720... -
Page 4: Caution & Safety, Electrical Guidelines
Refer to appropriate portions of this manual for other important requirements. Failure to follow these guidelines will void the manufacturer’s warranty. © 2020 MacroAir Technologies Toll Free: 866 668 3247 Fax: 909 890 2313 www.macroairfans.com Controller 4 Operation Manual 90-30027-00 Rev A-01 Date: 032720... - Page 5 ATTENTION: Qualified Technicians. All electrical troubleshooting and repair must be done by a qualified technician and meet all applicable codes. © 2020 MacroAir Technologies Toll Free: 866 668 3247 Fax: 909 890 2313 www.macroairfans.com Controller 4 Operation Manual 90-30027-00 Rev A-01 Date: 032720...
-
Page 6: Fan Network Ordering
Introduction Fan Network Ordering Type of controller: Controller 4, which can network up to 4 fans. MacroAir customizes fans to operate in a network by: • Addressing the fans. • Providing bean crimps for T-splices (AVD 370). • Supplying an additional 15ft [4.57m] piece of CAT5e (AVD 370). -
Page 7: Controller Dimensions
Introduction Controller Dimensions LCD SCREEN ENCLOSURE © 2020 MacroAir Technologies Toll Free: 866 668 3247 Fax: 909 890 2313 www.macroairfans.com Controller 4 Operation Manual 90-30027-00 Rev A-01 Date: 032720... -
Page 8: Network Wiring Requirements, Daisy Chain
Daisy Chain Network MacroAir fans must be connected in one single line, referred to in this document as a “daisy chain”. The characteristics of a proper daisy chain are: one beginning (Controller 4) and one end (last fan or control panel). -
Page 9: Network Wiring Configurations
Improper Wiring Configuration End of Line x3 End of Line x8 Proper Wiring Configuration ONE End of Line © 2020 MacroAir Technologies Toll Free: 866 668 3247 Fax: 909 890 2313 www.macroairfans.com Controller 4 Operation Manual 90-30027-00 Rev A-01 Date: 032720... -
Page 10: Network Excess Cable
ALWAYS AVOID SHARP BENDS OF THE CABLE. © 2020 MacroAir Technologies Toll Free: 866 668 3247 Fax: 909 890 2313 www.macroairfans.com Controller 4 Operation Manual 90-30027-00 Rev A-01 Date: 032720... -
Page 11: Avd 370 Rj45 Wiring Instructions
AVD 370 fans with RJ45 ports on the board are wired in T-splices. Each T-splice will consist of 3 CAT5e cables. A properly wired T-splice network is shown below: Typical T-Splice of CAT5e Network Cable © 2020 MacroAir Technologies Toll Free: 866 668 3247 Fax: 909 890 2313 www.macroairfans.com Controller 4 Operation Manual 90-30027-00 Rev A-01 Date: 032720... -
Page 12: T-Splice Connection Method For Adv 370 Fans
3. Strip approximately 1/2in [1.3 cm] off each color wire leaving the bare copper exposed. 4. Twist the 3 wires of same color from each CAT5e together. © 2020 MacroAir Technologies Toll Free: 866 668 3247 Fax: 909 890 2313 www.macroairfans.com... - Page 13 Then fold them back and tape them up with electrical tape to clean up your wiring. © 2020 MacroAir Technologies Toll Free: 866 668 3247 Fax: 909 890 2313 www.macroairfans.com Controller 4 Operation Manual 90-30027-00 Rev A-01 Date: 032720...
-
Page 14: Fan Wiring Instructions
A properly wired daisy chain network will have the CAT5e network ran per the below illustration. © 2020 MacroAir Technologies Toll Free: 866 668 3247 Fax: 909 890 2313 www.macroairfans.com Controller 4 Operation Manual 90-30027-00 Rev A-01 Date: 032720... -
Page 15: Mixed Network Wiring Instructions
Note: When installing new fans in an existing mixed network, contact Technical Support for assistance with networking your fans. © 2020 MacroAir Technologies Toll Free: 866 668 3247 Fax: 909 890 2313 www.macroairfans.com Controller 4 Operation Manual 90-30027-00 Rev A-01 Date: 032720... -
Page 16: Temp/Humidity Sensor Installation (Optional)
3. Please refer to the wiring diagram. See pages 10-11 of this manual for proper stripping and bean crimping of wires. © 2020 MacroAir Technologies Toll Free: 866 668 3247 Fax: 909 890 2313 www.macroairfans.com Controller 4 Operation Manual 90-30027-00 Rev A-01 Date: 032720... -
Page 17: Controller 4 Screen Setup
4. AVD3, 550, 780, and X series fans REQUIRE the blade size to be programmed in order to function correctly. The blade size is set via the “Fan Diameter” screen. Once the size is programmed into every AVD3, 550, 780, and X series fan on the network, the fans can be operated normally. -
Page 18: Screen Flow
Fan Select ......Page 19 Fan Address ......Page 20 Motor Calibration ....Page 21 Fan Diameter ......Page 22 Mkey ........Page 23 © 2020 MacroAir Technologies Toll Free: 866 668 3247 Fax: 909 890 2313 www.macroairfans.com Controller 4 Operation Manual 90-30027-00 Rev A-01 Date: 032720... -
Page 19: Home Screen
A, 1, 2, 3, 4: Clicking this button will toggle between “A” and the individually numbered fans. “A” indicates control of all the fans on the network. Numbers 1, 2, 3, 4 … etc. indicates individual control of the fan selected. -
Page 20: Temperature/Humidity Setpoint Screen
Change Units: Changes the Temperature Reading and Set Point between Fahrenheit and Celsius. Right Arrow: Navigates to the Fan Select screen. © 2020 MacroAir Technologies Toll Free: 866 668 3247 Fax: 909 890 2313 www.macroairfans.com Controller 4 Operation Manual 90-30027-00 Rev A-01 Date: 032720... -
Page 21: Fan Select Screen
* If fans are connected, but not displayed on the Fan Select screen, check your CAT5 connections. Call technical support if you require further assistance. © 2020 MacroAir Technologies Toll Free: 866 668 3247 Fax: 909 890 2313 www.macroairfans.com Controller 4 Operation Manual 90-30027-00 Rev A-01 Date: 032720... -
Page 22: Fan Address Screen
Reset Drive: Resets the drive. Address changes do not take effect until the drive is reset. Left Arrow: Takes you to Fan Select screen. Right Arrow: Takes you to Motor Calibration screen. © 2020 MacroAir Technologies Toll Free: 866 668 3247 Fax: 909 890 2313 www.macroairfans.com Controller 4 Operation Manual 90-30027-00 Rev A-01 Date: 032720... -
Page 23: Motor Calibration Screen
Left Arrow: Takes you to the Address screen. Right Arrow: Takes you to the Fan Diameter screen. © 2020 MacroAir Technologies Toll Free: 866 668 3247 Fax: 909 890 2313 www.macroairfans.com Controller 4 Operation Manual 90-30027-00 Rev A-01 Date: 032720... -
Page 24: Fan Diameter Screen
Plus/Minus: Adjust the diameter up and down. For AVD3 fans, adjust the diameter past 24 to access 3-blade fan settings. Left Arrow: Takes you to the Motor Calibration screen. © 2020 MacroAir Technologies Toll Free: 866 668 3247 Fax: 909 890 2313 www.macroairfans.com Controller 4 Operation Manual 90-30027-00 Rev A-01 Date: 032720... -
Page 25: Mkey Screen (Certain Fan Models)
MacroAir. Number pad: Technical support will issue you with a 4-digit number once you provide the Mkey. The 4-digit code can be typed in using the number pad. -
Page 26: Warranty
1 "Standard Electrical" means any common electrical component that is utilized across more than one fan line will assume the higher warranty period. 2 "Operate properly" applies only to mechanical, electrical, and structural systems of the product. © 2020 MacroAir Technologies Toll Free: 866 668 3247 Fax: 909 890 2313 www.macroairfans.com Controller 4 Operation Manual 90-30027-00 Rev A-01 Date: 032720... -
Page 27: Technical Support
For installation assistance, application questions, technical support & any other inquiries, please contact our Technical Support team at (866) 668-3247 option 2. © 2020 MacroAir Technologies Toll Free: 866 668 3247 Fax: 909 890 2313 www.macroairfans.com Controller 4 Operation Manual 90-30027-00 Rev A-01 Date: 032720... - Page 28 794 South Allen Street San Bernardino, CA 92408 (866) 668-3247 Macroairfans.com...
